Hello there,

I have a question in the following environment.

environment
・Application: CapTIvate Design
・Board used
- CPU board: CAPTIVATE-FR2676
- Metal electrode board: CAPTIVATE-METAL Rev D1
- Writing board: MSP430
・Development environment
- ccstudio 12.3.0

question

・It seems that the value is adjusted in the middle when the force is gradually applied, but which parameter is related?

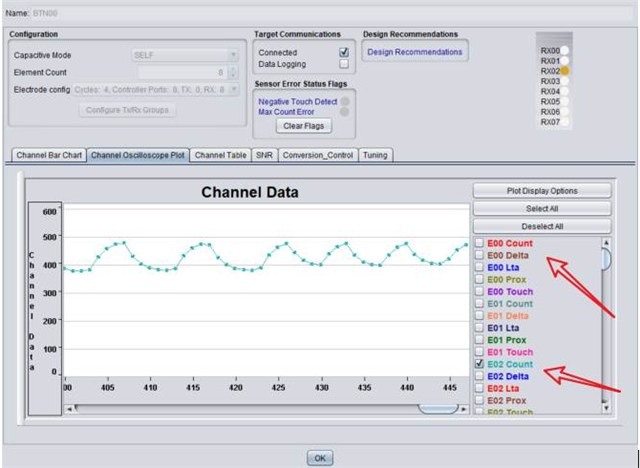

The image below is the raw data of Button output by CapTIvate.

ryuto

over 2 years ago

+1 Cash Hao11 over 2 years ago

TI__Mastermind 46435 points

Hi,

It seems like you are recording the count value on one pad. You can select what data you are logging in the GUI.

Best regards,

Cash Hao

0 ryuto ishikawa over 2 years ago in reply to Cash Hao11

Prodigy 210 points

Hello Cash Hao,

I output the raw data to CapTIvateDesignCenter based on the URL below.

>Stream Unformatted Data to the Design Center GUI

As you gradually increase the force, you will feel that the value has increased along the way.

Which parameters are influencing?

Best regard,

Ryuto

0 Cash Hao11 over 2 years ago in reply to ryuto ishikawa

TI__Mastermind 46435 points

Hi,

The increased value should be the Delta parameter. Delta = LTA - Count. When pressing the button, the LTA keeps the same, Count value goes down, the Delta goes up.

Best regards,

Cash Hao

0 ryuto ishikawa over 2 years ago in reply to Cash Hao11

Prodigy 210 points

Hello Cash Hao,

I output the raw data to CapTIvateDesignCenter based on the URL below.

>Stream Unformatted Data to the Design Center GUI

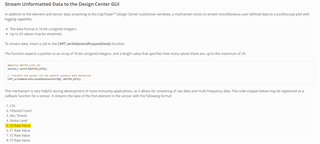

We recognize that 004 is F0 Raw Value.

Does it mean that F0 Raw Value is affected by delta?

If so, is RawData that parameter?

Best regard,

Ryuto

0 Cash Hao11 over 2 years ago in reply to ryuto ishikawa

TI__Mastermind 46435 points

Hi,

This raw value looks like the raw count data. When you touch the button, the capacitance on the button is larger. The count value will decrease and will cause the Delta goes larger.

In this figure, It looks like your hand is leaving the button. And causes the capacitance on the button is smaller. The counts value than goes higher.

Best regards,

Cash Hao

0 ryuto ishikawa over 2 years ago in reply to Cash Hao11

Prodigy 210 points

Hello Cash Hao,

>In this figure, It looks like your hand is leaving the button.

No.It's hand are not away from the button.

I don't understand it.

Best regards,

Cash Hao

0 Cash Hao11 over 2 years ago in reply to ryuto ishikawa

TI__Mastermind 46435 points

Hi,

So how do you get this screenshot?

Best regards,

Cash Hao

0 ryuto ishikawa over 2 years ago in reply to Cash Hao11

Prodigy 210 points

Hello Cash Hao,

1.Write the attached program with CCSTUDIO 12.3.0.

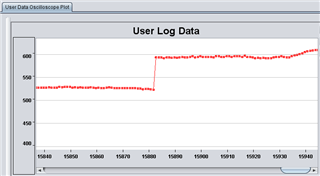

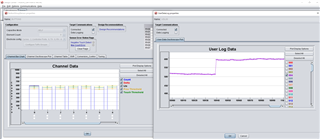

2.Check for 004 in User Log Data in CapTIvateDesignCenter.

3.004 will suddenly change if you continue to touch with a force that does not exceed ProxThreshold.

Best regards,

Ryuto
FR2676_CAPTIVATE-METAL.zip

0 Eason Zhou over 2 years ago in reply to ryuto ishikawa

TI__Mastermind 39705 points

Can you share the raw datalog data?

It seems you are output LTA to the GUI. I would assume a calibration happens. But I need to see the raw data, then I can know what cause the calibration.

0 ryuto ishikawa over 2 years ago in reply to Eason Zhou

Prodigy 210 points

Hello Eason Zhou

> Can you share the raw datalog data?

I'm sorry. I can't send raw datalog data because I don't have the board right now.

>I would assume a calibration happens.

yes. I have verified that the LTA is calibrated.

Does that mean the raw data is also calibrated?

If the raw data is also calibrated, is there a way to disable it?

Best regards,

Ryuto

+1 Eason Zhou over 2 years ago in reply to ryuto ishikawa

TI__Mastermind 39705 points

Yes, the raw data is also calibrated.

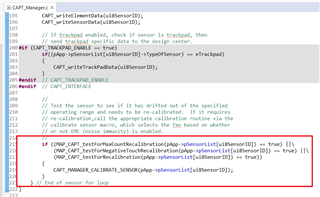

You can comment the code here to disable the calibration. But, I would suggest you to find why the calibration happens.

0 ryuto ishikawa over 2 years ago in reply to Eason Zhou

Prodigy 210 points

Hello Eason Zhou,

I got it. Thank you!

Best regards,

Ryuto
