PWM randomly flickering

Cesar,

If you look at the 5xx UG Timer_A chapter, you will see that it is generally suggested that you stop the timer before modifying the contents of its registers.

What I think is happening is a timing specific error where you are changing the CCRx registers on the fly and the module is not catching the proper change in the output before the CCRx register is modified.

Does that mean that such a looping-PWM can't be flawlessly programmed? I've tried stopping the timer (writing 0 to TA0CCR0), writing the new value to TA0CCR2 (increment it or decrement it), and then rewriting TA0CCR0s old value, which didn't work. The flickering is gone, but it doesn't continuously loop, it stays at 100% value for a few seconds, then loops til it reaches a 100% again, and so on.

Cesar,

I wouldn't go so far as to say that a looping PWM can't be flawlessly programmed.

The way that your code is written could also be causing some problems. You are using a SW loop to hold the timer configuration for only 50 MCLK cycles. You may want to consider changing your code to a more interrupt driven process.

Below is a quick example I wrote up with a G2553 LP. I think you should have more success if you structure your program this way.

//******************************************************************************
//  MSP430G2xx3 Demo - Timer_A, 200Hz PWM, Blink LED with PWM
//
//           MSP430G2xx3
//         ---------------
//     /|\|            XIN|-
//      | |               |
//      --|RST        XOUT|-
//        |               |
//        |           P1.2|-->TA0.1-->LED
//
//******************************************************************************

#include <msp430.h>

unsigned char direction = 1;                // 1 - increasing, 0 - decreasing

int main(void) {
  WDTCTL = WDTPW | WDTHOLD;                 // Stop WDT

  // MCLK = SMCLK = 1MHz
  if (CALBC1_1MHZ==0xFF)					// If calibration constant erased
  {
    while(1);                               // do not load, trap CPU!!
  }
  DCOCTL = 0;                               // Select lowest DCOx and MODx settings
  BCSCTL1 = CALBC1_1MHZ;                    // Set range
  DCOCTL = CALDCO_1MHZ;                     // Set DCO step + modulation

  // Set P1.2 for Timer Output
  P1DIR |= BIT2;                            // P1.2 Output
  P1SEL |= BIT2;                            // TA0.1 Function
  P1SEL2 &= ~BIT2;

  // Set up Timer for 200Hz period
  TACCTL0 = CCIE;                           // CCR0 interrupt
  TACCR0 = 5000;                            // 200Hz Period
  TACCTL1 = OUTMOD_7;                       // Reset/Set
  TACCR1 = 0;                               // 0% duty to start
  TACTL = TASSEL_2 | MC_1;                  // SMCLK, Up Mode

  __bis_SR_register(LPM0_bits + GIE);       // Enter LPM0 w/ interrupt
}

// Timer_A3 Interrupt Vector
#pragma vector=TIMER0_A0_VECTOR
__interrupt void Timer_A_CCR0(void) {
  TACTL &= ~MC_3;                           // Stop Timer
  if(direction) {
	TACCR1++;                               // Increase PWM duty cycle
	if(TACCR1 >= TACCR0) direction = 0;     // At limit, turn around
  }
  else {
	TACCR1--;                               // Decrease PWM duty cycle
	if(TACCR1 == 0) direction = 1;          // At limit, turn around
  }
  TACTL |= MC_1;                            // Start Timer
}

Cesar Triana said:

Does that mean that such a looping-PWM can't be flawlessly programmed?

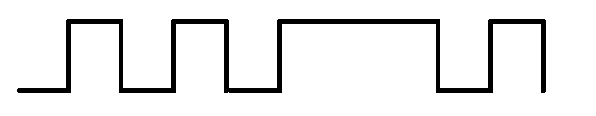

Imagine what happens when you have CCRx set to 50. Timer is at 40. Now you change CCRx to 30 to change the DC. The timer will count to 50 and nothing happens (because CCRx is no longer 50). and continues to count until it reaches CCR0. Then it begins with 0 again and when it comes to 30, the output changes. But between the old 50 and the new 30 cycle, you did get a full 100% cycle.
If you ensure that the timer count is either past the old CCRx value or below the new one, when you do the change, then all is well.
TimerB implements a latch mechanism that delays any changes to CCRx to the next timer overflow, so the problem doesn't happen if you use this feature.

I've implemented such a code (probably in a very naive way) and it did get better, but the flickering is sometimes still there. This time it doesn't seem like its a 100% DC when it flickers but rather some value between 50-70% DC.

#include <msp430.h>

volatile unsigned int i,guf=1;
/*
 * main.c
 */
int main(void) {

    WDTCTL = WDTPW | WDTHOLD;					// Stop watchdog timer
    P1DIR |= BIT2 + BIT3		;          		// P1.2, P1.3 output
    P1SEL |= BIT2 + BIT3;                      	// P1.2, P1.3 options select
    TA0CCR0 = 5275;                        	  	// PWM Period ~@200Hz
    TA0CCTL2 = OUTMOD_7;                     	// CCR1 reset/set
    TA0CTL = TASSEL_2 + MC_1 + TACLR;       	// SMCLK, up mode, clear TAR
    TA0CCR2 = 2650;                            	// CCR2 initial PWM duty cycle
    guf = 1;									// Starts going up


    for(;;){

    	if(guf && (TA0R>TA0CCR2 || TA0R<(TA0CCR2+1))){
    		TA0CCR2++;
    		for(i=10;i>0;i--);
    		if(TA0CCR2==TA0CCR0) guf=0;
    	}
    	else if (TA0R>TA0CCR2 || TA0R<(TA0CCR2+1)){
    		TA0CCR2--;
    		for(i=10;i>0;i--);
    		if(TA0CCR2==0) guf=1;
    	}

    }
}

One count isn’t enough for safety. Between your comparison and the CCR update, several MCLK cycles pass. And SMCLK=SMCLK. You should have at least 10-20 here.

However, when increasing CCR2, you don’t need to check. You have either already passed the trigger point or not. So this current cycle will be the new or the old DC. Only when decrementing CCR2, you might have a cycle that is neither one.

Besides this, your PWM cycle is 5276 timer ticks, but your for loop executes about every 100 MCLK cycles or less, so multiple times per PWM cycle.
