MSP430F6736 EVM for Metering BOM errors.

Stephan Marais

Other Parts Discussed in Thread: MSP430F6736

Hey,

looking at tidr105.pdf, which contains the Bill of Materials for EVM430-F6736 - MSP430F6736 EVM for Metering, there appears to be some components that are not visible. It appears that the excel fields were smaller than the data contained in in it, and thus some data was truncated.

Would it be possible to fix the pdf, or alternatively provide a excel document containing the same data.

The pdf in question was downloaded from, http://www.ti.com/lit/pdf/tidr105

Thanks in advance

over 12 years ago

0 Katie Pier over 12 years ago

TI__Guru* 83021 points

Hi Stephan,

Thank you for reporting this - I will notify the correct people to try to get this fixed.

Regards,

Katie

0 Katie Pier over 12 years ago in reply to Katie Pier

TI__Guru* 83021 points

Hi Stephan,

We are working to fix this online, but for now I have attached the correct version. 3527.EVM430-F6736 V2.4_bom.xls

Hope this helps,

-Katie

0 Raja Raghavan M over 11 years ago in reply to Katie Pier

Prodigy 130 points

Hi

I'm a master degree student, undergoing my project work on energy meter.
Thanks for your correct version of the BOM but still i need a clarification on Inductor L1,L2,L3,L4,L5,L6 values.
Can you help me in this regard.

Thanks & Regards,
Raja Raghavan.M

0 Katie Pier over 11 years ago in reply to Raja Raghavan M

TI__Guru* 83021 points

Hi Raja,

In the schematic, you can find that the part used is this: http://www.digikey.com/product-detail/en/BLM21BD121SN1D/490-1044-1-ND/584491?WT.srch=1&WT.medium=cpc&WT.mc_id=IQ72619287-VQ2-g-VQ6-53968145595-VQ15-1t1-VQ16-c

Hope this helps,

-Katie

0 Raja Raghavan M over 11 years ago in reply to Katie Pier

Prodigy 130 points

Hi Katie,

Thank you for your support, eventually i also found out that few other components are also mismatching between the schematic and your BOM.

If you can recheck by comparing both the files and send me the updated files, it will be of a great help.

Moreover I need to buy a TI 160 segment LCD which is used in EVM430-F6736 and I'm planning to buy Evaluation meter also, can you help me out in this regard.

Looking forward for your reply.

Thanks & Regards,

-Raja Raghavan.M

0 Katie Pier over 11 years ago in reply to Raja Raghavan M

TI__Guru* 83021 points

Hi Raja,

I have notified the metering team and they are working to update the BOM on the web, however this may take some time.

The EVM is available from the TI e-store:

I don't think that the exact same LCD from the evm is available separately for purchase anywhere as this is a custom LCD. Usually people choose their own display for their end application to meet their custom requirements.

Regards,

Katie

0 Raja Raghavan M over 11 years ago in reply to Katie Pier

Prodigy 130 points

Hi Katie,

Thank you for your spontaneous response, I will be happy if you send me the link of the updated BOM as early as possible since it will help me to carry forward my project work.

I need the exact custom LCD which is used by TI in EVM430-F6736 - MSP430F6736 for Metering.

I'm ready to place an order against your custom LCD or if you can send me a few samples, it would be of a great help.

Thanks & Regards,

-Raja Raghavan.M

0 Katie Pier over 11 years ago in reply to Raja Raghavan M

TI__Guru* 83021 points

Raja Raghavan M said:

I need the exact custom LCD which is used by TI in EVM430-F6736 - MSP430F6736 for Metering.

I'm ready to place an order against your custom LCD or if you can send me a few samples, it would be of a great help.

I'm sorry, but there simply isn't a way to do this. I'm unfortunately not going to be able to help you here.

However you should be able to order any number of other segmented LCD displays on the web with similar segment layout (it's pretty standard) and be able to use these with minimal porting effort. I hope this will meet your needs, and I'm sorry that I cannot help more.

-Katie

0 Raja Raghavan M over 11 years ago in reply to Katie Pier

Prodigy 130 points

Hi Katie,

I'm developing an energy meter by taking EVM430-F6736 - MSP430F6736 as a reference meter along with the help of your schematic diagrams and BOM.

Since I'm following exactly your reference meter, I have fabricated the PCB layout form your Gerber files.

Now I hope you can understand my importance for your custom LCD.

Kindly suggest me some other LCD models or links which will suit for the energy meter.

Please share me the updated BOM and other latest design files related to your EVM430-F6736 energy meter.

Apparently I find out that the image of energy meter in your online store and the image of same meter(page-16) in your Application Report is not matching. I have attached the links below for your reference.

1) TI Store - store.ti.com/EVM430-F6736-EVM430-F6736-MSP430F6736-EVM-for-Metering-P4621.aspx

2) Application Report - www.ti.com/.../slaa517c.pdf

I just wanted to know which meter I will be getting after placing an order.

Thanks & Regards,

-Raja Raghavan.M

0 Katie Pier over 11 years ago in reply to Raja Raghavan M

TI__Guru* 83021 points

Hi Raja,

Those two links/images (the estore and the one in the app note) are for the same kit - the kit you receive will work with all associated code etc from the app note, so do not worry.

For the LCD, I understand this is important to you, but there simply is not a way for me to get you the custom LCD as I mentioned before. I can't really recommend one either - what I'd suggest is that you go look and try to find a 4-mux LCD that appears to have similar digits/segments as the one on the EVM. I don't have any suggestion of a specific one for you. At least you will also have the LCD on the kit that you order.

Regards,
Katie

0 Raja Raghavan M over 11 years ago in reply to Katie Pier

Prodigy 130 points

Hi Katie,

I have attached the exact images for your reference, if your compare both you can understand my query.

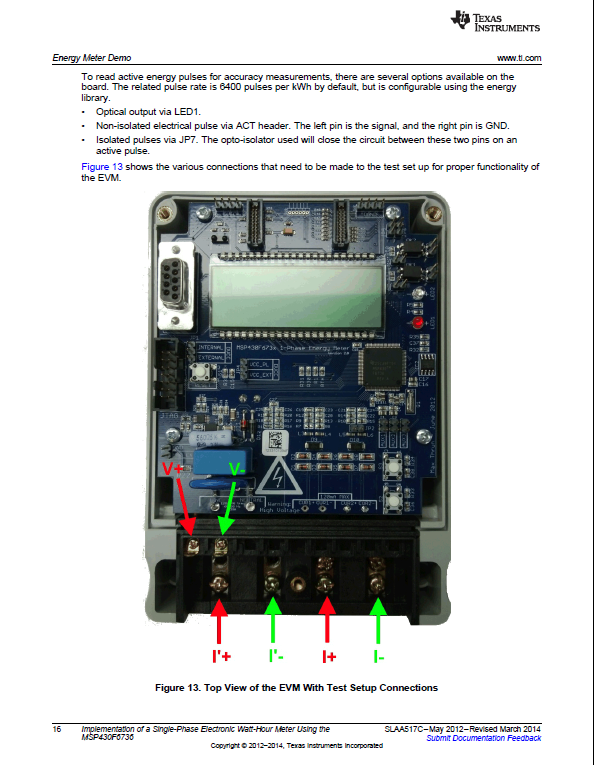

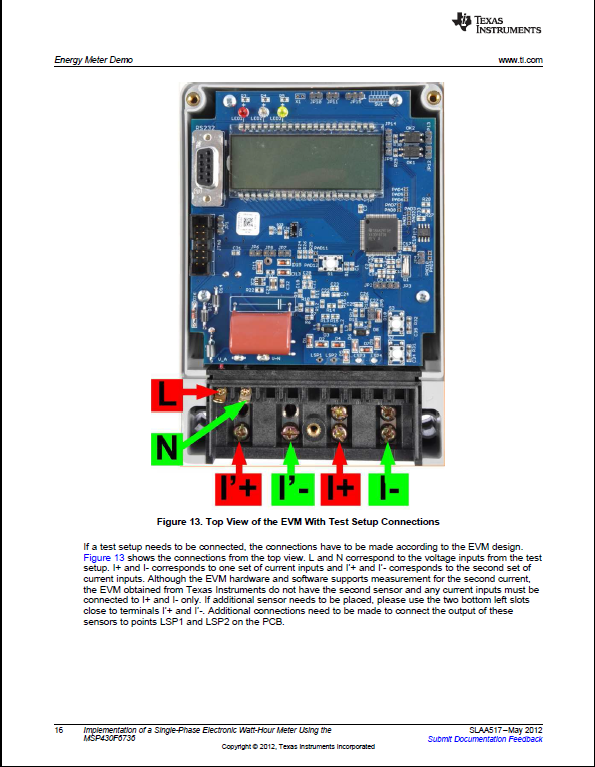

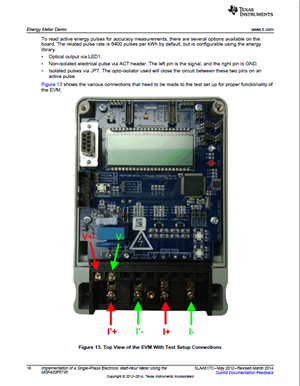

The first image is taken from the latest App report and other image is from your old App report.

Now check your TI store and your website link below

1) https://store.ti.com/EVM430-F6736-EVM430-F6736-MSP430F6736-EVM-for-Metering-P4621.aspx

2) http://www.ti.com/tool/EVM430-F6736 T

The Product image in both websites are only matching the second picture which looks like previous version.

Kindly cross check the images and let me know which version I will be getting after my order.

Thanks & Regards,

-Raja Raghavan.M

0 Katie Pier over 11 years ago in reply to Raja Raghavan M

TI__Guru* 83021 points

I asked someone and they said you'll get the top image in your post - but that it doesn't matter, either version will work correctly with provided code etc.
-Katie

0 Raja Raghavan M over 11 years ago in reply to Katie Pier

Prodigy 130 points

Hi Katie,

Thank you so much for your kind help and support, I will place my order in a couple of days.

Now I need your favor to get the latest updated BOM for the energy meter which I have already requested earlier.

Actually I have edited and corrected the BOM by taking the Schematic Diagrams as reference, so either you get in touch with the metering team and request them them to cross check and give a confirmation whether I can go forward with the same or I will wait for their final BOM.

Since I'm already running short of time, I have to develop the same meter and compare it with your standard meter, then I have to add some additional features and produce it as a prototype, later the meter will undergo calibration,testing and validation which should result as an End-Product.

So your active support and help in this regard is highly appreciable.

Here is the edited BOM 3527.EVM430-F6736 V2.4_bom Edited.xls

Thanks & Regards,

-Raja Raghavan.M

0 Katie Pier over 11 years ago in reply to Raja Raghavan M

TI__Guru* 83021 points

Hi Raja,

I had someone on the team check your edited BOM and they think it looks fine, so you should be good to go. We are still working to get the BOM updated on the website - I am sorry that this is taking some time.

Regards,

Katie

0 Raja Raghavan M over 11 years ago in reply to Katie Pier

Prodigy 130 points

Hi Katie,

Happy to hear that I'm good to go,so with your support I'm taking my project forward.

Hope everything will go fine.

If possible do let me know if you update the BOM and other design details in near future.

Thank you so much for your kind help.

Regards,

-Raja Raghavan.M

0 Raja Raghavan M over 11 years ago in reply to Raja Raghavan M

Prodigy 130 points

Hi Katie,

I need a small favor, can you suggest any add-on kits or development tools or products which will support EVM430-F6736 for research purpose.

Regards,

-Raja Raghavan.M

0 Katie Pier over 11 years ago in reply to Raja Raghavan M

TI__Guru* 83021 points

Hi Raja,

Of course no one is going to know your research needs better than yourself, and I'm not honestly a metering expert myself so I would not know the best thing to recommend. We have links to MSP430 kits evms and tools here: so that would probably be a good place for you to look and see what you might want. You may also want to search and see what else we have to offer on our TI Designs page: www.ti.com/tidesigns as I know there are a number of different metering and metering-related designs there. Perhaps this might be useful for you, and best of luck.

Regards,

Katie

0 Tanushree Kakani over 11 years ago in reply to Raja Raghavan M

Prodigy 50 points

Hello,
I would like to know how you converted the gerber files to the board layout? If it is okay with you can you share the board file?

0 Wan Mohd Khidhir Abdul Aziz over 10 years ago in reply to Katie Pier

Prodigy 135 points

Hi Katie

Can you attach the latest BOM version

Thanks
regards
Wan
