Fixing the boards (mounting holes)

Marcelo Correa

Prodigy 50 points

Other Parts Discussed in Thread: MSP-EXP430F5529LP, EK-TM4C1294XL

Hi there,

I've noticed there aren't any mounting holes in the boards.

Any way to mount then in a box? or in a base?

regards

Marcelo

over 11 years ago

old_cow_yellow over 11 years ago

Guru 58965 points

I do not know what board you are talking about. But that does not matter. There are many board without mounting holes. They all can be used as is without a box or a base. They all can be put into a box snugly or loosely. They can be fitted on a jig too.

Marcelo Correa over 11 years ago in reply to old_cow_yellow

Prodigy 50 points

Hi there,
Thanks for your fast answer.
I talking about all launchpads!
Any solution in fixing them?
A jig could be a solution.
Any products?
I don't think everybody only use them around the desk??!!

regards,
Marcelo

old_cow_yellow over 11 years ago in reply to Marcelo Correa

Guru 58965 points

MSP-EXP430F5529LP has 4 mounting holes wider then other LP and Booster.

old_cow_yellow over 11 years ago in reply to Marcelo Correa

Guru 58965 points

EK-TM4C1294XL is also called a LaunchPad. It has 3 mounting holes.

Dennis Eichmann over 11 years ago

Guru 74080 points

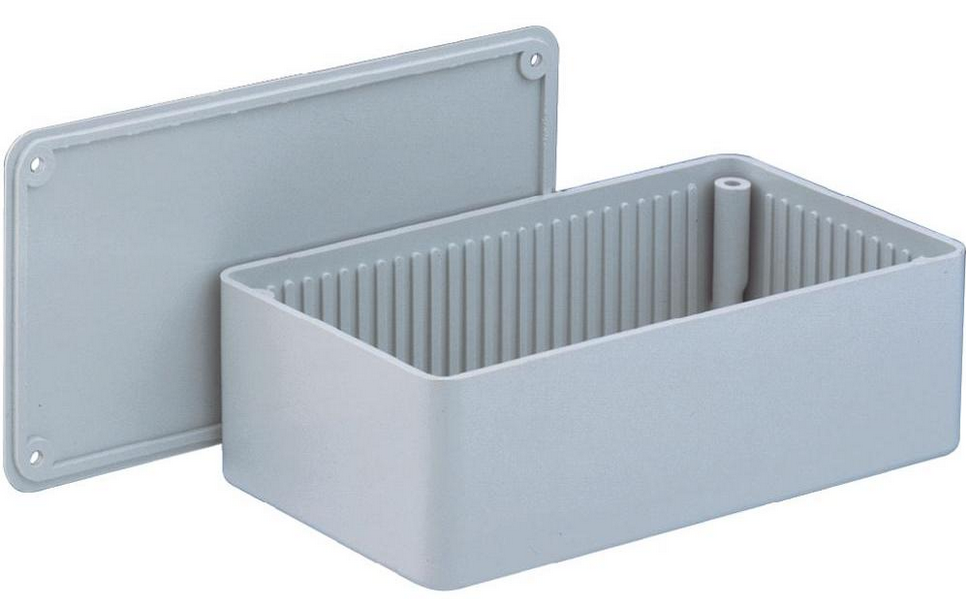

Many boxes have those grooves where you can slide your board in. Of course the board you have is never that size your box actually is :-)

I would use hot glue in that case.

Dennis

Gautam Iyer over 11 years ago

Guru 192875 points

I personally won't prefer any box or base... as that would make it tough for probing points both above & below the launchpad. Yes, 4 holes to place spacers like these would be of little help but not required.

Yes, anti-static mats are extremely important to play with these launchpads.

Regards,

Gautam

Dennis Eichmann over 11 years ago in reply to Gautam Iyer

Guru 74080 points

I think some people use the EVAL-boards in their "final product" - perhaps mostly hobbyists. But I have something like that, too.

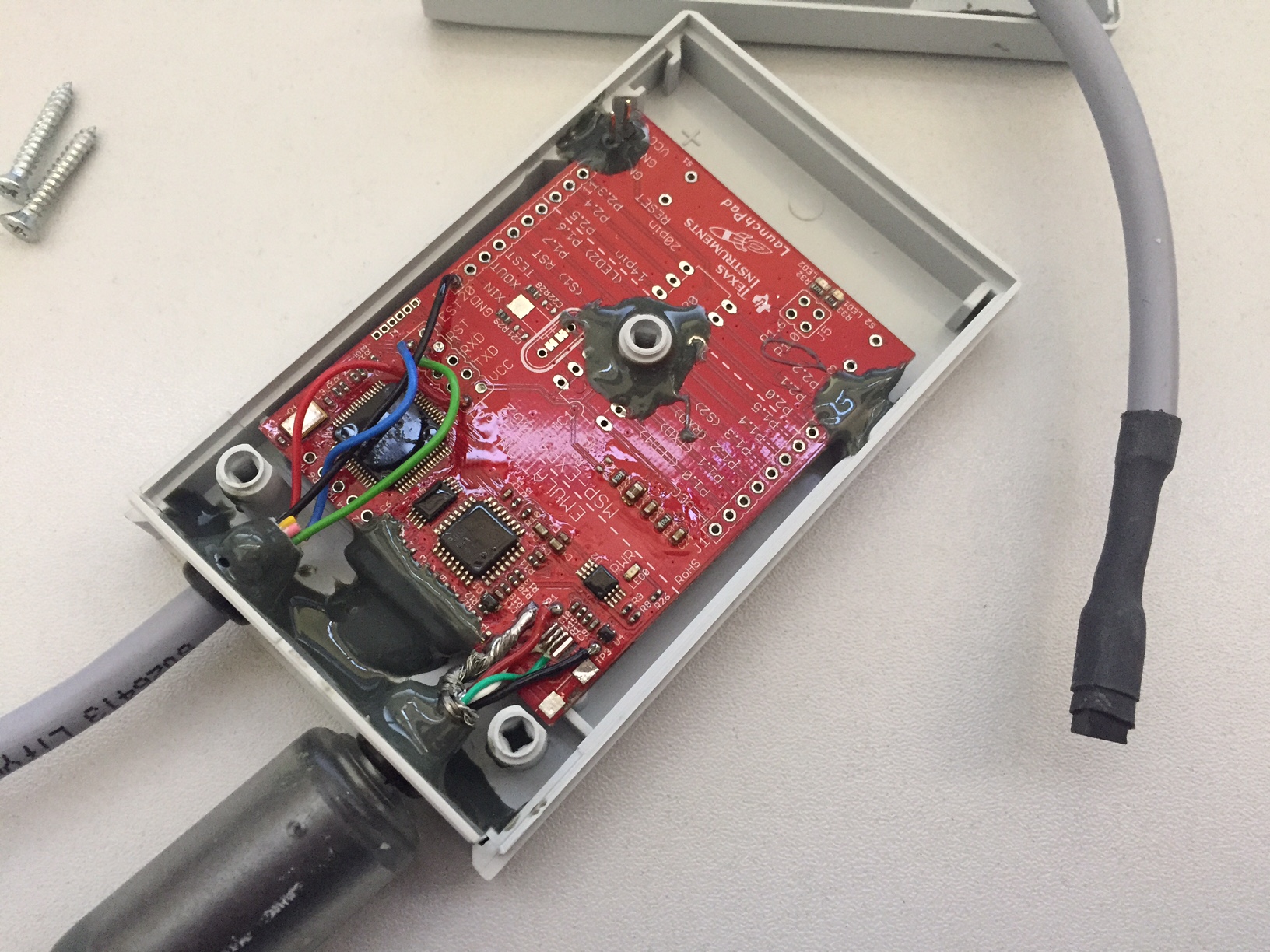

This is the poor man's SBW FET (of course this one can only program those smaller devices since it is limited by the launchpad).

I've made this one some time ago to re-program the characteristics of selfmade electronic speed controllers for brushless-motors in scale-models during the tests in the field. Didn't want to take the much more expensive original FET with me.

This will not win an award for prettiness, but it worked well :-)
