EM430f5137 antenna design issue

Murat Guder

Hi everyone,

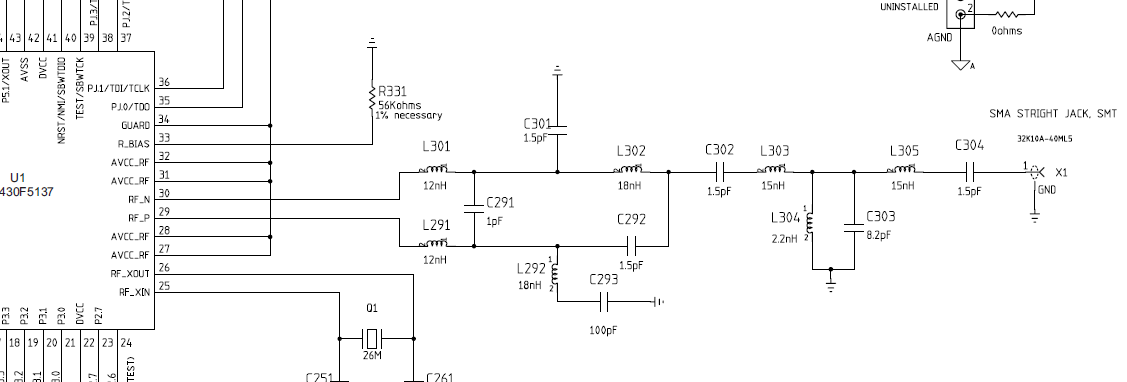

I am using for my project EM430f5137 development kit and now I am drawing pcb with same components and is it important sma connection trace line width after the C304 capacitor ?

Thank u.Have a nice day.

over 10 years ago

0 Ryan Brown1 over 10 years ago

TI__Guru**** 223557 points

Hi Murat,

The trace width between C304 and X1 is 30 mils or 0.76 mm in width. You can check this value and others using the EM430F5137RF900 Hardware Design Files and a Gerber Viewer Tool, some of which are provided online for free.

www.ti.com/.../slac422
http://www.gerber-viewer.com/

Regards,
Ryan

0 Murat Guder over 10 years ago in reply to Ryan Brown1

Prodigy 240 points

Hi Ryan,
Thanks for your valuable answer.

I need to know that ,almost all rf pcbs I saw that too many vias between top layer and bottom layer.Why should we use this vias and which instructions should I follow for putting this vias?

Thank you.Have a nice day.

0 Ryan Brown1 over 10 years ago in reply to Murat Guder

TI__Guru**** 223557 points

Hello Murat,

Ground vias are added liberally throughout RF portions of PCB designs to help prevent parasitic ground inductance due to ground-current return paths and also help to prevent cross-coupling from RF and other signal lines.

Regards,
Ryan

0 Murat Guder over 10 years ago in reply to Ryan Brown1

Prodigy 240 points

Thanks Ryan,this informations will be helpful for my design.
