Msp430G2553 + BNO055

>Did any one has the experience of integrating these devices and succeeded in getting data from the BNO055 sensors?

Bosh engineers? {kidding}

You can read integration info (source code) for other chips to get quite good idea what to do with msp430 in this regard. Usually "porting" needs just rewrite of hardware i/o part

Yes I already looked at these source codes. I am following the same sequence they are doing and everything is fine for setting the HW, but once I set the operation mode to a mode other than config mode, then I get a response EE 03 that is write failed!....this is my problem

Be aware, the BNO055 needs 5 volts through the Vin, this is not mentioned in the datasheet. The MSP430G2553 does provide 3.3 V

Hi Murtadha!

Murtadha A said:

Be aware, the BNO055 needs 5 volts through the Vin, this is not mentioned in the datasheet.

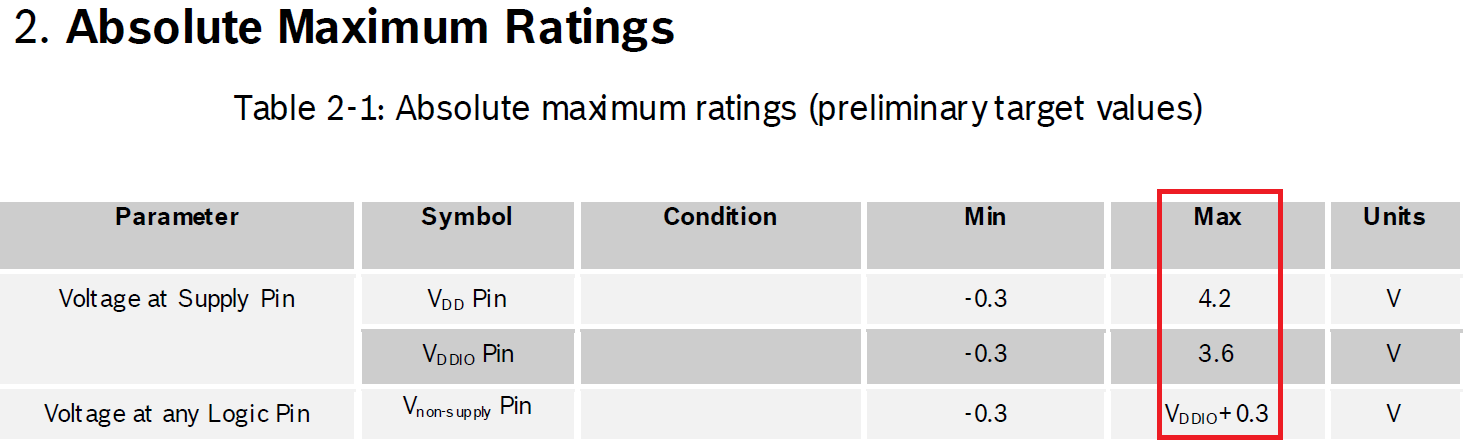

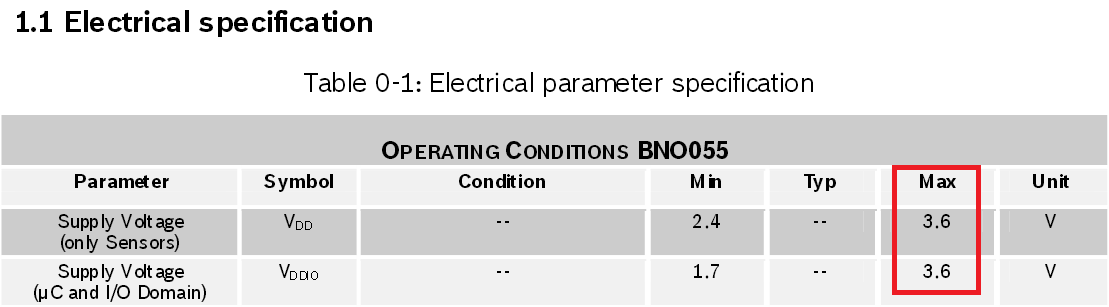

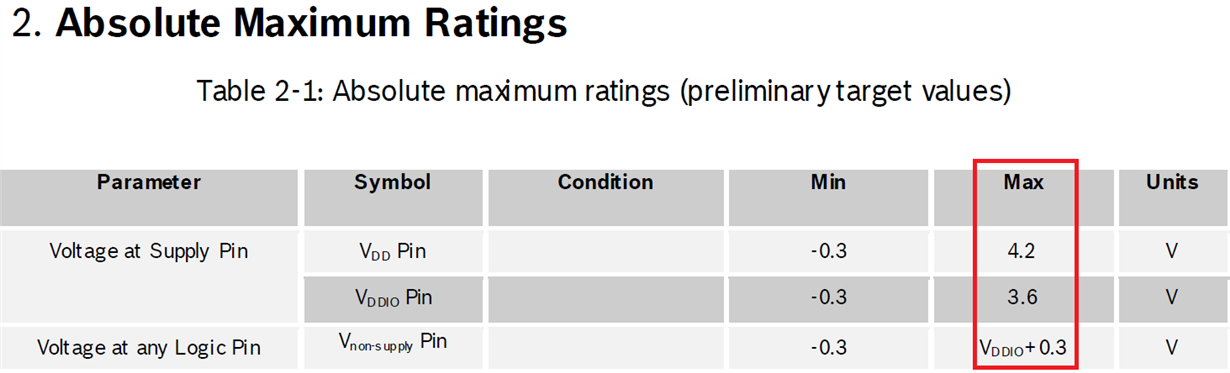

The datasheet says the following:

So do not power the device with 5V since it exceeds the absolute maximum ratings. The 3.3V (3.6V to be precise) that are provided by the MSP-EXP430G2 LaunchPad are sufficient to power the sensor.

Dennis

Hi Dennis

I made that post just to share my experience since I have been struggling for more than a month.

You are right about the voltages, but the data sheet if for BNO055 not for the adafruit board that is plugged to.

See this:

https://learn.adafruit.com/adafruit-bno055-absolute-orientation-sensor/pinouts

even it says vin (3.3-5 V) but 3.3 will not turn on the sensors

This is my experience

Thank you

Murtadha A said:

not for the adafruit board that is plugged to

Yes, OK, the board has a LDO assembled and will not work with 3.3V - I wonder why the homepage says "3.3-5.0V power supply input". The LDO will need some headroom to operate, so a 3.3V regulator normally cannot be powered with 3.3V.

Dennis
