MSP430G2453: MSP430G2453 programmimg

eli

Guru 13485 points

Part Number: MSP430G2453
Other Parts Discussed in Thread: MSP-FET

How you program MSP430 device with hex fills data?

over 8 years ago

0 Caleb Overbay over 8 years ago

TI__Genius 15370 points

Hi Eli,

Check this out and let me know if it helps:
processors.wiki.ti.com/.../Generating_and_Loading_MSP430_Binary_Files

Best regards,
Caleb Overbay

0 eli over 8 years ago in reply to Caleb Overbay

Guru 13485 points

Unable to program the device with the MSP-FET tool.

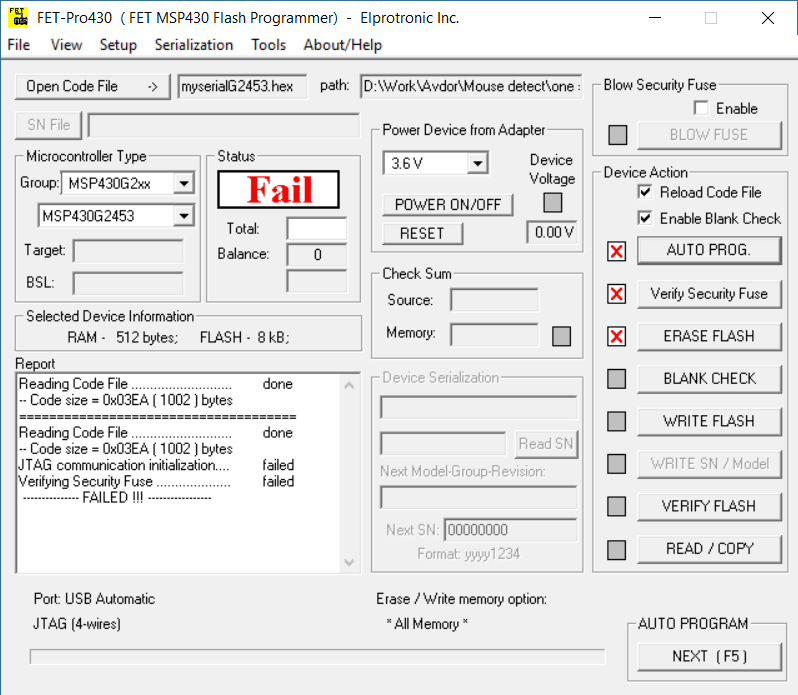

Get the below screen

0 Caleb Overbay over 8 years ago in reply to eli

TI__Genius 15370 points

Hi Eli,

This screen signifies that the JTAG communication failed which is most likely a hardware issue. Can you provide a schematic of your connections to the MSP430?

Best regards,
Caleb Overbay

0 Caleb Overbay over 8 years ago in reply to eli

TI__Genius 15370 points

Hi Eli,

Do you still need help with this issue?

Best regards,
Caleb Overbay

0 eli over 8 years ago in reply to Caleb Overbay

Guru 13485 points

Hi
No. Thanks

0 Caleb Overbay over 8 years ago in reply to eli

TI__Genius 15370 points

Hi Eli,

Could you share the solution to your issue for others who might be in a similar situation and then verify the answer that solved your problem?

Best regards,
Caleb Overbay

0 eli over 8 years ago in reply to Caleb Overbay

Guru 13485 points

1.Test pin was not connected
2.Customer provided two operating voltage: one from the FET and one additional separate voltage to his board
