MSP430FR6047: USS module ToF time resolution

Hello Kissn,

Thank you for your post. To get started, I think you'll find the document resources listed inside our Quick Start Guide for MSP430FR6047-Based Ultrasonic Water Flow Meter to be very helpful.

• EVM430-FR6047 Hardware Guide
• MSP430FR6047 Ultrasonic Sensing Design Center Quick Start Guide
• Application Software (SW) Architecture for MSP430FR6047-Based Ultrasonic Water Flow Meter
• MSP430 MCUs Ultrasonic Sensing Design Center
• MSP430FR6047 and Ultrasonic Software Based Water Flow Meter Measurement Results

After reading through these resources, you should find the answers to your questions.

Regards,

James

MSP Customer Applications

Hello James

I am checking out the new MSP430FR6047 that I probably want to use in my water flow solution. I have got the same question as Kissn.

How is the time accuracy of < 5ps reached? I found some information that the sigma-delta high speed modulator works with an oversampling up to

80MHz. That means that the signals will be sampled every 12.5ns. After the digitalization of the down- and upstream signal the cross correlation is calculated.

So how is the system able to reach this accuracy?

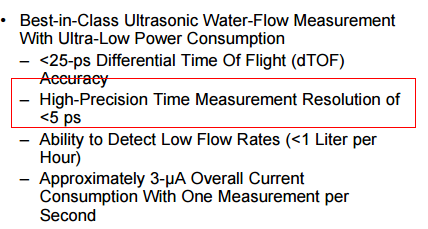

And what is the difference between "<25-ps Differential Time-of-Flight (dTOF) Accuracy" and "High-Precision Time Measurement Resolution of <5 ps" ?

Thank you for your answer and for the help to give me a better understanding of the system.

Kind regards

Dominic
