MSP430I2020: MSP430Fi2020 SD24, Input Range

paddu2017
Expert 2885 points
Part Number: MSP430I2020

Hi,

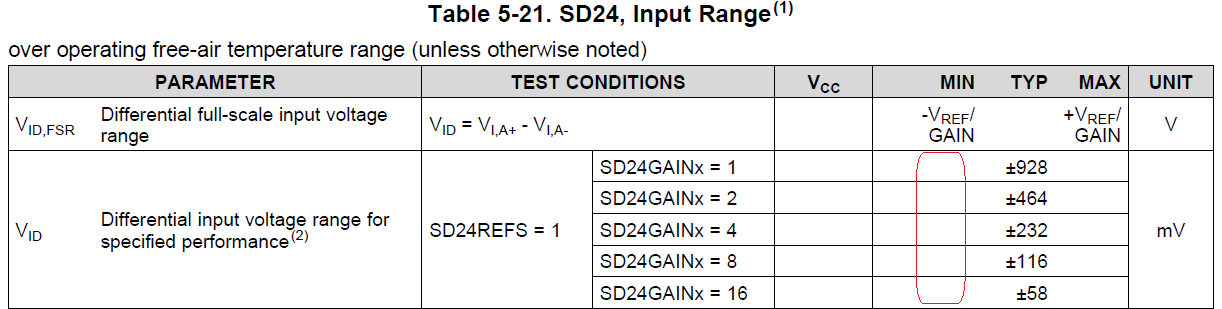

How do we calculte Minimum value of "Differential input voltage range for specified performance".
The datasheet mentions TYP value, but there is no MIN and Maximum values when we use internal reference.


Please let me know if there is any way to calculate the minimum values.

Best Regards
paddu

  • 0
    TI__Genius 10980 points
    Hi paddu,

    The table lists the range for VID. This is why there is nothing listed under min or max. For SD24GAINx = 1, for example, the minimum VID is -928 mV, and the maximum VID is 928 mV.

    Regards,
    Nathan
