MSP432P401R: Layout guide and example for the BGA package

Wayne Huang

Genius 17145 points

Part Number: MSP432P401R

Champs,

For some reason, one of our key customer has to use BGA package (MSP432P401RIZXH).

Because the ball pitch is small to them, do we have any layout design guideline or example for them?

For example, it's hard for them to use VIA in pins.

Do you have any suggestion?

Wayne

over 8 years ago

0 Chris Sterzik over 8 years ago

TI__Guru 73781 points

Wayne,
They can use the "Dog Bone" via described here: www.ti.com/.../spraa99b.pdf .

Additional documentation regarding layout can be found here:

Regards,
Chris

0 Wayne Huang over 8 years ago in reply to Chris Sterzik

TI__Genius 17145 points

Chris,

The customer has looked into the app note you showed.

However, they are still concerned the space is not enough for the smallest VIA they can use.

Do you have any Gerber example file for us on this package?

Wayne

0 Chris Sterzik over 8 years ago in reply to Wayne Huang

TI__Guru 73781 points

Wayne,

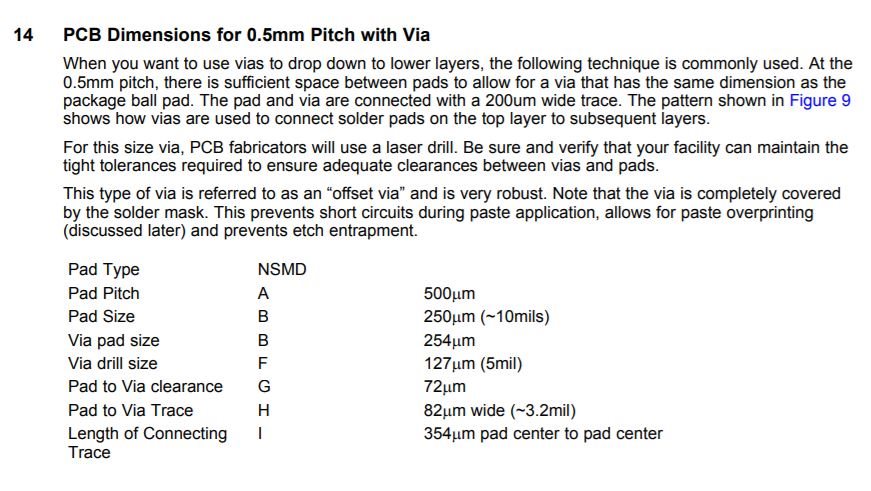

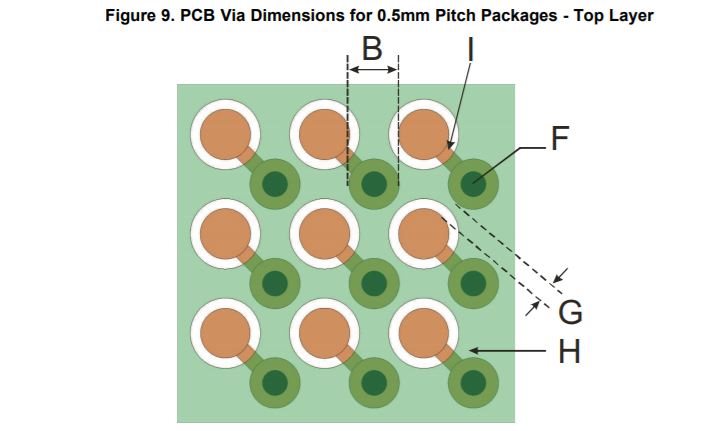

On page 11, it shows the following guidance for the via size:

I will work with my colleague to provide gerbers, but can you help me understand what additional information does the gerber provide?

Regards,
Chris

0 Chris Sterzik over 8 years ago in reply to Chris Sterzik

TI__Guru 73781 points

Wayne,
Can you identify the minimum sizes required by customers manufacturing process?

Regards,
Chris

0 Wayne Huang over 8 years ago in reply to Chris Sterzik

TI__Genius 17145 points

Chris,

The customer is thinking if they can use another package and there are non-technical concerns behind.
We would suspend this issue.
If any further need, I will contact you directly.

Thank you for your support.

Wayne
