MSP430FR6047: What is the unit of the Y axis of ADC capture window?

Mr. Jadhav

Part Number: MSP430FR6047

Hello,

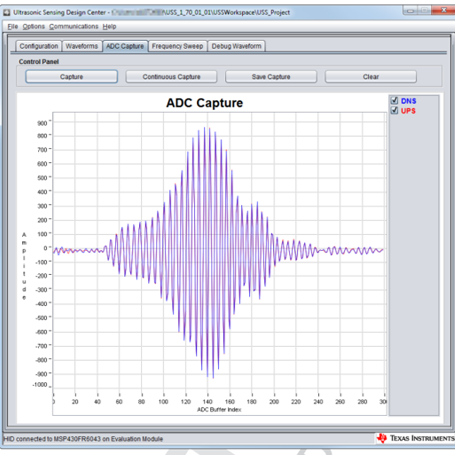

The ADC capture window shows the ADC amplitude count. How is this ADC count calculated and is there a table which gives the relation between the set "gain value" the "voltage" and the "ADC count"?

Regards,

Jadhav

over 6 years ago

0 Eddie LaCost over 6 years ago

TI__Mastermind 45155 points

Hello Jadhav,

We do not have a table available with the relationship. I will need to research this some more and provide a more detailed response shortly.

0 Eddie LaCost over 6 years ago in reply to Eddie LaCost

TI__Mastermind 45155 points

Mr. Jadhav,

Sorry for the delay. I have been out of office. I will be back tomorrow and will get you a response.

0 Eddie LaCost over 6 years ago in reply to Eddie LaCost

TI__Mastermind 45155 points

Mr. Jadhav,

See section 34.2.1 of the users guide. This conversion formula is for the ADC12, but would hold true for the SDHS as well.

www.ti.com/.../slau367o.pdf
