MSP430FR2633: Sensor board design for captivate

DDdoor

Hello,

Customers are using the captivate design center to test customer-created sensor boards.
Otherwise, customers use the captivate demo board. The sensor board has 3 buttons,
and a part of the count value protrudes. From now on, customers will make boards in earnest,
but customers want to make electrodes that do not vary. Do you have any advice?
Is it good to connect MSP430FR2633 and sensor board with flexible cable?

Best regards,
DDdoor

over 7 years ago

0 Wei.Jetim Zhao over 7 years ago

TI__Genius 13215 points

Hi DDdoor,

I would introduce the CapTIvate technology guide to customer for design guide.
software-dl.ti.com/.../ch_design_guide.html

The flexible cable should work but you should take care of the capacitance from other board or trace on the cable.

0 Wei.Jetim Zhao over 7 years ago

TI__Genius 13215 points

BTW, you said the customer will make the board. Is there a new project running by customer?

0 Wei.Jetim Zhao over 7 years ago

TI__Genius 13215 points

Hi,

I haven’t heard from you for about a week, so I’m assuming you were able to resolve your issue. If this isn’t the case, please click the "This did NOT resolve my issue" button and reply to this thread with more information. If this thread locks, please click the "Ask a related question" button and in the new thread describe the current status of your issue and any additional details you may have to assist us in helping to solve your issues.

0 DDdoor over 7 years ago in reply to Wei.Jetim Zhao

Expert 2435 points

Hello Wei,

Thank you for your reply.

I got the design of the design center V8 and the pattern diagram of the switch board from the customer.
I want you to look at these data. And I would like to get some advice, is this possible? In that case,
I want to send data individually.

Best regards,
DDdoor

0 Wei.Jetim Zhao over 7 years ago in reply to DDdoor

TI__Genius 13215 points

Hi，

I would highly recommend to review your design by the guidance of CapTIvate technology guide, which I shared with you previously. If you still have any issue beyond the topics of CapTIvate technology guide, please feel free to ask on E2E and request friendship with me on the forum for sending some data/files individually if required.

0 DDdoor over 7 years ago in reply to Wei.Jetim Zhao

Expert 2435 points

Hello Wei,

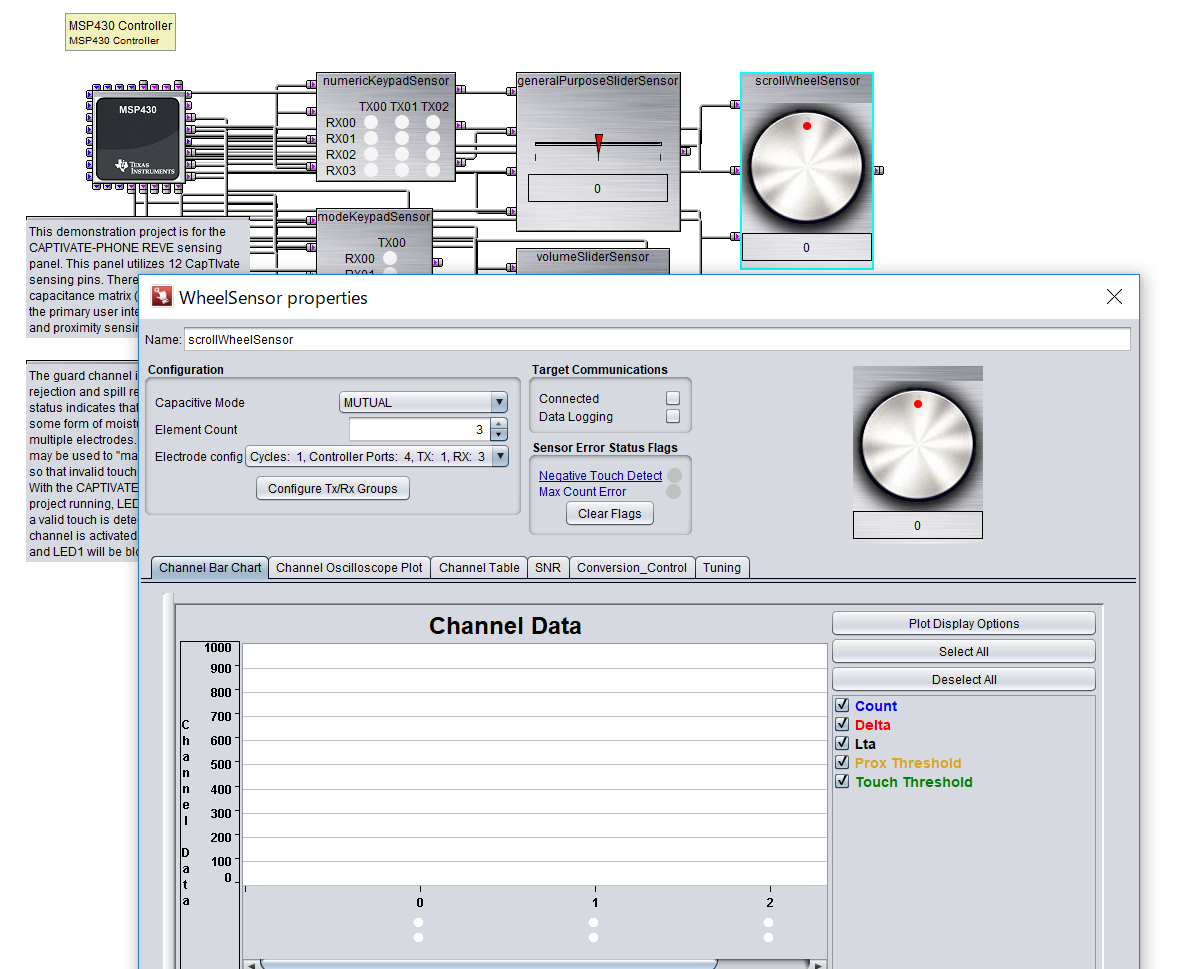

As attached, scroll wheel of captivate phone sample design is 3 sensor design.
The captivate technology guide has a reference layout for this. Is there a reference pattern of 4 sensor design?

■Scroll Wheel
softwaredl.ti.com/.../ch_evm_CAPT_PHONE.html

Best regards,
DDdoor

0 Johnson He over 7 years ago in reply to DDdoor

TI__Mastermind 30406 points

Hi DDdoor,
You can refer to this file to design 4 sensor layout.
www.ti.com/.../slaa891.pdf
Best Regards,
Johnson
