TSS521: Electrical default state of RX and RXI pins: pull-up/pull down needed?

Teuvo Telaranta21

Part Number: TSS521
Other Parts Discussed in Thread: TSS721A

Hi,

I have been studying data sheets of TSS521 (and TSS721A) to prepare for a design project starting next week.

I am worried about connections to unused data pins, as the data sheet doesn't define how the data lines RX and RXI should be terminated when not in use. Can pin 12 and pin 13 float when not used, or should they have an external pull-up / pull-down respectively, if not used?

over 6 years ago

0 James Evans over 6 years ago

TI__Mastermind 49692 points

Hello,

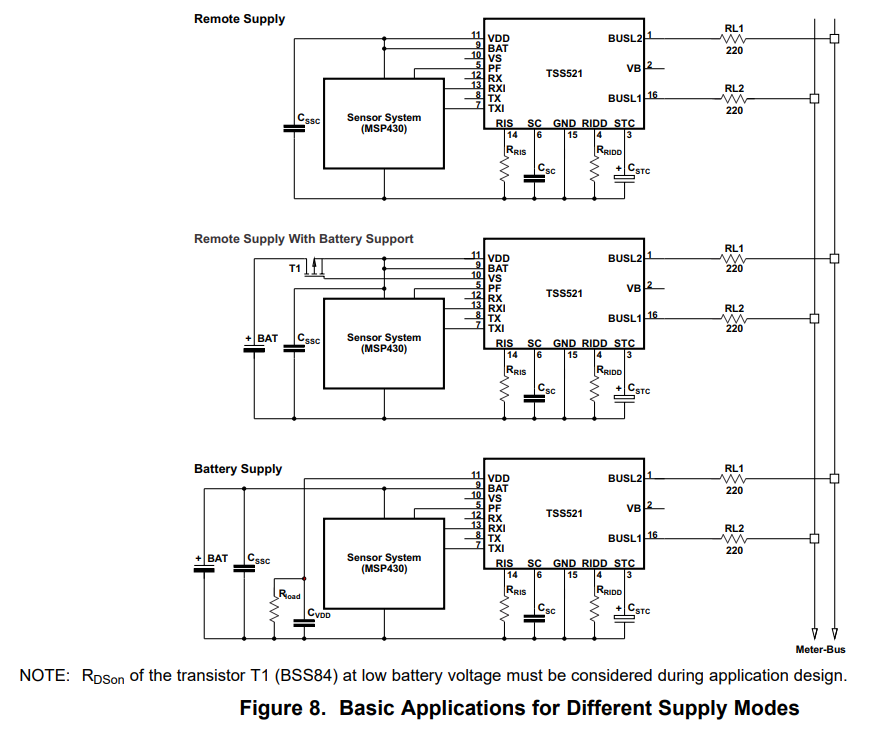

According to several figures in the datasheet, the unused pins are left floating. I would recommend trying this and if there are issues, then tie them to GND through a pull-down resistor.

Regards,

James

0 Teuvo Telaranta21 over 6 years ago in reply to James Evans

Prodigy 70 points

Thank you. I am aware of the data sheet presenting floating pins. However, when cross-checking with the electrical data, which shows minuscle input currents (likely no pull-ups/pull-downs), I am afraid, that the inputs would be floating and therefore could be a problem in some use cases and temperatures.

br Teuvo

0 James Evans over 6 years ago in reply to Teuvo Telaranta21

TI__Mastermind 49692 points

Hello Teuvo,

This discussion has moved internally, so we can close this thread. Please continue working with your sales team involved for updates. Thanks.

Regards,

James
