EVM430-FR6047: How to configure the ultrasonic water meter parameters?

user3944157

Part Number: EVM430-FR6047

Hello, we are develop an ultrasonic heat meter,the diameter of the tube is 20 mm.

I configure parameters reference "http://www.ti.com/lit/ug/tidudn0/tidudn0.pdf" and "EVM430-FR6047 TEST RESULT VEDIO",But i feel the data is not ideal.

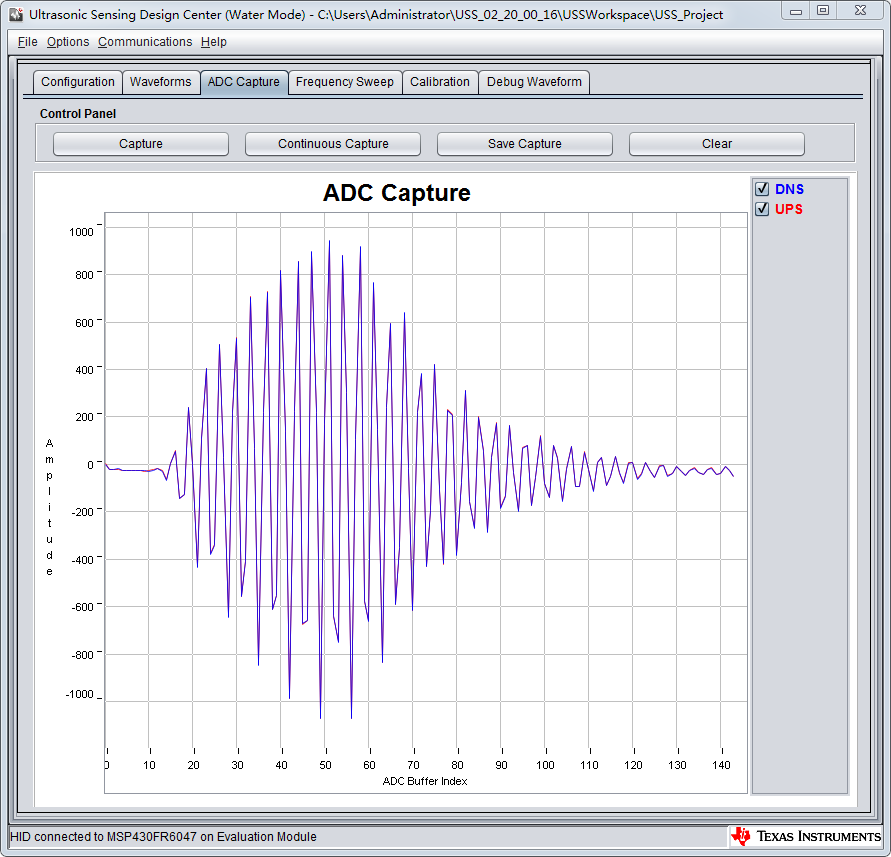

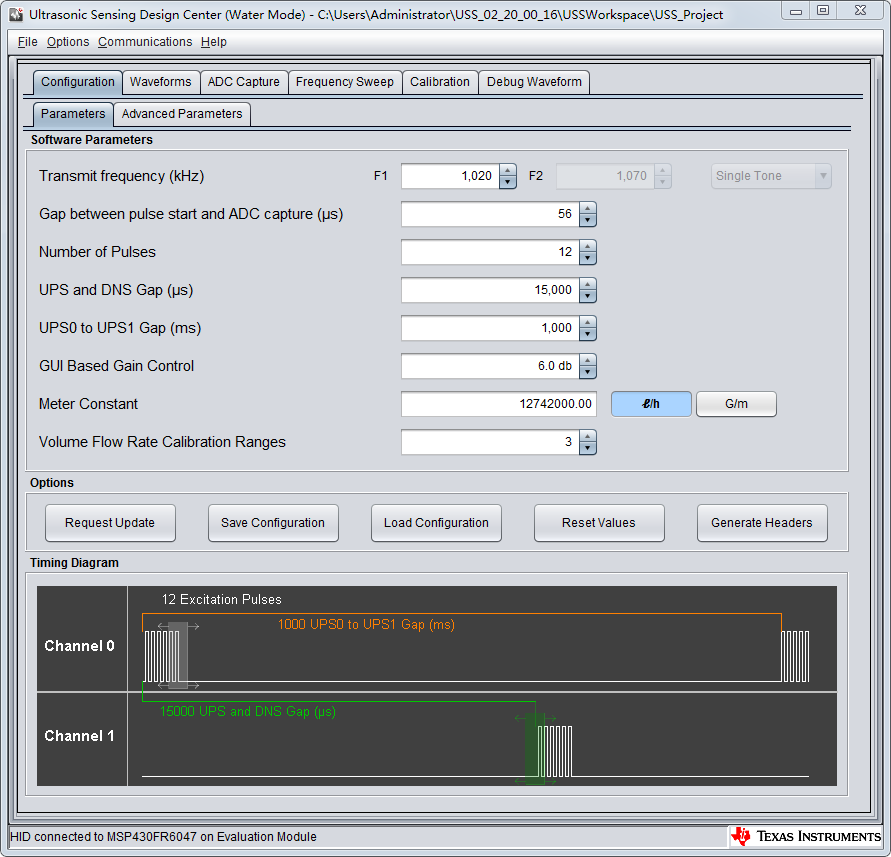

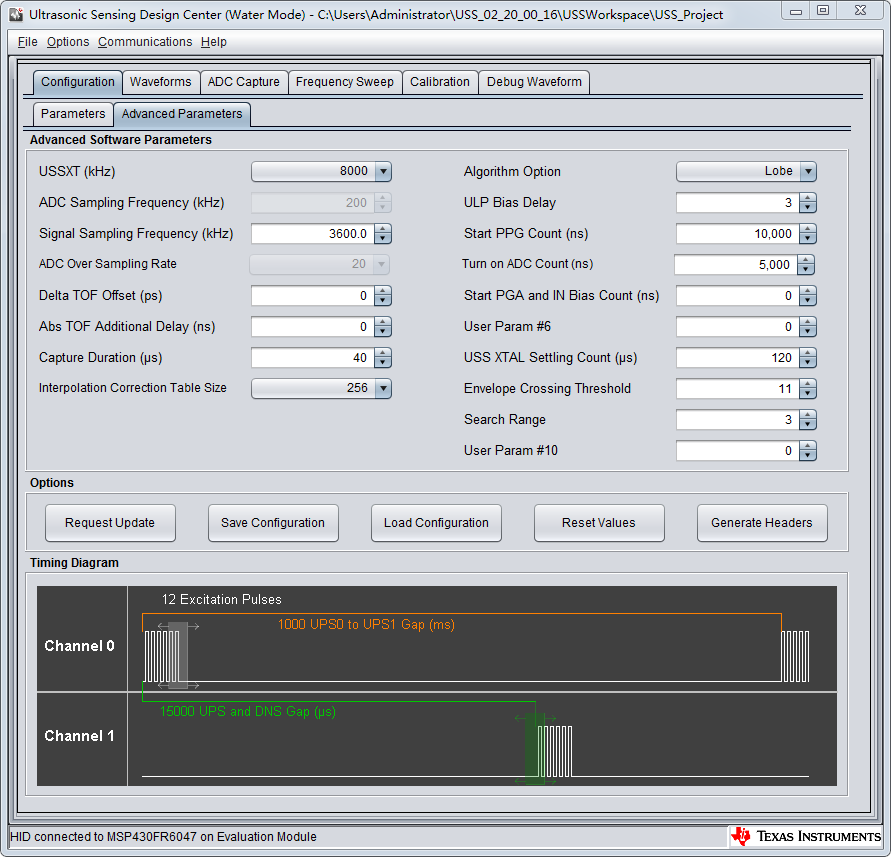

Configuration parameters are as follows:

Is my configuration correct? Hoping for answers.

Thanks.

over 6 years ago

0 JD Crutchfield over 6 years ago

TI__Mastermind 29105 points

Hello,

Thank you for coming to the E2E Forums. I will have a member of the team take a look at your parameters and see if they can offer any additional suggestions.

Thanks
JD

0 user3944157 over 6 years ago in reply to JD Crutchfield

Prodigy 40 points

Hi,JD

Thank you for your reply.I am waiting for your team's Suggestions.

Thanks

0 Cash Hao11 over 6 years ago in reply to user3944157

TI__Mastermind 46545 points

Hi,

Your configuration looks good for me. Maybe a little shorter in the "gap between pulses start and ADC capture" will be great, like change it to 50.

There is one thing I noticed that the mean of dTOF is -19.7ns. It is a little large than normal. Please check if you have sealed your pipe first. If yes, then it may cause by the slightly impedance mismatch of those transducers you use. You can confirmed it by switching the CH0 and CH1 transducers, and see if the mean of dTOF goes to positive. It is not a big issue for the measurement. You can cut off this offset in the software anytime.

Best regards,

Cash Hao

0 Cash Hao11 over 6 years ago in reply to user3944157

TI__Mastermind 46545 points

Hi,

Any thing else that I can help with?

Best regards,

Cash Hao
