CCS/TIDM-1019: Slope in Calibration panel

Divya Harikumar

Expert 2020 points

Part Number: TIDM-1019

Tool/software: Code Composer Studio

Hi,

While performing calibration , we obtained a slope and offset that seems to differ from the values that we obtain from manual linear fit.

We did use the same set of points in both cases.

According to Ultrasonic Sensing Design Center User Guide (02.20.00.18),"The calibration panel enables the user to calibrate the meter (using liner fit calibration) for different number of ranges".

If so.then 1) Why such a variation and

2) What might be causing this?

Best Regards,

Divya Harikumar

over 7 years ago

0 James Evans over 7 years ago

TI__Mastermind 49692 points

Hi Divya,

I've looped in our team covering these devices and they'll be replying shortly. Thanks for your patience.

Regards,

James

0 Cash Hao11 over 7 years ago

TI__Mastermind 46765 points

Hi Divya，

I am going to check with the experts on the details.

Best regards,

Cash Hao

0 Cash Hao11 over 7 years ago

TI__Mastermind 46765 points

Hi Divya,

The slope and offset should be used for calibrating the meter constant. Meter constant = Expected VFR/mean VFR

Best regards,

Cash Hao

0 Divya Harikumar over 7 years ago in reply to Cash Hao11

Expert 2020 points

Hi Cash Hao,

The slope and offset that we obtain from the USS app differs from the one that we get while performing a linear fit for the same number of points.

Why is that so?

Best Regards,

Divya Harikumar

0 Cash Hao11 over 7 years ago in reply to Divya Harikumar

TI__Mastermind 46765 points

Hi Divya,

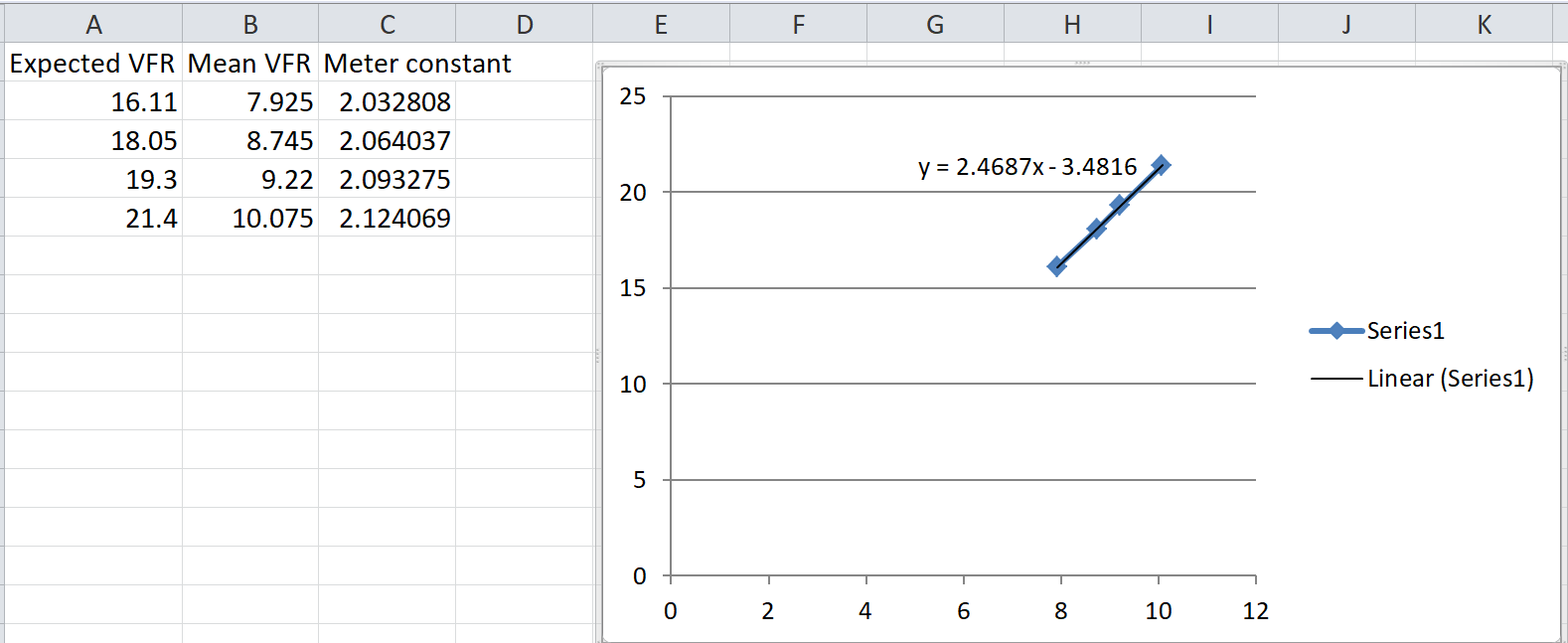

X for mean VFR, Y for expected VFR

Best regards,

Cash Hao

0 Divya Harikumar over 7 years ago in reply to Cash Hao11

Expert 2020 points

Hi Cash,

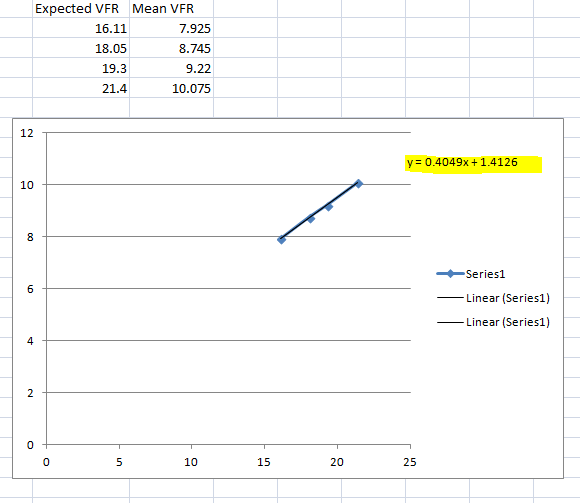

I had switched the data axis,that seemed to have caused the difference.

Just a small query ,according to the table will the meter constant for that particular range be multiplied with around 2.5?

Thanking you for the timely support.

Regards,

Divya Harikumar

0 Cash Hao11 over 7 years ago in reply to Divya Harikumar

TI__Mastermind 46765 points

Hi Divya,

Yes. You can consider this way.

Expected VFR = (meter constant * calibration factor) * dTOF/(absTOF1 * absTOF2)

Best regards,

Cash Hao
