CCS/MSP430FR2355: PWM with dead time

Ezra Ben Senyor

Tool/software: Code Composer Studio

i am trying to build two compilmatary pwm signal with dead time, from what i read in the datasheet and in the forum i wrote this settings:

TB1CCR0 = 1000; // PWM Period
TB1CCTL1 = OUTMOD_6; // CCR1 reset/set
TB1CCTL2 = OUTMOD_2; // CCR2 reset/set
TB1CCR1 = 800; // CCR1 PWM duty cycle
TB1CCR2 = 750; // CCR2 PWM duty cycle
TB1CTL = TBSSEL__SMCLK | MC__UPDOWN ; // ACLK, up mode, cleBr TBR

i am also using TB0 as ISR.

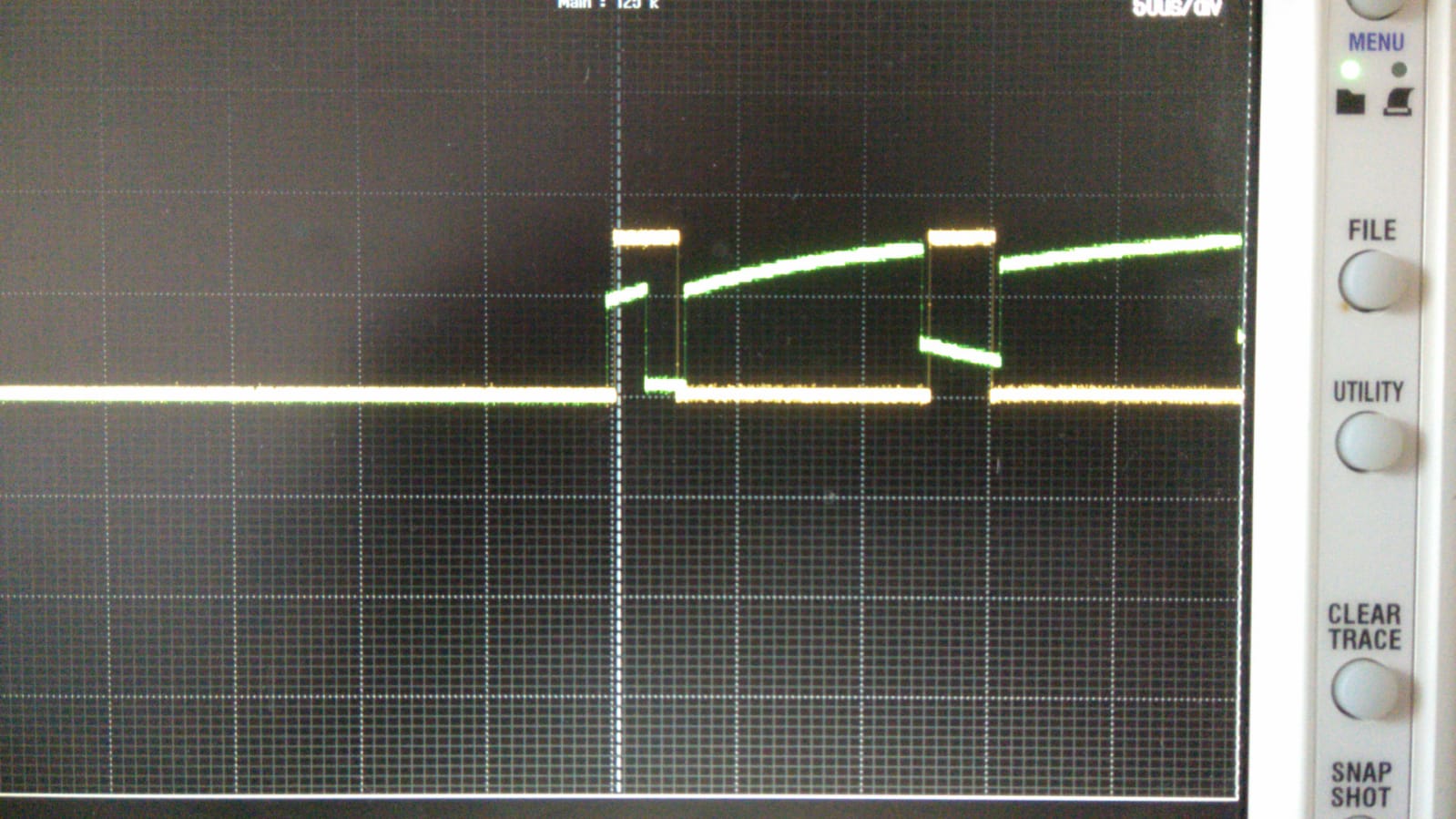

but something does not work here , for some reason the first pulse overlap and if i change TB1CCR1 and TB1CCR2 in the ISR sometimes overlaps occurs.

why?

what am i doing wrong? how can configure it so the overlap wont happen?

thanks a lot.

over 5 years ago

0 Tomas Roubicek over 5 years ago

Intellectual 350 points

Hello Ezra,

you need to set the compare latch load events (see section 14.2.4.2.1 in User's Guide)

TB1CCTL1 |= CLLD_2;

TB1CCTL2 |= CLLD_2;

and the CCR load groups (see section 14.2.4.2.2 in User's Guide)

TB1CTL |= TBCLGRP_1;

Best regards,

Tomas

0 Ezra Ben Senyor over 5 years ago in reply to Tomas Roubicek

Prodigy 70 points

hi,

thanks for your replay.

i tried as you suggested:

TB1CCTL1 |= CLLD_2;

TB1CCTL2 |= CLLD_2;
TB1CTL |= TBCLGRP_1;
TB1CCR0 = 10000; // PWM Period

TB1CCTL1 = OUTMOD_6; // CCR1 reset/set
TB1CCR1 = 5000; // CCR1 PWM duty cycle

TB1CCTL2 = OUTMOD_2; // CCR2 reset/set
TB1CCR2 = 5000; // CCR2 PWM duty cycle

TB1CTL = TBSSEL__SMCLK | MC__UPDOWN ; // ACLK, up mode, cleBr TBR

TB0CCTL0 |= CCIE; // TBCCR0 interrupt enabled
TB0CCR0 = 800;

TB0CTL = TBSSEL__SMCLK | MC__UP | TBCLR; // SMCLK, up mode, clear TBR

but now i get both of the pwm exactly the same and not complemantary.

what do i need to change to get them complimentary and with deat time?

thanks.

0 Tomas Roubicek over 5 years ago in reply to Ezra Ben Senyor

Intellectual 350 points

TB1CCR0 = 1000; // PWM Period
TB1CCTL1 = OUTMOD_6 | CLLD_2;
TB1CCTL2 = OUTMOD_2 | CLLD_2;
TB1CCR1 = 800;
TB1CCR2 = 750;
TB1CTL = TBSSEL__SMCLK | TBCLGRP_1 | MC__UPDOWN ;

0 Ezra Ben Senyor over 5 years ago in reply to Tomas Roubicek

Prodigy 70 points

hi,

thanks for your help.

its working great now , even if i load a new value.

but the first pulse overlap for some reason.

why?

thanks.

0 Tomas Roubicek over 5 years ago in reply to Ezra Ben Senyor

Intellectual 350 points

You have to initialize the counter value (before you start the counter) or set correct outputs states for zero counter.

TB1R = 775; // value when both outputs are 0

0 Tomas Roubicek over 5 years ago in reply to Tomas Roubicek

Intellectual 350 points

Complete timer settings:

TB1CCTL1 = 0;                   // *reset output 1
TB1CCTL2 = 0;                   // *reset output 2
TB1CTL &= ~MC;                  // *stop timer
TB1CTL = TBSSEL__SMCLK | TBCLR; // config timer and reset
TB1CCR0 = 1000;                 // PWM period / 2
TB1CCR1 = 800;
TB1CCR2 = 750;
TB1R = 775;                     // init timer (start value)
TB1CTL |= TBCLGRP_1;            // set groups
TB1CCTL1 = OUTMOD_6 | CLLD_2;   // init output 1
TB1CCTL2 = OUTMOD_2 | CLLD_2;   // init output 2
TB1CTL |= MC__UPDOWN;           // start timer

*Note: can be omitted if this is first setting after reset

0 Ezra Ben Senyor over 5 years ago in reply to Tomas Roubicek

Prodigy 70 points

thank you so much it seems to working great now.
