Hi, I try to flash my MCU with the BlackHawk debug probe and I got the following error message
Error connecting to the target:
(Error -1170 @ 0x0)
Unable to access the DAP. Reset the device, and retry the operation. If error persists, confirm configuration, power-cycle the board, and/or try more reliable JTAG settings (e.g. lower TCLK).
(Emulation package 0.0.0.0)
Hi, the head was removed from the head near R17. Also, the grey wire on the left is connected to a ground pin on the tiva c kit and connected on the ground of the PCB MCU. I power the PCB MCU with the Vbus pin (white wire on the left). When you talk about ground, do you talk the ground near the push button?

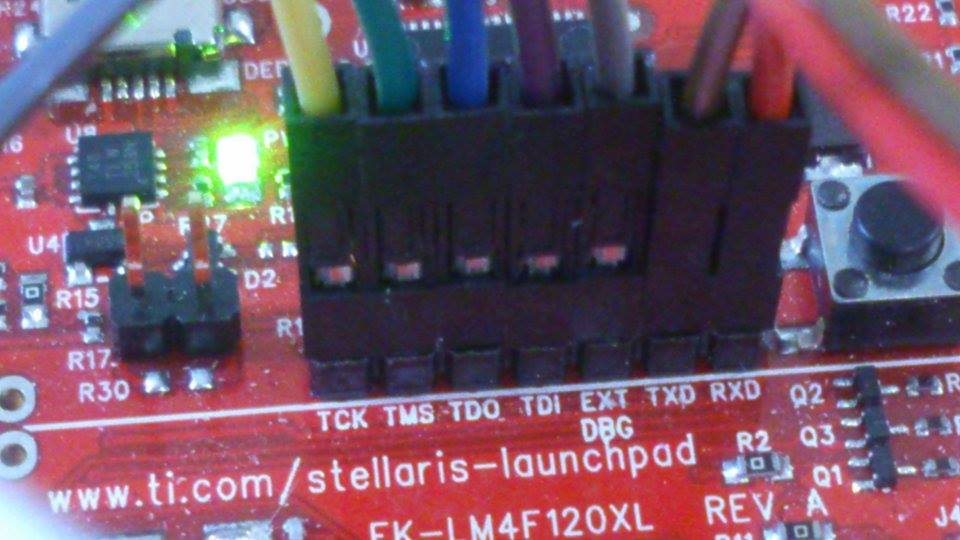

Here some close up photos on the kit
Hi, I use for now the stellaris launchpad.
TDI kit ---> TDI PCB
TDO kit ----> TDO PCB
I left the EXT DBG floating.
Here a printscreen on the pcb AD, the trace are under the board.
Finaly, just to make sure, I don t think i made a mistake on that because VDDC is correctly set at 1.2 V. The pin 1 is under the dot on the plastic package?
Hi ,

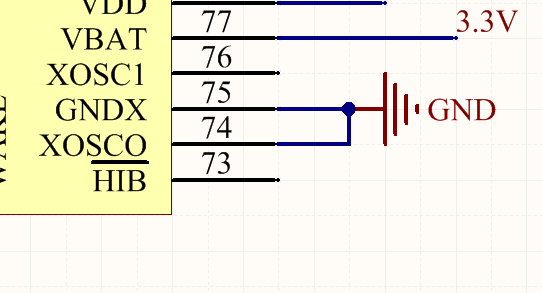

for Vddc decoupling caps, I got a 3.3 uF in parallel with 3 0.01 uF. Here is the schematic for the osc pin:
