DRV8244-Q1: Junction Temperature Estimator

Jeffrey Chung1

Part Number: DRV8244-Q1
Other Parts Discussed in Thread: DRV8706-Q1

Hi Team,

I simulated the junction temperature through attached estimator, but it is already over thermal shutdown temp under condition of 21A load current. Please check it and let me know the reason why.

JunctionTemperatureEstimator_FB.xlsx

Regards,

over 1 year ago

+1 Shinya Morita over 1 year ago

TI__Mastermind 44855 points

Hi,

Thank you for your questions. 21A is peak current capability. Here is current capability including thermal (Datasheet page 20)

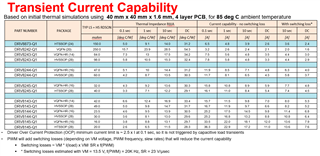

If higher current ~20A is required, here is current capability table with Ta=85C. Or gate driver (e.g DRV8706-Q1) can be used.

regards

Shinya Morita

0 Jeffrey Chung1 over 1 year ago in reply to Shinya Morita

Genius 3320 points

Hi Shinya,

Thanks for your response. Let me check with the customer and I will ask you again about another questions.

Regards,

0 Shinya Morita over 1 year ago in reply to Jeffrey Chung1

TI__Mastermind 44855 points

Hi Jeffrey,

If you provide followings, I can propose our motor driver to fit.

-Customer name. Application use case (e.g door lock, window lift etc)

-Load profile. Peak current ??A@??msec. Typical current. ??A@??sec

-PWM frequency.

regards

Shinya Morita

0 Jeffrey Chung1 over 1 year ago in reply to Shinya Morita

Genius 3320 points

Hi Shinya,

Customer's application is motor controller for door lock. They already fixed DRV8244 as motor driver for their application, so now they are designing and verifying it. I will let you know if they have any questions.

Regards,

0 Shinya Morita over 1 year ago in reply to Jeffrey Chung1

TI__Mastermind 44855 points

Thanks. Please create new title and post if you have another questions.

regards

Shinya Morita
