DRV2511-Q1: BD mode modulation EVM

Shinji Tsuji

Part Number: DRV2511-Q1
Other Parts Discussed in Thread: DRV2511Q1EVM

Hi team,

I want to use "Wave Builder" function of Haptics Control Console for DRV2511EVM.

But when I enable Wave Builder and push start button, the PWM+/- outputs common phase signal which result in differentially 0V on OUT+/-.

I could drive the solenoid by shorting IN- to GND for single end drive.

But is it possible to change the firmware to be able to drive differential signal on IN+/-?

regards,

0 José Luis over 7 years ago

Hi Shinji,

My colleague will be responding tomorrow.

Best Regards
Jose Luis Figueroa
Applications Engineer

0 Kelly Griffin over 7 years ago

Hi Shinji,

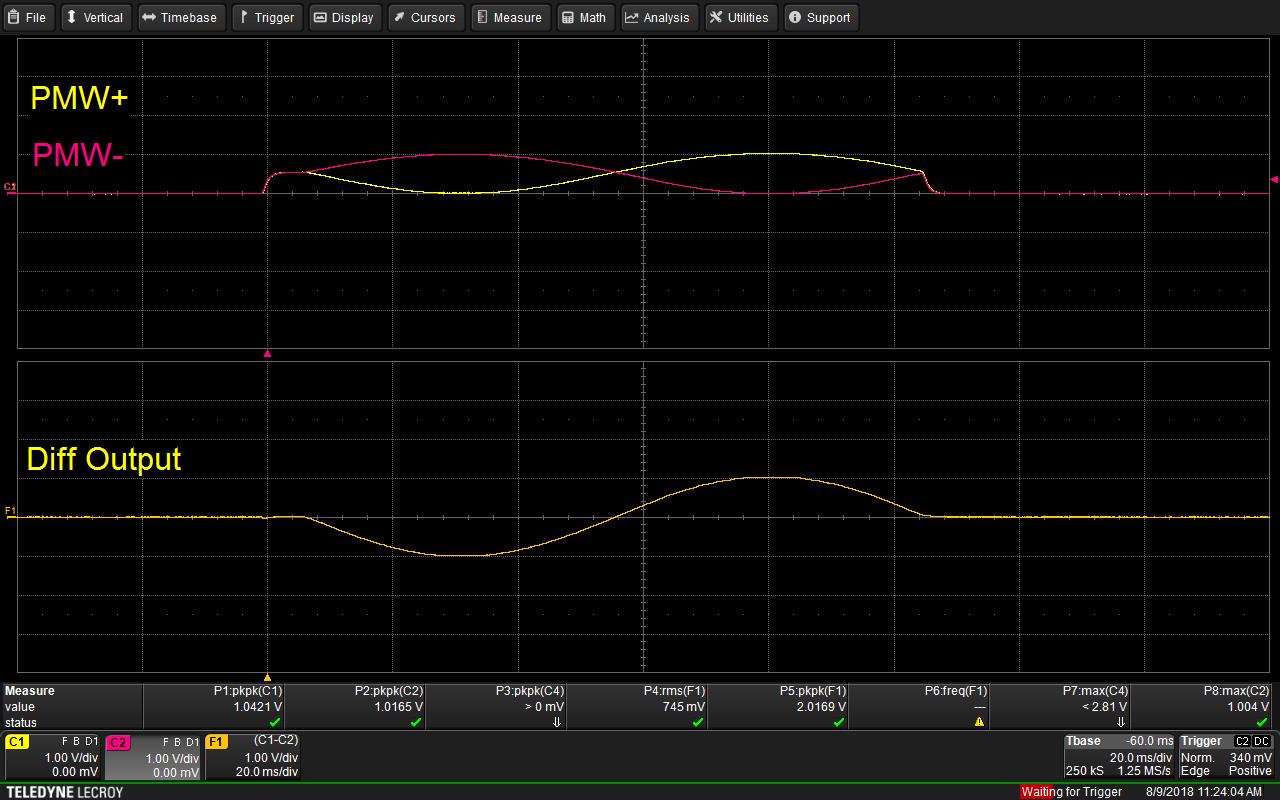

I looked into this and the inputs appear to be differential. See the image above of the pre-programmed sine wave with 1ms time step between points.

0 Kelly Griffin over 7 years ago in reply to Kelly Griffin

Does the above answer your question? If not, feel free to post more follow-up questions. I will close this thread for now.

0 Shinji Tsuji over 7 years ago in reply to Kelly Griffin

Hi Kelly,

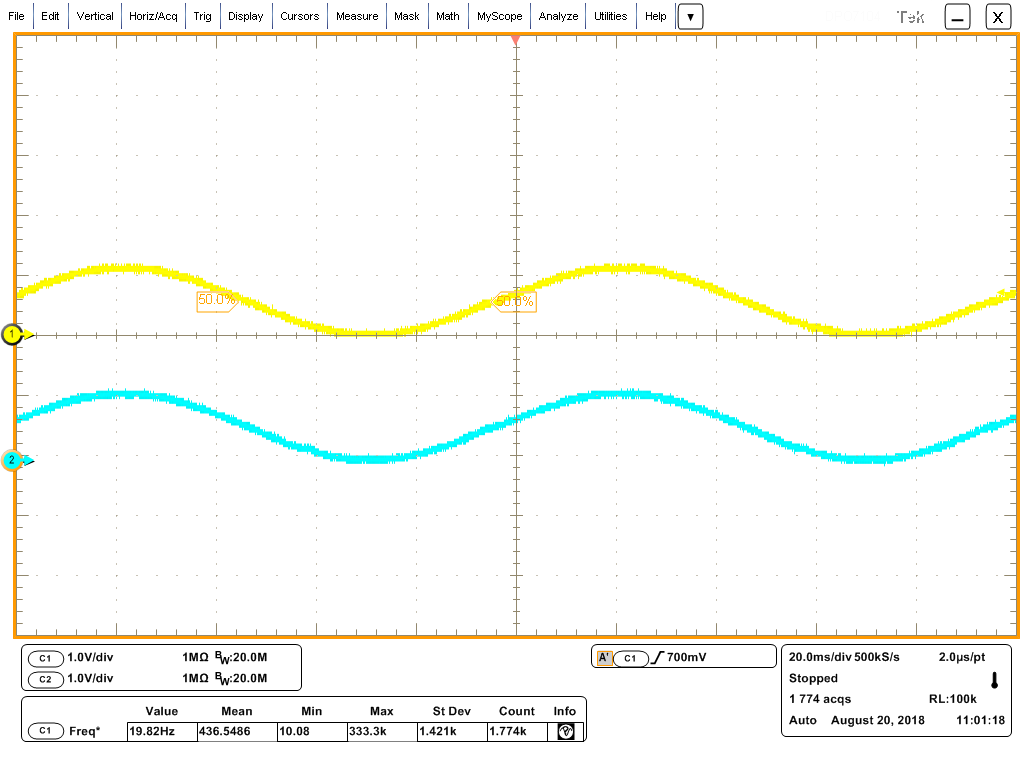

I captured the PWM+/- (actually it was captured after LPF on board.) as below.

I change the setting like sine wave, triangular, Impulse, Infinite, single shot... but it always shows in phase signal on both PWM+ and PWM-.

Could you advise why I cannot see differential signal?

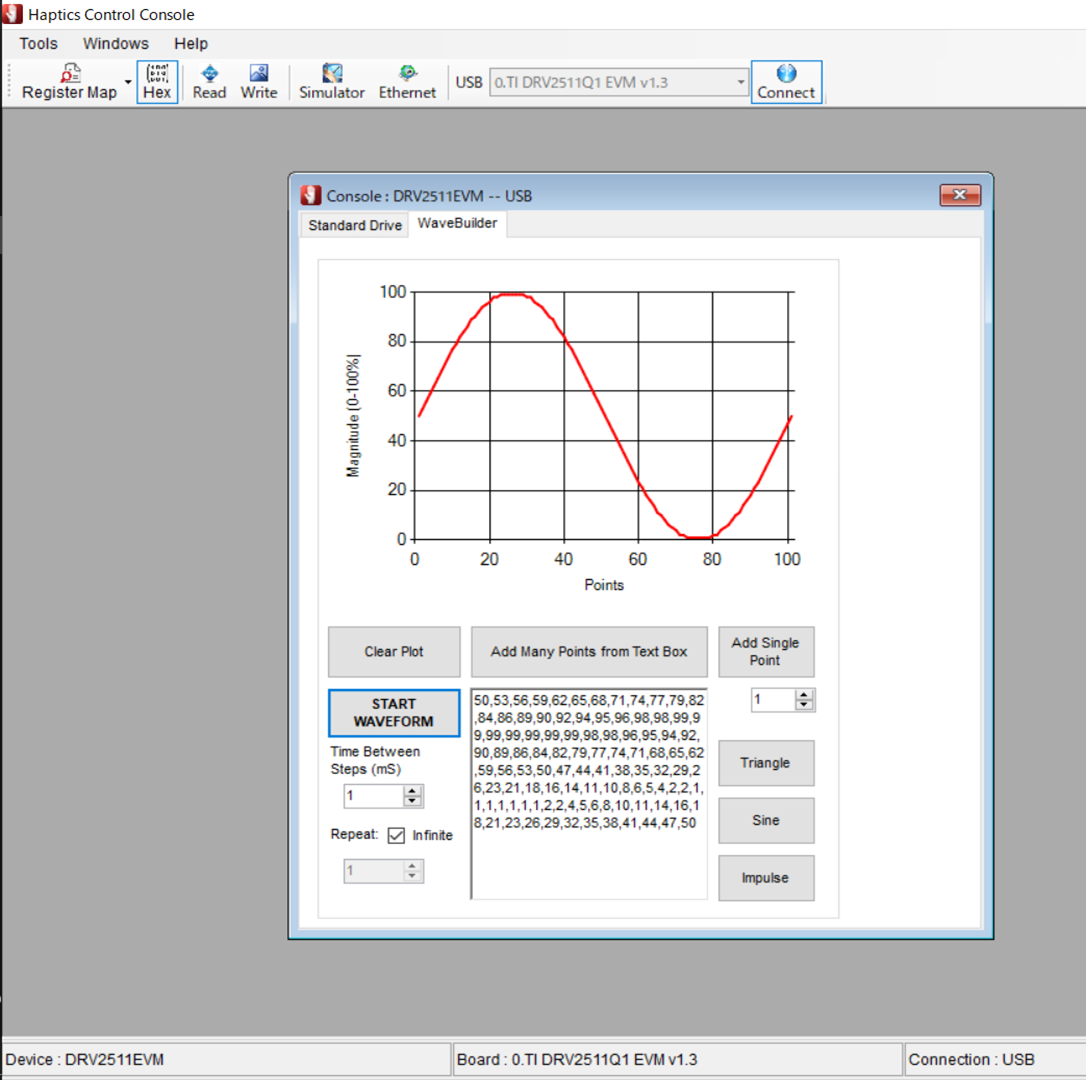

Here is the capture of the GUI.

My board are DRV2511Q1EVM AAP063E2.

I could see differential waveform on PWM+/- if I use standard drive tab.

regards,

0 Shinji Tsuji over 7 years ago in reply to Shinji Tsuji

I updated the firmware to 1p5 and the issue resolved.

Thank you for your support.
