TPS56C215: MODE pin resistor setting

Hong Jieun

Part Number: TPS56C215

Hi,

I have a question about TPS56C215 mode pin resistor setting.

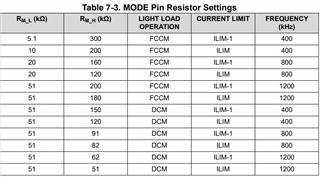

According to datasheet, When I set FCCM, ILIM, 1200kHz mode, the Rm_H is 180k and Rm_L is 51k.

But When I set the same mode with WEBENCH power designer, it use different value with datasheet.

Please let me know it is correct.

0 Amod Vaze over 1 year ago

Thanks for letting us know. Please follow the datasheet recommendation from table 7-3. I’ll assign this to WEBENCH team who can take a look at this.

0 Shaheen Makandar over 1 year ago

Hi Hong Jieun,

We will correct the WEBENCH model for the device and get back to you once the update is available on ti.com.

Regards

Shaheen

Power management forum
