BQ34Z100-R2: After the learning cycle S0S1S2, FC=1, but VOK=0, is Qmax updated, can I discharge?

FC=1, but VOK=1,s Qmax updated? can I discharge?

Hi Cong,

VOK, checks if the voltage is ok for a QMAX update.

Achieving The Successful Learning Cycle (tij.co.jp) this document may be useful for you it explains how to do a learning cycle. 3.1 explains VOK.

Regards,

Evan

First, I confirmed the battery chemical ID, 12 battery chemical ID 448 or 445;

Step 2, the coulometer chip re-burn the original firmware 0100_2_02-bq34z100.bqz,

Step 3: Update the register parameters of the coulometer, select the chemical ID, and then calibrate the voltage and current temperature;

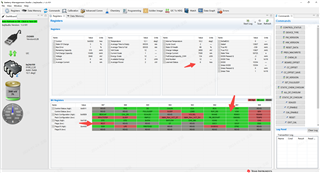

Step 4. Discharge in accordance with manual instructions, send IT ENABLE, after full FC=1, Update Status is updated to 05, Qmax Cell 0 is also updated;

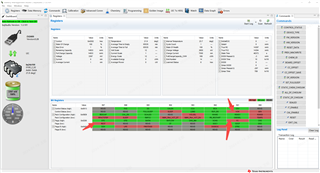

Step 5: Wait 17 hours, VOK flag bit is not clear 0;

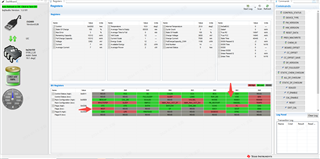

My parameter Settings are shown in the table below. The register parameters I changed have been marked in red, and Upstatus and Qmax Cell 0 have been marked in yellow.寄存器参数.csv...

Is it because the standing current is not 0? The standard voltage of this battery is 3.2V, the charging voltage is 3.65V, and the voltage is still 3.4V after 24 hours of charging

寄存器参数new.xls

The parameter list is this. I changed it in red

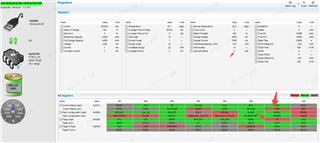

After discharge, the Update Status has changed to 06.

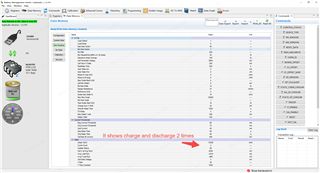

Considering that I have 12 batteries in series, do I need to charge and discharge again to make the Update Statuss become 0E? If needed，is it true that after charging, the Update Statuss changes to 0E, and then discharge, and the R_a0x internal resistance updates to 0055?

After the second charge, what conditions need to be met to discharge it? I have fully charged the battery, FC=1, should I wait until VOK becomes 0 before discharge?

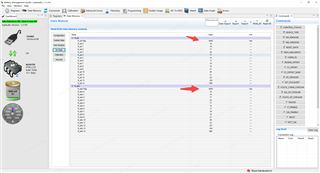

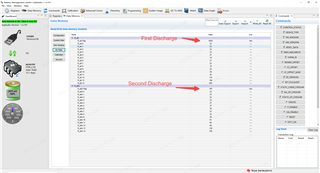

Hello, the first round of battery discharge is finished, Update Status=06, then I start the second round of charge and discharge, the end of the second round of charge is FC=1,VOK=0, and then discharge the battery, RA is updated during the discharge process, after the discharge, the battery is left for one night, the Update Status does not jump to 0E, but VOK=0.

The first question is, is the maximum BQZ100-R2 Update Status only 6? I saw it in BQ34Z100-R2 Technical Reference Manual (Rev.A), screenshot below,

BQ34Z100-R2 Technical Reference Manual (Rev. A) (ti.com.cn)

It's on page 49.

Second question, I saw in the forum that 0E means that the battery balance is turned on, the difference between 06 and 0E is only to update one side Qmax.

Best wishes and thanks, have a nice day.

Hello, when producing the documents according to the instructions, firstly import the srec file after voltage, current and temperature calibration, and then import the parameters of the GG file after learning, I found that the parameters could not be written in this step.

Follow the steps below：

(1) Export the learned GG file. Open GG file with Notepad and change Cycle Count = 0, Qmax Cycle Count = 0, Update Status = 02, and so on.

(2) Import the SREC/SENC file backed up in the previous preparation. Then import the GG file you just modified. Reset a record such as Lifetime.

(3) the export volume file SREC/SENC/BQFS/OTFS/GMFS/DFFS files.

Hi,

You are receiving this error due to CC Delta being too small.

more information on cc delta here

(+) BQ34Z100-G1: CC delta - Power management forum - Power management - TI E2E support forums

Regards,

Evan

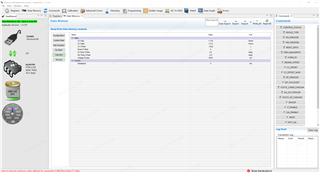

But the battery after charge and discharge learning, this value is 1.314, what should I do? Even after your original files are burned, CC Delta is 1.314.

Hi,

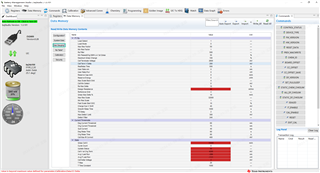

So, I have taken a closer look at things, and I noticed that there appears to be some offset in your current readings, which would explain your error.

In the screenshots you shared were you discharging?

Is the sense resistor you are using within design specifications?

BQ34Z100-G1 Wide Range Fuel Gauge with Impedance Track Technology datasheet (Rev. D) (ti.com)

Regards,

Evan
