PSPICE-FOR-TI: TPS562206: Error(ORCAP-2398)

Taroimo

Part Number: PSPICE-FOR-TI
Other Parts Discussed in Thread: TPS562206

Tool/software:

Dear TI team

I have a question related to the content of the thread below.

https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/1111438/tps3899-error-orcap-2398

When I try to call "TPS562206" from the PSpiceforTI library,

the "ORCAP-2398" error occurs and the call fails.

This problem has been confirmed on my customer's PC and my own PC.

I think the quickest way to avoid this error is to download the following PSpice model directly from the web page, modify the schematic, and then SIM it.

Is the above understanding correct?

Best Regards,

Taroimo

over 1 year ago

0 JC Zhu over 1 year ago

TI__Mastermind 37350 points

Hi Taroimo,

I just opened the design from PSpice for TI and it simulates:

At what point did you receive the error message?

-JC

0 Taroimo over 1 year ago in reply to JC Zhu

Intellectual 680 points

Hi JC,

Thank you for your prompt response.

The "Open Model Test Circuit" doesn't even appear in the first place.

So when I clicked on "Place Symbol" to try to call up the symbol,

the error "ORCAP-2398" was displayed.

By the way, the tool version is the latest (23.1-2024-s001).

Best Regards,

Taroimo

0 JC Zhu over 1 year ago in reply to Taroimo

TI__Mastermind 37350 points

Hi Taroimo,

I just updated my library and got the same error message.

I'll let the team who made this model take a look.

THanks,
JC

0 Taroimo over 1 year ago in reply to JC Zhu

Intellectual 680 points

Hi JC,

Thank you for reproducing the problem.

Please let me know if you find anything.

Best Regards,

Taroimo

0 Lucia Gao over 1 year ago in reply to Taroimo

TI__Mastermind 30031 points

Hi Taroimo,

Pls kinldy let me check and get back to you by next Monday. Thank you.

BRs

Lucia

0 Lucia Gao over 1 year ago in reply to Lucia Gao

TI__Mastermind 30031 points

Hi Taroimo,

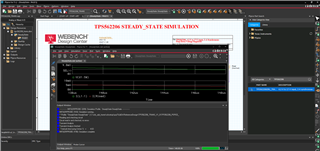

After I downloaded the model from ti web, I can run the model successfully with the simulation results as shown below. Could you pls just download the PSpice model directly from the web page, modify the schematic, and then SIM it?

Thank you.

BRs

Lucia
