TPS629206: Pspice model required

NILESH SABALE

Prodigy 40 points

Part Number: TPS629206

Tool/software:

Hello all,

Please provide the P-spice model for TPS629206-Q1.

Thanks and Regards,

Nilesh Sabale.

Lead Engineer- Electronics Design

M: +919881566177

T: +91 (20) 6674 6372

Renishaw MSL

S No 283, Hissa no. 2,

S No 284, Hissa no. 2 & 3A,

Raisoni Estate, Village Mann,

Taluka Mulshi, Pune-411057,

Maharashtra, India.

11 months ago

0 Colin Chen 11 months ago

TI__Mastermind 21161 points

Hi,

Please see below https://www.ti.com/lit/zip/slvmds1

Thanks,

Colin

0 NILESH SABALE 11 months ago in reply to Colin Chen

Prodigy 40 points

I have tried with that model but facing below error while creating the part with New macro wizard in TINA TI.

0 Colin Chen 11 months ago in reply to NILESH SABALE

TI__Mastermind 21161 points

Hi,

You should open it with PSPICE for TI:https://www.ti.com/tool/PSPICE-FOR-TI?keyMatch=pspice%20for%20ti%20download&tisearch=universal_search

Thanks,

Colin

0 NILESH SABALE 11 months ago in reply to Colin Chen

Prodigy 40 points

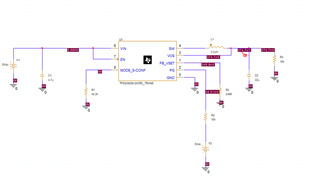

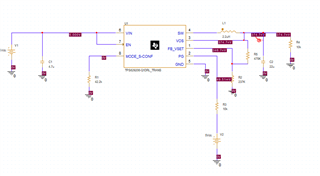

Now I am able to add the desired circuit for simulation (3.3 V fixed output). But not able to see the 3.3V at output. Is anything is missing in circuit.

0 NILESH SABALE 11 months ago in reply to NILESH SABALE

Prodigy 40 points

Please ignore earlier snaps

0 Colin Chen 11 months ago in reply to NILESH SABALE

TI__Mastermind 21161 points

Hi,

I don't understand your meaning.

Colin

0 NILESH SABALE 11 months ago in reply to Colin Chen

Prodigy 40 points

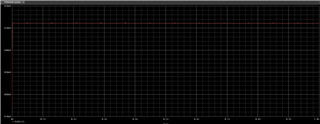

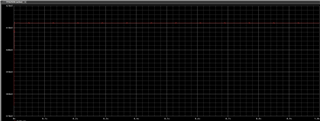

Output voltage is approximately 0V. It suppose to be 3.3V as per configuration in circuit diagram.

0 Colin Chen 11 months ago in reply to NILESH SABALE

TI__Mastermind 21161 points

HI，

I have duplicated your setting and see it is normal to output.

I suggest you can directly change the setting with preliminary circuit, not change any simulation profiles.

Hope it will hope you.

Colin
