BQ34110: BQ34110: Schematic for review

Udesh Singla

Intellectual 490 points

Part Number: BQ34110

Tool/software:

We have made the schematic for BQ34110

Our specs:

VCC_BATT_IN: 9-12.6V

We are using the 3 cell battery pack directly in which we done have the access of each individual cell, we are getting directly 3 cell voltage which ranges from 9V to 12.6V

Please find the below attached schematic:

.BQ34110_Fuel_Gauge_A0-01.pdf

Kindly check and provide the review comments

9 months ago

0 Adrian 9 months ago

TI__Mastermind 37741 points

Hello,

I review the schematic and I do not see any obvious mistakes. I don't regularly see the design choice used for the communication lines however, that should not be a problem.

Regards,

Adrian

0 Udesh Singla 9 months ago in reply to Adrian

Intellectual 490 points

HI Adrian

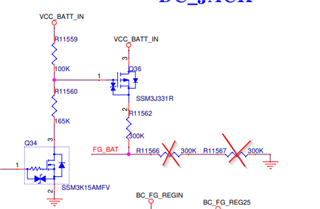

Thanks for sharing the feedback. i have some doubt regarding the mosfet circuitry and there resistor divider values, kindly help to check that values once.

0 Adrian 9 months ago in reply to Udesh Singla

TI__Mastermind 37741 points

Hello Udesh,

Thank you for drawing my attention to that part of the schematic.

Those resistors are not needed. Also, there should be a 3300pF cap between FG_BAT and ground. I am referencing our EVM schematic when reviewing your schematic. www.ti.com/.../sluubi1a.pdf

Regards,

Adrian
