BQ76952: TIDA-010216,

Furkan khan

Part Number: BQ76952
Other Parts Discussed in Thread: TIDA-010216

Tool/software:

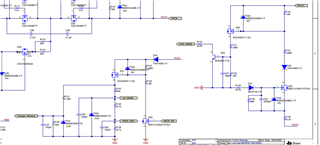

Please explain this circuit. How does it work LD WAKE and PACK ADC. Please explain Load detect and charger detect circuit in TIDA-010216

9 months ago

0 Furkan khan 9 months ago

Prodigy 10 points

Please share how to detect load and charger.

0 Alexis_H 9 months ago in reply to Furkan khan

TI__Genius 17675 points

Hello Furkan,

This previous forum post should help explain what you’re looking for: BQ76952: TIDA-010216.

Best Regards,
Alexis

0 Furkan khan 9 months ago in reply to Alexis_H

Prodigy 10 points

I did not get you. I have some doubts with attached schematic.

0 Alexis_H 9 months ago in reply to Furkan khan

TI__Genius 17675 points

Hello Furkan,

I apologize if there was confusion caused from the previous post I shared. They included 2 different schematic images (one of them was the one you were referring to), and they did explain how both worked.

As discussed in the previous post, if the PACK_EN is enabled by the MCU and a load is connected to PACK+ and PACK-, the LD_WAKE pin (that is connected to the MCU) will see a voltage and then the MCU will wake up the AFE for discharging.

If the charger is reversed, a larger voltage appears on the PACK-, goes through the charger reverse pin connected to the MCU ADC, and then informs the MCU that a reverse charger is connected. The MCU will then give an alarm.

Best Regards,
Alexis

0 Furkan khan 9 months ago in reply to Alexis_H

Prodigy 10 points

Respected Alexis,

Thanks for your valuable time . May you share total circuit explanation like , CHG_WAKE, PACK_ADC. And method of detect charger and load.

0 Alexis_H 9 months ago in reply to Furkan khan

TI__Genius 17675 points

Hello Furkan,

This previous post may assist you as well with explaining CHG_WAKE and PACK_ADC: TIDA-010216 Questions

Best Regards,
Alexis
