TPS1HC30-Q1: how to calculate ILIM

VIOLA LIAO

Prodigy 110 points

Part Number: TPS1HC30-Q1

Tool/software:

Hi TI E2E,

I'm designing the RILIM value and I need to consider the power loss of the resistor.

What the KILIM value is? ( now my setting is current limit 6A; RILIM=11.3kohm; KCL=88A*kohm.)

How many current (ILIM) flow into RILIM?

What the size of RILIM should I choose? (0805 or 0603 or 0402)

what's the value of the comparator's Vcl,th?

BR,

Viola

7 months ago

0 Patrick Shalton 7 months ago

TI__Mastermind 28420 points

Hi Viola,

The current flowing out of the ILIM pin is nominal, on the order of 10-70uA, so an 0402 resistor is fine. RILIM does not need to be rated for a high power, and you can consider other factors like size and cost.

Thanks,

Patrick

0 VIOLA LIAO 7 months ago in reply to Patrick Shalton

Prodigy 110 points

thanks for your reply.

I think the RILIM value is to adjust the comparator level right?

how about the Vcl,th value is?

0 Patrick Shalton 7 months ago in reply to VIOLA LIAO

TI__Mastermind 28420 points

Hi Viola,

This device uses RILIM for a current comparison, not a comparison to Vcl,th, so Vcl,th is not relevant here.

Thanks,

Patrick

0 VIOLA LIAO 7 months ago in reply to Patrick Shalton

Prodigy 110 points

Hi Patrick,

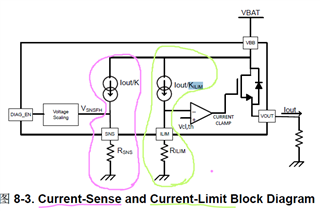

If so, could you explain the behavior and relationship of below circuit's RILIM, Iout/KILIM and Vcl,th?

BR,

Viola

0 Patrick Shalton 7 months ago in reply to VIOLA LIAO

TI__Mastermind 28420 points

Hi Viola,

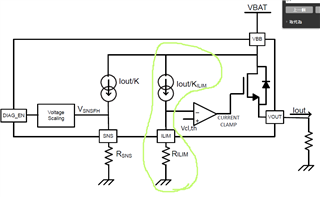

Apologies for the confusion, this picture is only a very abstracted representation of this device's current limit function. This image is more closely accurate to the TPSxH devices.

Thanks,

Patrick
