TUSB546A-DCI: Schematic Review

I've uploaded my Design Smart PDF in the attached Google Drive.

Hi Tyler,

Thanks for your patience.

Here is the review:

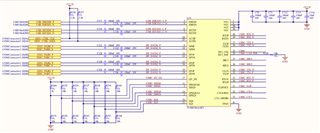

1) Replace these with 330nF capacitors

2) Why do you have two USB-C connectors? Is this for the flip orientation? I haven't seen a connector shown like this before.

3) The line capacitance of the ESD may be a bit high at .42pF. I recommend a line capacitance of approx. 0.25pF with a clamping voltage of about 5V.

4) This mean AUX snooping is always enabled, is this correct? Will this part only be used in GPIO mode?

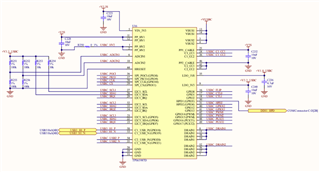

I will reassign to PD to review the schematic of the PD controller.

Also have a look at the TUSB546 EVM schematics for a reference if needed.

https://www.ti.com/lit/ug/sllu251/sllu251.pdf?ts=1743090116990&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FTUSB546A-DCI

1) Okay

2) This is to simplify the schematic. It's one connector but it's displayed as Part A and Part B to make it easier to read.

3) Okay. I will find something closer to 0.25pF to use.

4) I'm designing in the option for it to be used in either mode depending on BOM population. I would prefer using it in GPIO mode when everything is tested and tuned properly.

Hello,

Please use the attached checklist for schematic review.

Regards,
Chris

/cfs-file/__key/communityserver-discussions-components-files/196/Mass-Market-Schematic-Checklist-Rev-2p1.xlsx
