TPS51604: TPS51604 unresponsive - need a correct starting sequence

Niko

Part Number: TPS51604

Tool/software:

Dear TI support team,

We have big trouble in using the TPS51604. Sometimes the chip does not respond after a power cycle. We are experiencing a similar issue to what's described in the following threads:

https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/1326343/tps51604-tps51604-occasionally-becomes-unresponsive-after-a-power-cycle/5048394?focus=true

https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/453327/tps51604-powerup-state

We have tried all tips in these threads (starting in every power mode possible), but the problem is still there...

Could you please provide the exact power-up and configuration time sequence on each pin (VDD, SKIP, PWM, ...) to start correctly the TPS51604 ? maybe a piece of code ?

Bests regards,

Nicolas

3 months ago

0 yihe 3 months ago

TI__Guru 65750 points

The engineer is OOO and he will support you when back next week.

Regards

Yihe

0 Mahmoud Harmouch 3 months ago

TI__Mastermind 28200 points

Hello,

Did you try the pull down resistor from switch node to GND?

Regards

0 Niko 3 months ago in reply to Mahmoud Harmouch

Prodigy 20 points

Dear Mahmoud,

Thanks for your answer, in my case I need a firmware only solution please. I am using 2 component TPS51604 in a full bridge architecture.

Bests regards,

0 Mahmoud Harmouch 3 months ago in reply to Niko

TI__Mastermind 28200 points

Hello,

Is that possible in your power sequence, the 5V supply comes first? or the 5V is a step down from the power stage supply?

Regards

0 Niko 3 months ago in reply to Mahmoud Harmouch

Prodigy 20 points

Hello,

The VDD 5V is a step down from the main power supply (Vin) that comes to the Mosfet bridge.

Regards,

0 Mahmoud Harmouch 2 months ago in reply to Niko

TI__Mastermind 28200 points

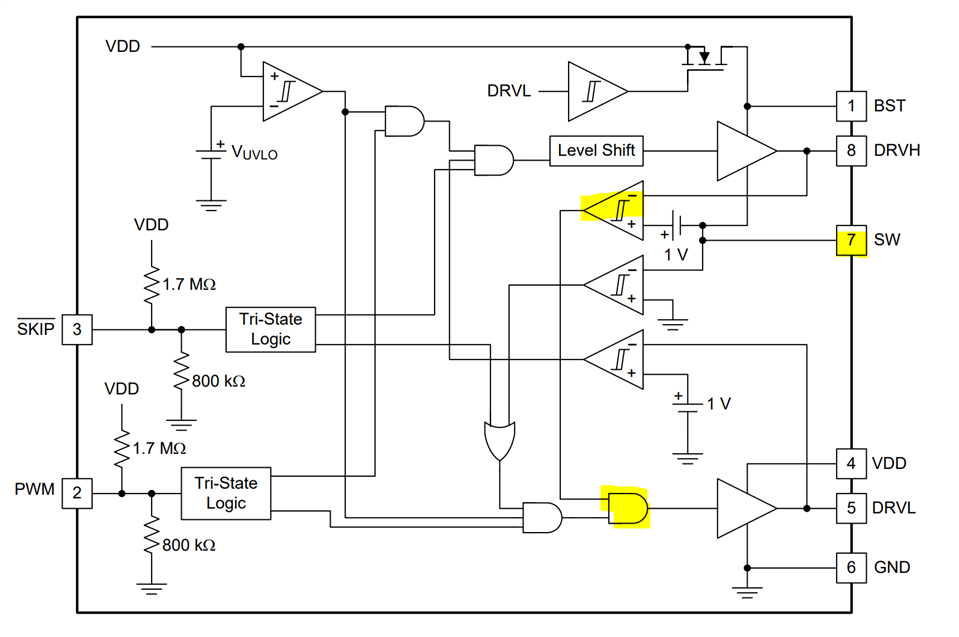

Hello, because VIN came first, the SW is floating. The highlighted comparator put 0 on the highlighted and gate and the DRVL stuck at 0. The boot capacitor can not charge. We recommend pull down 12K resistor from SW to GND. This provides path for the boot capacitor to charge.

Regards

0 Niko 2 months ago in reply to Mahmoud Harmouch

Prodigy 20 points

Mr Harmouch, thank you for the explanation, I understand. Maybe this issue needs a detailed warning on the datasheet...

I'm sorry to ask again, but is there another way, even an exotic one, to solve the problem without modifying the hardware?

Thanks for your help,

Bests regards,

+1 Mahmoud Harmouch 2 months ago in reply to Niko

TI__Mastermind 28200 points

Hello,

if the highlighted comparator put 0 on the and gate, the DRVL stays low and the boot capacitor can not be charged. Any input logic state does not the help to change the DRVL from low to high.

Regards
