LM5066I: DIODE pin's operating range

Matt Qi

Part Number: LM5066I

Tool/software:

Hi team,

We want to know the DIODE pin, it is used for the remote temperature sensing.

When we follow the reference design for the transistor MMBT3904, what's the working voltage on the DIODE pin among the whole temperature range?

We need this data for the evaluation. Thanks a lot!

Looking forward to your reply.

BR,

Matt.

2 months ago

0 Avishek Pal 2 months ago

TI__Mastermind 39000 points

0 Matt Qi 2 months ago in reply to Avishek Pal

TI__Expert 4510 points

Hi Avishek,

It should be the maximum value. Do we have the DIODE's voltage for normal operating?

Thanks a lot!

0 Avishek Pal 2 months ago in reply to Matt Qi

TI__Mastermind 39000 points

I don't know the operating voltage here. May I know the back ground of this question?

0 Matt Qi 2 months ago in reply to Avishek Pal

TI__Expert 4510 points

Hi Avishek,

The customer wants to know the working mechanism of the DIODE pin as the remote temperature sensing.

And they also need to do the degrading design for each pin.

That's why they need the operating voltage, and relationship between the voltage and the tested temperature.

Thanks a lot!

0 Avishek Pal 2 months ago in reply to Matt Qi

TI__Mastermind 39000 points

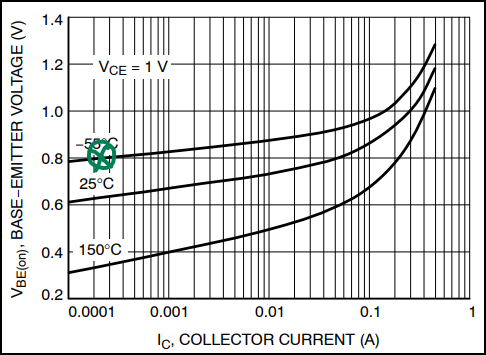

Base Emitter Voltage vs. Collector Current Plot of the MMBT3904L transistor.

The temperature is measured by means of a change in the diode voltage in response to a step in current supplied by the DIODE pin. The DIODE pin sources a constant 9.4 µA, but pulses 250 µA once every millisecond to measure the diode temperature.

Maximum operating voltage would be ~1V.
