LM63625-Q1: Request for Line and Load Regulation Data at 400 kHz

The-Tiep Pham

Part Number: LM63625-Q1

Tool/software:

Hi,

My customer has asked about the accuracy of the 5 V output of this IC. Currently, we are operating at a switching frequency of 400 kHz. However, the line and load regulation at this frequency is not provided in the datasheet.

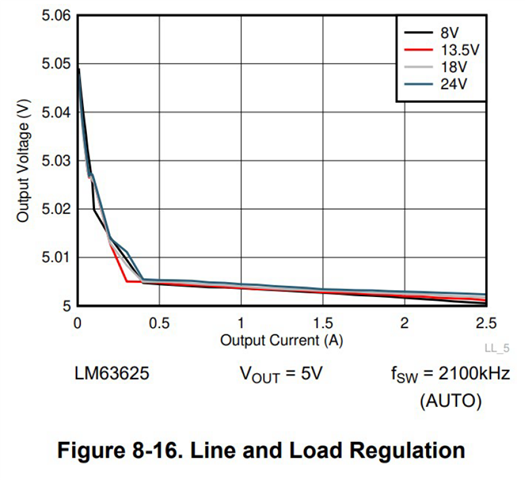

Could you please provide a graph similar to Figure 8-16 (shown below) and some explanations but corresponding to a 400 kHz switching frequency?

Thank you very much for your support and hope to hear you soon.

Best regards,
The-Tiep Pham.

2 months ago

0 Frank De Stasi 2 months ago

TI__Guru 72845 points

Hello

The line/load regulation will not be different for a 400kHz design.

The exact load point at which the regulator changes to PFM mode will change.

However, the maximum and minimum output voltage range will not change.

Thanks

0 The-Tiep Pham 2 months ago in reply to Frank De Stasi

Prodigy 10 points

Dear Mr. Frank,

Thank you for your response. This has resolved my issue.

However, if you could kindly provide any tested results or data related to this topic, it would serve as strong evidence to support my explanation to the customer.

I appreciate your assistance and look forward to your reply.

Best regards,
The-Tiep Pham.

+1 Frank De Stasi 1 month ago in reply to The-Tiep Pham

TI__Guru 72845 points

Hello

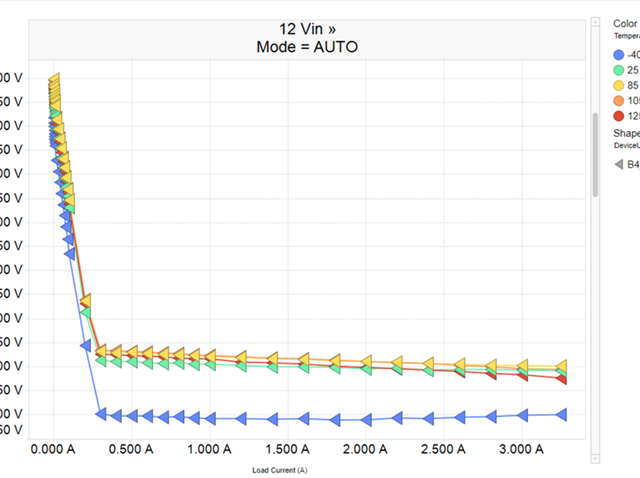

Please see image attached.

Thanks

0 The-Tiep Pham 1 month ago in reply to Frank De Stasi

Prodigy 10 points

Hi,

Thank you so much for your support, it helps me a lot.

Best regards,

Tiep Pham.
