TPS543C20: RSP pin connection query

Kaushal C

Intellectual 450 points

Part Number: TPS543C20

Tool/software:

Dear Team,

In the below mentioned thread it is mentioned not to make feedback resistor DNP.

TPS543C20: Sense pin connection confirmation

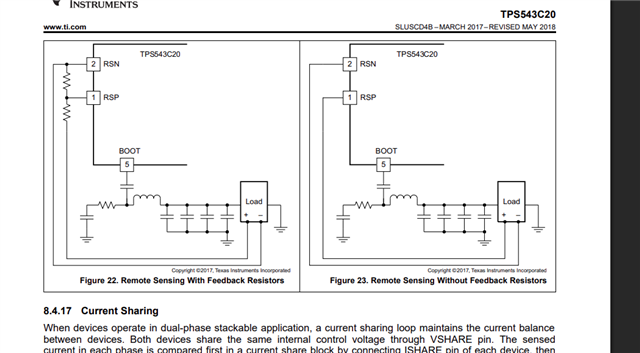

But datasheet suggest when load has sense option we don't need to connect it through feedback resistor.

Please confirm the connections.

Regards,
Kaushal

1 month ago

0 Britton Jones 1 month ago

TI__Genius 9216 points

Hi Kaushal,

This datasheet image is just representing 2 scenarios with different output voltage requirements. If your output voltage is higher than the voltage you are passing to RSP-RSN then you need feedback resistors.

Best regards,

Britton

0 Kaushal C 1 month ago in reply to Britton Jones

Intellectual 450 points

Britton,

In that case, when my load has sense feature. Do I still need to connect feedback resistor if my output voltage is equal to VSET value.

Regards,
Kaushal

0 Britton Jones 1 month ago in reply to Kaushal C

TI__Genius 9216 points

If your output voltage is the same as your reference voltage set by VSEL then you do not need a feedback divider.

Best,

Britton
