TPS25942A - About calculation formula of R(IMONmax)

Hi Kanemaru-san,

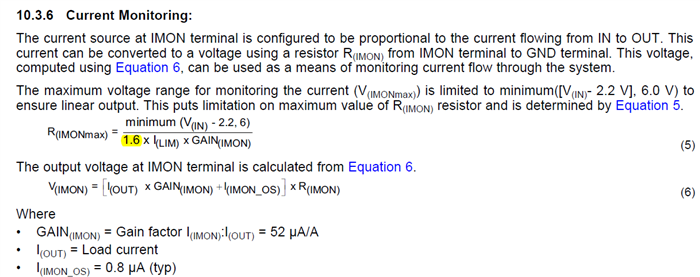

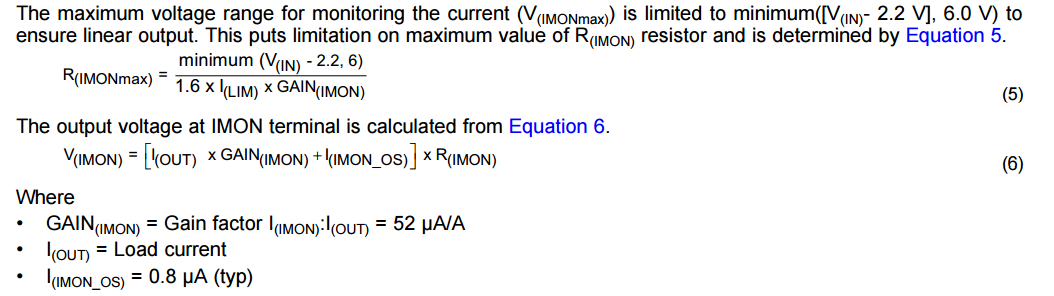

RIMON should be calculated based on equation (6). Calculated RIMON should be lower than R(IMONMAX) equation (5).

1.6 is tolerance factor added for calculating R(IMONMAX).

Regards,

Venkat

Hi Venkat-san,

Thank you for your prompt reply and advice.

However, our customer would like to know about "1.6".

Could you please let us know if you have any information?

Regards,

Kanemaru

Hi Venkat-san,

Thank you for the information.

I understand. Thank you very much.

Regards,

Kanemaru



Hi Venkat-san,



Our customer calculate "R(IMON)" and they would like to set "V(IMONmax)=3.0V.

Then, Which is correct (5) and (13)?

(5): R(IMON)=(4.0-2.2)/(10*52*10^-6)≒3.46kohm

(13): R(IMON)=3/(10*52*10^-6)≒5.77kohm



[Conditions]

-Vin=4.0V to 8.4V

-Iout=10A(max) (parallel operation)

 https://e2e.ti.com/support/power_management/switches/f/949/t/499238

-VIMONmax = 3.0V

- They don’t measure "I(FASTRIP)" (Remove 1.6).



Regards,

Kanemaru

Hi Kanemaru-san,

At 4V supply voltage, VIMON voltage is limited to (4-2.2) = 1.8V. RIMON resistor should be selected according to the equation (5).

What is the configuration used? Individual IMON for each channel or combined IMON?

Regards,
Venkat

Hi Venkat-san,



Thank you for the information.

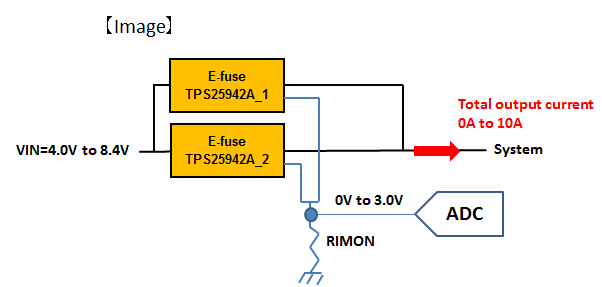

They use the dual phase of TPS25942A.

And, they would like to use “combined IMON”.

So, they would like to measure the total output current (From 0A to around 10A).

Could you please let us know if you have any concern?



Regards,

Kanemaru

Hi Venkat-san,



Thank you always for your kind support.

Could you please let us know the current status regarding this thread?

I’m looking forward to hearing from you.



Regards,

Kanemaru
