TPS65150-Q1: TPS65150-Q1 how to control CTRL pin

Lawrence He

Genius 3280 points

Part Number: TPS65150-Q1

Dear,

our clinet design TPS65150-Q1 when CTRL pin pull high to Vin, VGH can output 24V.

but CRTL connect TCOM control, VGH cannot to output voltage.

if any question, Please advise me.

Thanks,

Best regards,

Lawrence.102Q101-1A-PWB_V6.pdf

over 7 years ago

0 Brigitte over 7 years ago

TI__Guru 65300 points

Hello Lawrence,

Do I understand correct that you connect CTRL to VIN and VGH goes to 24V, you connect CTRL to output from controller and VGH does not go to 24V?

Is the same load connected to VGH in both cases? Can you measure the load current in both cases?

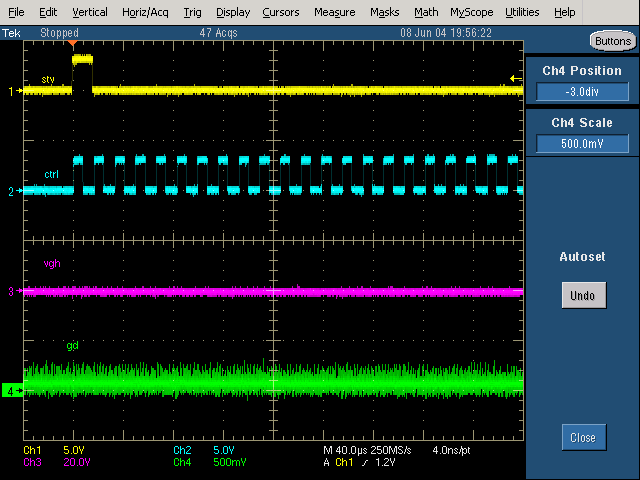

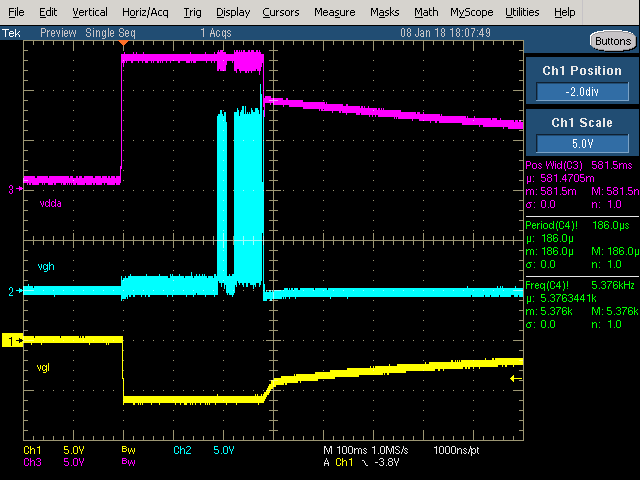

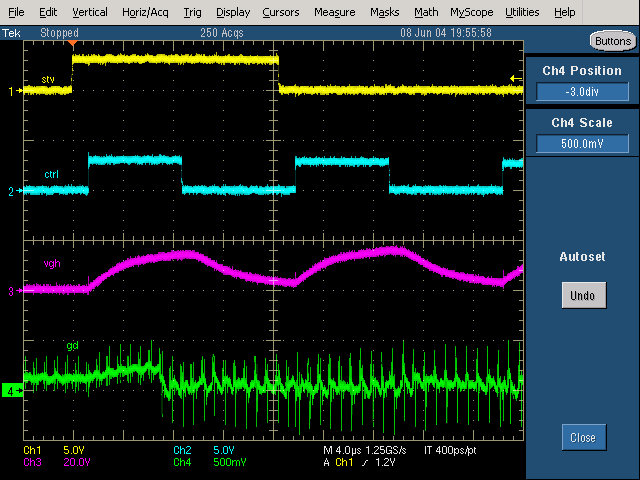

Please explain what is shown in the above scope plots.

Best regards,
Brigitte

0 Ilona over 7 years ago in reply to Brigitte

TI__Expert 8010 points

Hello Lawrence,

Is this issue still topical? Or have you managed to resolve it?

We would really appreciate a quick feedback.

Thank you.
Best Regards.
Ilona

0 Lawrence He over 7 years ago in reply to Ilona

Genius 3280 points

Hi, Ilona

our client LCD panel have some trouble, if any update will let you know.

Thank you for your help.

Best regards,

Lawrence.

0 Brigitte over 7 years ago in reply to Lawrence He

TI__Guru 65300 points

Hello Lawrence,

Thank you for the information. So we will close this thread for the moment. Just post a reply below (or create a new thread if the thread has locked due to time-out) if there are news from your customer.

Best regards,
Brigitte
