bq40z50: Draining cells too fast

Part Number: BQ40Z50
Other Parts Discussed in Thread: BQSTUDIO

Hello,

I have a 4-cell in series design that uses the bq40z50.

We are noticing that within a week the cell voltages are down from a nominal 3.6V per cell to about 3V per cell.

I've provided a schematic for review.

Thank you much,

Kevin

  • Hi Kevin,

    Thank you for the schematic. Please also include your gg.csv file for analysis.

    Thanks!

    Sincerely,
    Bryan Kahler
  • * Texas Instruments Data Flash File
    * File created Tue May 24 14:20:16 2016
    *
    * Device Number 4500
    * Firmware Version 0.12
    * Build Number 24
    * Order Number 0
    *
    * bqz Device Number 4500
    * bqz Firmware Version 0.12
    * bqz Build Number 24
    *
    * Field Order: Class name, Subclass name, Parameter name, Parameter Value, Units
    Calibration,Voltage,Cell Gain,12102,-
    Calibration,Voltage,Pack Gain,49647,-
    Calibration,Voltage,BAT Gain,49431,-
    Calibration,Current,CC Gain,1.010,mOhm
    Calibration,Current,Capacity Gain,1.010,mOhm
    Calibration,Current Offset,CC Offset,0,-
    Calibration,Current Offset,Coulomb Counter Offset Samples,64,-
    Calibration,Current Offset,Board Offset,0,-
    Calibration,Current Offset,CC Auto Config,07,hex
    Calibration,Current Offset,CC Auto Offset,-48,-
    Calibration,Temperature,Internal Temp Offset,0,degC
    Calibration,Temperature,External1 Temp Offset,0,degC
    Calibration,Temperature,External2 Temp Offset,0,degC
    Calibration,Temperature,External3 Temp Offset,0,degC
    Calibration,Temperature,External4 Temp Offset,0,degC
    Calibration,Internal Temp Model,Int Gain,-12143,-
    Calibration,Internal Temp Model,Int base offset,6232,-
    Calibration,Internal Temp Model,Int Minimum AD,0,-
    Calibration,Internal Temp Model,Int Maximum Temp,6232,0.1degK
    Calibration,Cell Temperature Model,Coeff a1,-11130,-
    Calibration,Cell Temperature Model,Coeff a2,19142,-
    Calibration,Cell Temperature Model,Coeff a3,-19262,-
    Calibration,Cell Temperature Model,Coeff a4,28203,-
    Calibration,Cell Temperature Model,Coeff a5,892,-
    Calibration,Cell Temperature Model,Coeff b1,328,-
    Calibration,Cell Temperature Model,Coeff b2,-605,-
    Calibration,Cell Temperature Model,Coeff b3,-2443,-
    Calibration,Cell Temperature Model,Coeff b4,4696,-
    Calibration,Cell Temperature Model,Rc0,11703,-
    Calibration,Cell Temperature Model,Adc0,11703,-
    Calibration,Cell Temperature Model,Rpad,0,-
    Calibration,Cell Temperature Model,Rint,0,-
    Calibration,Fet Temperature Model,Coeff a1,-11130,-
    Calibration,Fet Temperature Model,Coeff a2,19142,-
    Calibration,Fet Temperature Model,Coeff a3,-19262,-
    Calibration,Fet Temperature Model,Coeff a4,28203,-
    Calibration,Fet Temperature Model,Coeff a5,892,-
    Calibration,Fet Temperature Model,Coeff b1,328,-
    Calibration,Fet Temperature Model,Coeff b2,-605,-
    Calibration,Fet Temperature Model,Coeff b3,-2443,-
    Calibration,Fet Temperature Model,Coeff b4,4696,-
    Calibration,Fet Temperature Model,Rc0,11703,-
    Calibration,Fet Temperature Model,Adc0,11703,-
    Calibration,Fet Temperature Model,Rpad,0,-
    Calibration,Fet Temperature Model,Rint,0,-
    Calibration,Filter,Cell Voltage 1,145,-
    Calibration,Filter,Cell Voltage 2,145,-
    Calibration,Filter,Cell Voltage 3,145,-
    Calibration,Filter,Cell Voltage 4,145,-
    Calibration,Filter,Pack Voltage Out,10,-
    Calibration,Filter,Direct Battery Voltage,10,-
    Calibration,Filter,Summed Battery Voltage,145,-
    Calibration,Filter,Cell Temperature,145,-
    Calibration,Filter,FET Temperature,145,-
    Calibration,Current Deadband,Deadband,3,mA
    Calibration,Current Deadband,Coulomb Counter Deadband,9,116nV
    Settings,Protection,Protection Configuration,00,hex
    Settings,Protection,Enabled Protections A,ff,hex
    Settings,Protection,Enabled Protections B,7f,hex
    Settings,Protection,Enabled Protections C,c1,hex
    Settings,Protection,Enabled Protections D,0f,hex
    Settings,Permanent Failure,Enabled PF A,00,hex
    Settings,Permanent Failure,Enabled PF B,00,hex
    Settings,Permanent Failure,Enabled PF C,00,hex
    Settings,Permanent Failure,Enabled PF D,00,hex
    Settings,Configuration,Charging Configuration,00,hex
    Settings,Configuration,Temperature Enable,07,hex
    Settings,Configuration,Temperature Mode,04,hex
    Settings,Configuration,DA Configuration,17,hex
    Settings,Configuration,FET Options,05,hex
    Settings,Configuration,Sbs Gauging Configuration,04,hex
    Settings,Configuration,Sbs Configuration,20,hex
    Settings,Configuration,Power Config,00,hex
    Settings,Configuration,IO Config,00,hex
    Settings,Configuration,LED Configuration,d0,hex
    Settings,Configuration,SOC Flag Config A,0c8c,hex
    Settings,Configuration,SOC Flag Config B,8c,hex
    Settings,Configuration,Balancing Configuration,03,hex
    Settings,Configuration,IT Gauging Configuration,d4fe,hex
    Settings,AFE,AFE Protection Control,70,hex
    Settings,AFE,ZVCHG Exit Threshold,2200,mV
    Settings,Fuse,PF Fuse A,00,hex
    Settings,Fuse,PF Fuse B,00,hex
    Settings,Fuse,PF Fuse C,00,hex
    Settings,Fuse,PF Fuse D,00,hex
    Settings,Fuse,Min Blow Fuse Voltage,3500,mV
    Settings,Fuse,Fuse Blow Timeout,30,s
    Settings,BTP,Init Discharge Set,150,mAH
    Settings,BTP,Init Charge Set,175,mAH
    Settings,Manufacturing,Mfg Status init,0018,hex
    Protections,CUV,Threshold,2300,mV
    Protections,CUV,Delay,2,s
    Protections,CUV,Recovery,2500,mV
    Protections,CUVC,Threshold,2300,mV
    Protections,CUVC,Delay,2,s
    Protections,CUVC,Recovery,2500,mV
    Protections,COV,Threshold Low Temp,4300,mV
    Protections,COV,Threshold Standard Temp,4300,mV
    Protections,COV,Threshold High Temp,4300,mV
    Protections,COV,Threshold Rec Temp,4300,mV
    Protections,COV,Delay,2,s
    Protections,COV,Recovery Low Temp,3900,mV
    Protections,COV,Recovery Standard Temp,3900,mV
    Protections,COV,Recovery High Temp,3900,mV
    Protections,COV,Recovery Rec Temp,3900,mV
    Protections,OCC1,Threshold,1100,mA
    Protections,OCC1,Delay,6,s
    Protections,OCC2,Threshold,1200,mA
    Protections,OCC2,Delay,3,s
    Protections,OCC,Recovery Threshold,-200,mA
    Protections,OCC,Recovery Delay,5,s
    Protections,OCD1,Threshold,-11000,mA
    Protections,OCD1,Delay,6,s
    Protections,OCD2,Threshold,-13000,mA
    Protections,OCD2,Delay,3,s
    Protections,OCD,Recovery Threshold,200,mA
    Protections,OCD,Recovery Delay,5,s
    Protections,AOLD,Latch Limit,0,-
    Protections,AOLD,Counter Dec Delay,10,s
    Protections,AOLD,Recovery,5,s
    Protections,AOLD,Reset,15,s
    Protections,AOLD,Threshold,f4,hex
    Protections,ASCC,Latch Limit,0,-
    Protections,ASCC,Counter Dec Delay,10,s
    Protections,ASCC,Recovery,5,s
    Protections,ASCC,Reset,15,s
    Protections,ASCC,Threshold,77,hex
    Protections,ASCD,Latch Limit,0,-
    Protections,ASCD,Counter Dec Delay,10,s
    Protections,ASCD,Recovery,5,s
    Protections,ASCD,Reset,15,s
    Protections,ASCD,Threshold 1,77,hex
    Protections,ASCD,Threshold 2,e7,hex
    Protections,OTC,Threshold,55.0,1degC
    Protections,OTC,Delay,2,s
    Protections,OTC,Recovery,50.0,1degC
    Protections,OTD,Threshold,70.0,1degC
    Protections,OTD,Delay,2,s
    Protections,OTD,Recovery,65.0,1degC
    Protections,OTF,Threshold,85.0,1degC
    Protections,OTF,Delay,2,s
    Protections,OTF,Recovery,65.0,1degC
    Protections,UTC,Threshold,0,1degC
    Protections,UTC,Delay,2,s
    Protections,UTC,Recovery,5.0,1degC
    Protections,UTD,Threshold,-20.0,1degC
    Protections,UTD,Delay,2,s
    Protections,UTD,Recovery,-15.0,1degC
    Protections,HWD,Delay,10,s
    Protections,PTO,Charge Threshold,2000,mA
    Protections,PTO,Suspend Threshold,1800,mA
    Protections,PTO,Delay,1800,s
    Protections,PTO,Reset,2,mAh
    Protections,CTO,Charge Threshold,2500,mA
    Protections,CTO,Suspend Threshold,2000,mA
    Protections,CTO,Delay,54000,s
    Protections,CTO,Reset,2,mAh
    Protections,OC,Threshold,300,mAh
    Protections,OC,Recovery,2,mAh
    Protections,OC,RSOC Recovery,90,%
    Protections,CHGV,Threshold,500,mV
    Protections,CHGV,Delay,30,s
    Protections,CHGV,Recovery,-500,mV
    Protections,CHGC,Threshold,500,mA
    Protections,CHGC,Delay,2,s
    Protections,CHGC,Recovery Threshold,100,mA
    Protections,CHGC,Recovery Delay,2,s
    Protections,PCHGC,Threshold,50,mA
    Protections,PCHGC,Delay,2,s
    Protections,PCHGC,Recovery Threshold,10,mA
    Protections,PCHGC,Recovery Delay,2,s
    Permanent Fail,SUV,Threshold,2200,mV
    Permanent Fail,SUV,Delay,5,s
    Permanent Fail,SOV,Threshold,4500,mV
    Permanent Fail,SOV,Delay,5,s
    Permanent Fail,SOCC,Threshold,12000,mA
    Permanent Fail,SOCC,Delay,5,s
    Permanent Fail,SOCD,Threshold,-12000,mA
    Permanent Fail,SOCD,Delay,5,s
    Permanent Fail,SOT,Threshold,65.0,1degC
    Permanent Fail,SOT,Delay,5,s
    Permanent Fail,SOTF,Threshold,100.0,1degC
    Permanent Fail,SOTF,Delay,5,s
    Permanent Fail,Open Thermistor,Threshold,-50.0,1degC
    Permanent Fail,Open Thermistor,Delay,5,s
    Permanent Fail,Open Thermistor,Fet Delta,20.0,1degC
    Permanent Fail,Open Thermistor,Cell Delta,20.0,1degC
    Permanent Fail,QIM,Delta Threshold,15.0,%
    Permanent Fail,QIM,Delay,2,updates
    Permanent Fail,CB,Max Threshold,240,h
    Permanent Fail,CB,Delta Threshold,40,h
    Permanent Fail,CB,Delay,2,cycles
    Permanent Fail,VIMR,Check Voltage,3500,mV
    Permanent Fail,VIMR,Check Current,10,mA
    Permanent Fail,VIMR,Delta Threshold,500,mV
    Permanent Fail,VIMR,Delta Delay,5,s
    Permanent Fail,VIMR,Duration,100,s
    Permanent Fail,VIMA,Check Voltage,3700,mV
    Permanent Fail,VIMA,Check Current,50,mA
    Permanent Fail,VIMA,Delta Threshold,200,mV
    Permanent Fail,VIMA,Delay,5,s
    Permanent Fail,IMP,Delta Threshold,300,%
    Permanent Fail,IMP,Max Threshold,400,%
    Permanent Fail,IMP,Ra Update Counts,2,counts
    Permanent Fail,CD,Threshold,0,mAh
    Permanent Fail,CD,Delay,2,cycles
    Permanent Fail,CFET,OFF Threshold,5,mA
    Permanent Fail,CFET,OFF Delay,5,s
    Permanent Fail,DFET,OFF Threshold,-5,mA
    Permanent Fail,DFET,OFF Delay,5,s
    Permanent Fail,FUSE,Threshold,5,mA
    Permanent Fail,FUSE,Delay,5,s
    Permanent Fail,AFER,Threshold,100,-
    Permanent Fail,AFER,Delay Period,2,s
    Permanent Fail,AFER,Compare Period,5,s
    Permanent Fail,AFEC,Threshold,100,-
    Permanent Fail,AFEC,Delay Period,5,s
    Permanent Fail,2LVL,Delay,5,s
    Permanent Fail,OPNCELL,Threshold,5000,mV
    Permanent Fail,OPNCELL,Delay,5,s
    Advanced Charge Algorithm,Temperature Ranges,T1 Temp,0,degC
    Advanced Charge Algorithm,Temperature Ranges,T2 Temp,12,degC
    Advanced Charge Algorithm,Temperature Ranges,T5 Temp,20,degC
    Advanced Charge Algorithm,Temperature Ranges,T6 Temp,25,degC
    Advanced Charge Algorithm,Temperature Ranges,T3 Temp,30,degC
    Advanced Charge Algorithm,Temperature Ranges,T4 Temp,55,degC
    Advanced Charge Algorithm,Temperature Ranges,Hysteresis Temp,1,degC
    Advanced Charge Algorithm,Low Temp Charging,Voltage,4100,mV
    Advanced Charge Algorithm,Low Temp Charging,Current Low,1000,mA
    Advanced Charge Algorithm,Low Temp Charging,Current Med,1000,mA
    Advanced Charge Algorithm,Low Temp Charging,Current High,1000,mA
    Advanced Charge Algorithm,Standard Temp Charging,Voltage,4100,mV
    Advanced Charge Algorithm,Standard Temp Charging,Current Low,1000,mA
    Advanced Charge Algorithm,Standard Temp Charging,Current Med,1000,mA
    Advanced Charge Algorithm,Standard Temp Charging,Current High,1000,mA
    Advanced Charge Algorithm,High Temp Charging,Voltage,4100,mV
    Advanced Charge Algorithm,High Temp Charging,Current Low,1000,mA
    Advanced Charge Algorithm,High Temp Charging,Current Med,1000,mA
    Advanced Charge Algorithm,High Temp Charging,Current High,1000,mA
    Advanced Charge Algorithm,Rec Temp Charging,Voltage,4100,mV
    Advanced Charge Algorithm,Rec Temp Charging,Current Low,1000,mA
    Advanced Charge Algorithm,Rec Temp Charging,Current Med,1000,mA
    Advanced Charge Algorithm,Rec Temp Charging,Current High,1000,mA
    Advanced Charge Algorithm,Pre-Charging,Current,200,mA
    Advanced Charge Algorithm,Maintenance Charging,Current,200,mA
    Advanced Charge Algorithm,Voltage Range,Precharge Start Voltage,2500,mV
    Advanced Charge Algorithm,Voltage Range,Charging Voltage Low,2900,mV
    Advanced Charge Algorithm,Voltage Range,Charging Voltage Med,3600,mV
    Advanced Charge Algorithm,Voltage Range,Charging Voltage High,4100,mV
    Advanced Charge Algorithm,Voltage Range,Charging Voltage Hysteresis,0,mV
    Advanced Charge Algorithm,Termination Config,Charge Term Taper Current,250,mA
    Advanced Charge Algorithm,Termination Config,Charge Term Voltage,75,mV
    Advanced Charge Algorithm,Charging Rate of Change,Current Rate,1,steps
    Advanced Charge Algorithm,Charging Rate of Change,Voltage Rate,1,steps
    Advanced Charge Algorithm,Charge Loss Compensation,CCC Current Threshold,3520,mA
    Advanced Charge Algorithm,Charge Loss Compensation,CCC Voltage Threshold,4200,mV
    Advanced Charge Algorithm,Cell Balancing Config,Bal Time/mAh Cell 1,367,s/mAh
    Advanced Charge Algorithm,Cell Balancing Config,Bal Time/mAh Cell 2-4,514,s/mAh
    Advanced Charge Algorithm,Cell Balancing Config,Min Start Balance Delta,3,mV
    Advanced Charge Algorithm,Cell Balancing Config,Relax Balance Interval,18000,s
    Advanced Charge Algorithm,Cell Balancing Config,Min Rsoc for Balancing,80,%
    Gas Gauging,Current Thresholds,Dsg Current Threshold,100,mA
    Gas Gauging,Current Thresholds,Chg Current Threshold,50,mA
    Gas Gauging,Current Thresholds,Quit Current,10,mA
    Gas Gauging,Current Thresholds,Dsg Relax Time,1,s
    Gas Gauging,Current Thresholds,Chg Relax Time,60,s
    Gas Gauging,Design,Design Capacity mAh,2100,mAh
    Gas Gauging,Design,Design Capacity cWh,9620,cWh
    Gas Gauging,Design,Design Voltage,14800,mV
    Gas Gauging,Cycle,Cycle Count Percentage,90,%
    Gas Gauging,FD,Set Voltage Threshold,2500,mV
    Gas Gauging,FD,Clear Voltage Threshold,2500,mV
    Gas Gauging,FD,Set % RSOC Threshold,0,%
    Gas Gauging,FD,Clear % RSOC Threshold,5,%
    Gas Gauging,FC,Set Voltage Threshold,4200,mV
    Gas Gauging,FC,Clear Voltage Threshold,4100,mV
    Gas Gauging,FC,Set % RSOC Threshold,100,%
    Gas Gauging,FC,Clear % RSOC Threshold,95,%
    Gas Gauging,TD,Set Voltage Threshold,3200,mV
    Gas Gauging,TD,Clear Voltage Threshold,3300,mV
    Gas Gauging,TD,Set % RSOC Threshold,6,%
    Gas Gauging,TD,Clear % RSOC Treshold,8,%
    Gas Gauging,TC,Set Voltage Threshold,4200,mV
    Gas Gauging,TC,Clear Voltage Threshold,4100,mV
    Gas Gauging,TC,Set % RSOC Threshold,100,%
    Gas Gauging,TC,Clear % RSOC Threshold,95,%
    Gas Gauging,State,Cycle Count,3,-
    Gas Gauging,State,Qmax Cell 1,1991,mAh
    Gas Gauging,State,Qmax Cell 2,1994,mAh
    Gas Gauging,State,Qmax Cell 3,1993,mAh
    Gas Gauging,State,Qmax Cell 4,1993,mAh
    Gas Gauging,State,Qmax Pack,1991,mAh
    Gas Gauging,State,Qmax Cycle Count,8,-
    Gas Gauging,State,Update Status,0a,-
    Gas Gauging,State,Cell 1 Chg Voltage at EoC,4076,mV
    Gas Gauging,State,Cell 2 Chg Voltage at EoC,4076,mV
    Gas Gauging,State,Cell 3 Chg Voltage at EoC,4075,mV
    Gas Gauging,State,Cell 4 Chg Voltage at EoC,4075,mV
    Gas Gauging,State,Current at EoC,221,mA
    Gas Gauging,State,Avg I Last Run,-372,mA
    Gas Gauging,State,Avg P Last Run,-542,cW
    Gas Gauging,State,Delta Voltage,6,mV
    Gas Gauging,State,Temp k,1.87,degC/256mW
    Gas Gauging,State,Temp a,4475,-
    Gas Gauging,State,Max Avg I Last Run,-899,mA
    Gas Gauging,State,Max Avg P Last Run,-1301,cW
    Gas Gauging,IT Cfg,Load Select,7,-
    Gas Gauging,IT Cfg,Load Mode,0,-
    Gas Gauging,IT Cfg,Design Resistance,103,mOhms
    Gas Gauging,IT Cfg,User Rate-mA,0,mA
    Gas Gauging,IT Cfg,User Rate-cW,0,cW
    Gas Gauging,IT Cfg,Reserve Cap-mAh,0,mAh
    Gas Gauging,IT Cfg,Reserve Cap-cWh,0,cWh
    Gas Gauging,IT Cfg,Pack Resistance,30,mOhms
    Gas Gauging,IT Cfg,System Resistance,0,mOhms
    Gas Gauging,IT Cfg,Ra Filter,50.0,%
    Gas Gauging,IT Cfg,Ra Max Delta,15,%
    Gas Gauging,IT Cfg,Reference Grid,4,-
    Gas Gauging,IT Cfg,Resistance Parameter Filter,65142,-
    Gas Gauging,IT Cfg,Near EDV Ra Param Filter,59220,-
    Gas Gauging,IT Cfg,Qmax Delta,5,%
    Gas Gauging,IT Cfg,Qmax Upper Bound,130,%
    Gas Gauging,IT Cfg,Term Voltage,12000,mV
    Gas Gauging,IT Cfg,Term Voltage Delta,300,mV
    Gas Gauging,IT Cfg,Term Min Cell V,2800,mV
    Gas Gauging,IT Cfg,Voltage Consistency Delta,300,mV
    Gas Gauging,IT Cfg,Fast Scale Start SOC,10,%
    Gas Gauging,Smoothing,Smooth Relax Time,1000,s
    Gas Gauging,Condition Flag,Max Error Limit,100,%
    Gas Gauging,Max Error,Time Cycle Equivalent,24,h
    Gas Gauging,Max Error,Cycle Delta,0.05,%
    Gas Gauging,SoH,SoH Load Rate,5.0,hour Rate
    Gas Gauging,Turbo Cfg,Min Turbo Power,0,cW
    Gas Gauging,Turbo Cfg,Max C Rate,-4,C
    Gas Gauging,Turbo Cfg,High Frequency Resistance,23,mOhms
    Gas Gauging,Turbo Cfg,Reserve Energy %,0,%
    Power,Power,Valid Update Voltage,3500,mV
    Power,Shutdown,Shutdown Voltage,2200,mV
    Power,Shutdown,Shutdown Time,60,s
    Power,Shutdown,Charger Present Threshold,3000,mV
    Power,Sleep,Sleep Current,10,mA
    Power,Sleep,Bus Timeout,5,s
    Power,Sleep,Voltage Time,255,s
    Power,Sleep,Current Time,255,s
    Power,Sleep,Wake Comparitor,00,hex
    Power,Ship,FET Off Time,10,s
    Power,Ship,Delay,20,s
    Power,Ship,Auto Ship Time,1440,min
    Power,Power Off,Timeout,30,min
    Power,Manual FET Control,MFC Delay,60,s
    PF Status,Device Status Data,Safety Alert A,00,hex
    PF Status,Device Status Data,Safety Status A,00,hex
    PF Status,Device Status Data,Safety Alert B,00,hex
    PF Status,Device Status Data,Safety Status B,00,hex
    PF Status,Device Status Data,Safety Alert C,00,hex
    PF Status,Device Status Data,Safety Status C,00,hex
    PF Status,Device Status Data,Safety Alert D,00,hex
    PF Status,Device Status Data,Safety Status D,00,hex
    PF Status,Device Status Data,PF Alert A,00,hex
    PF Status,Device Status Data,PF Status A,00,hex
    PF Status,Device Status Data,PF Alert B,00,hex
    PF Status,Device Status Data,PF Status B,00,hex
    PF Status,Device Status Data,PF Alert C,00,hex
    PF Status,Device Status Data,PF Status C,00,hex
    PF Status,Device Status Data,PF Alert D,00,hex
    PF Status,Device Status Data,PF Status D,00,hex
    PF Status,Device Status Data,Fuse Flag,0000,hex
    PF Status,Device Status Data,Operation Status A,0000,hex
    PF Status,Device Status Data,Operation Status B,0000,hex
    PF Status,Device Status Data,Temp Range,00,hex
    PF Status,Device Status Data,Charging Status A,00,hex
    PF Status,Device Status Data,Charging Status B,00,hex
    PF Status,Device Status Data,Gauging Status,00,hex
    PF Status,Device Status Data,IT Status,0000,hex
    PF Status,Device Voltage Data,Cell 1 Voltage,0,mV
    PF Status,Device Voltage Data,Cell 2 Voltage,0,mV
    PF Status,Device Voltage Data,Cell 3 Voltage,0,mV
    PF Status,Device Voltage Data,Cell 4 Voltage,0,mV
    PF Status,Device Voltage Data,Battery Direct Voltage,0,mV
    PF Status,Device Voltage Data,Pack Voltage,0,mV
    PF Status,Device Current Data,Current,0,mA
    PF Status,Device Temperature Data,Internal Temperature,-273.2,degC
    PF Status,Device Temperature Data,External 1 Temperature,-273.2,degC
    PF Status,Device Temperature Data,External 2 Temperature,-273.2,degC
    PF Status,Device Temperature Data,External 3 Temperature,-273.2,degC
    PF Status,Device Temperature Data,External 4 Temperature,-273.2,degC
    PF Status,Device Gauging Data,Cell 1 Dod0,0,-
    PF Status,Device Gauging Data,Cell 2 Dod0,0,-
    PF Status,Device Gauging Data,Cell 3 Dod0,0,-
    PF Status,Device Gauging Data,Cell 4 Dod0,0,-
    PF Status,Device Gauging Data,Passed Charge,0,mAh
    PF Status,AFE Regs,AFE Interrupt Status,00,hex
    PF Status,AFE Regs,AFE FET Status,00,hex
    PF Status,AFE Regs,AFE RXIN,00,hex
    PF Status,AFE Regs,AFE Latch Status,00,hex
    PF Status,AFE Regs,AFE Interrupt Enable,00,hex
    PF Status,AFE Regs,AFE FET Control,00,hex
    PF Status,AFE Regs,AFE RXIEN,00,hex
    PF Status,AFE Regs,AFE RLOUT,00,hex
    PF Status,AFE Regs,AFE RHOUT,00,hex
    PF Status,AFE Regs,AFE RHINT,00,hex
    PF Status,AFE Regs,AFE Cell Balance,00,hex
    PF Status,AFE Regs,AFE AD/CC Control,00,hex
    PF Status,AFE Regs,AFE ADC Mux,00,hex
    PF Status,AFE Regs,AFE LED Output,00,hex
    PF Status,AFE Regs,AFE State Control,00,hex
    PF Status,AFE Regs,AFE LED/Wake Control,00,hex
    PF Status,AFE Regs,AFE Protection Control,00,hex
    PF Status,AFE Regs,AFE OCD,00,hex
    PF Status,AFE Regs,AFE SCC,00,hex
    PF Status,AFE Regs,AFE SCD1,00,hex
    PF Status,AFE Regs,AFE SCD2,00,hex
    System Data,Manufacturer Data,Manufacturer Info A Length,32,-
    System Data,Manufacturer Data,Manufacturer Info Block A01,61,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A02,62,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A03,63,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A04,64,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A05,65,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A06,66,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A07,67,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A08,68,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A09,69,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A10,6a,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A11,6b,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A12,6c,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A13,6d,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A14,6e,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A15,6f,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A16,70,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A17,71,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A18,72,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A19,73,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A20,74,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A21,75,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A22,76,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A23,77,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A24,7a,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A25,78,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A26,79,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A27,30,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A28,31,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A29,32,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A30,33,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A31,34,Hex
    System Data,Manufacturer Data,Manufacturer Info Block A32,35,Hex
    System Data,Integrity,Static DF Signature,0000,hex
    System Data,Integrity,Static Chem DF Signature,4e7f,hex
    System Data,Integrity,All DF Signature,0000,hex
    SBS Configuration,Data,Remaining AH Cap. Alarm,300,mAh
    SBS Configuration,Data,Remaining WH Cap. Alarm,432,cWh
    SBS Configuration,Data,Remaining Time Alarm,10,min
    SBS Configuration,Data,Initial Battery Mode,0081,hex
    SBS Configuration,Data,Specification Information,0031,hex
    SBS Configuration,Data,Manufacture Date,2016-5-11,date
    SBS Configuration,Data,Serial Number,0001,hex
    SBS Configuration,Data,Manufacturer Name,Fedco,-
    SBS Configuration,Data,Device Name,4DEJ_L,-
    SBS Configuration,Data,Device Chemistry,LION,-
    LED Support,LED Config,LED Flash Period,512,488us
    LED Support,LED Config,LED Blink Period,1024,488us
    LED Support,LED Config,LED Delay,100,488us
    LED Support,LED Config,LED Hold Time,4,s
    LED Support,LED Config,CHG Flash Alarm,10,%
    LED Support,LED Config,CHG Thresh 1,0,%
    LED Support,LED Config,CHG Thresh 2,20,%
    LED Support,LED Config,CHG Thresh 3,40,%
    LED Support,LED Config,CHG Thresh 4,60,%
    LED Support,LED Config,CHG Thresh 5,80,%
    LED Support,LED Config,DSG Flash Alarm,10,%
    LED Support,LED Config,DSG Thresh 1,0,%
    LED Support,LED Config,DSG Thresh 2,20,%
    LED Support,LED Config,DSG Thresh 3,40,%
    LED Support,LED Config,DSG Thresh 4,60,%
    LED Support,LED Config,DSG Thresh 5,80,%
    Black Box,Safety Status,1st Status Status A,00,hex
    Black Box,Safety Status,1st Status Status B,00,hex
    Black Box,Safety Status,1st Safety Status C,00,hex
    Black Box,Safety Status,1st Safety Status D,00,hex
    Black Box,Safety Status,1st Time to Next Event,0,s
    Black Box,Safety Status,2nd Status Status A,00,hex
    Black Box,Safety Status,2nd Status Status B,00,hex
    Black Box,Safety Status,2nd Safety Status C,00,hex
    Black Box,Safety Status,2nd Safety Status D,00,hex
    Black Box,Safety Status,2nd Time to Next Event,0,s
    Black Box,Safety Status,3rd Status Status A,00,hex
    Black Box,Safety Status,3rd Status Status B,00,hex
    Black Box,Safety Status,3rd Safety Status C,00,hex
    Black Box,Safety Status,3rd Safety Status D,00,hex
    Black Box,Safety Status,3rd Time to Next Event,0,s
    Black Box,PF Status,1st PF Status A,00,hex
    Black Box,PF Status,1st PF Status B,00,hex
    Black Box,PF Status,1st PF Status C,00,hex
    Black Box,PF Status,1st PF Status D,00,hex
    Black Box,PF Status,1st Time to Next Event,0,s
    Black Box,PF Status,2nd PF Status A,00,hex
    Black Box,PF Status,2nd PF Status B,00,hex
    Black Box,PF Status,2nd PF Status C,00,hex
    Black Box,PF Status,2nd PF Status D,00,hex
    Black Box,PF Status,2nd Time to Next Event,0,s
    Black Box,PF Status,3rd PF Status A,00,hex
    Black Box,PF Status,3rd PF Status B,00,hex
    Black Box,PF Status,3rd PF Status C,00,hex
    Black Box,PF Status,3rd PF Status D,00,hex
    Black Box,PF Status,3rd Time to Next Event,0,s
    Lifetimes,Voltage,Cell 1 Max Voltage,4111,mV
    Lifetimes,Voltage,Cell 2 Max Voltage,4855,mV
    Lifetimes,Voltage,Cell 3 Max Voltage,4607,mV
    Lifetimes,Voltage,Cell 4 Max Voltage,5519,mV
    Lifetimes,Voltage,Cell 1 Min Voltage,2200,mV
    Lifetimes,Voltage,Cell 2 Min Voltage,2277,mV
    Lifetimes,Voltage,Cell 3 Min Voltage,2280,mV
    Lifetimes,Voltage,Cell 4 Min Voltage,1,mV
    Lifetimes,Voltage,Max Delta Cell Voltage,4854,mV
    Lifetimes,Current,Max Charge Current,1533,mA
    Lifetimes,Current,Max Discharge Current,-1978,mA
    Lifetimes,Current,Max Avg Dsg Current,-1974,mA
    Lifetimes,Current,Max Avg Dsg Power,-3134,cW
    Lifetimes,Temperature,Max Temp Cell,41,degC
    Lifetimes,Temperature,Min Temp Cell,18,degC
    Lifetimes,Temperature,Max Delta Cell Temp,17,degC
    Lifetimes,Temperature,Max Temp Int Sensor,39,degC
    Lifetimes,Temperature,Min Temp Int Sensor,17,degC
    Lifetimes,Temperature,Max Temp Fet,24,degC
    Lifetimes,Safety Events,No Of COV Events,2,events
    Lifetimes,Safety Events,Last COV Event,6,cycles
    Lifetimes,Safety Events,No Of CUV Events,5,events
    Lifetimes,Safety Events,Last CUV Event,6,cycles
    Lifetimes,Safety Events,No Of OCD1 Events,0,events
    Lifetimes,Safety Events,Last OCD1 Event,0,cycles
    Lifetimes,Safety Events,No Of OCD2 Events,0,events
    Lifetimes,Safety Events,Last OCD2 Event,0,cycles
    Lifetimes,Safety Events,No Of OCC1 Events,0,events
    Lifetimes,Safety Events,Last OCC1 Event,0,cycles
    Lifetimes,Safety Events,No Of OCC2 Events,0,events
    Lifetimes,Safety Events,Last OCC2 Event,0,cycles
    Lifetimes,Safety Events,No Of AOLD Events,0,events
    Lifetimes,Safety Events,Last AOLD Event,0,cycles
    Lifetimes,Safety Events,No Of ASCD Events,0,events
    Lifetimes,Safety Events,Last ASCD Event,0,cycles
    Lifetimes,Safety Events,No Of ASCC Events,0,events
    Lifetimes,Safety Events,Last ASCC Event,0,cycles
    Lifetimes,Safety Events,No Of OTC Events,0,events
    Lifetimes,Safety Events,Last OTC Event,0,cycles
    Lifetimes,Safety Events,No Of OTD Events,0,events
    Lifetimes,Safety Events,Last OTD Event,0,cycles
    Lifetimes,Safety Events,No Of OTF Events,0,events
    Lifetimes,Safety Events,Last OTF Event,0,cycles
    Lifetimes,Charging Events,No Valid Charge Term,2,events
    Lifetimes,Charging Events,Last Valid Charge Term,5,cycles
    Lifetimes,Gauging Events,No Of Qmax Updates,0,events
    Lifetimes,Gauging Events,Last Qmax Update,0,cycles
    Lifetimes,Gauging Events,No Of Ra Updates,0,events
    Lifetimes,Gauging Events,Last Ra Update,0,cycles
    Lifetimes,Gauging Events,No Of Ra Disable,3,events
    Lifetimes,Gauging Events,Last Ra Disable,6,cycles
    Lifetimes,Power Events,No Of Shutdowns,3,events
    Lifetimes,Cell Balancing,Cb Time Cell 1,0,h
    Lifetimes,Cell Balancing,Cb Time Cell 2,0,h
    Lifetimes,Cell Balancing,Cb Time Cell 3,0,h
    Lifetimes,Cell Balancing,Cb Time Cell 4,0,h
    Lifetimes,Time,Total Fw Runtime,160,h
    Lifetimes,Time,Time Spent In UT,0,h
    Lifetimes,Time,Time Spent In LT,0,h
    Lifetimes,Time,Time Spent In STL,52,h
    Lifetimes,Time,Time Spent In RT,14,h
    Lifetimes,Time,Time Spent In STH,94,h
    Lifetimes,Time,Time Spent In HT,0,h
    Lifetimes,Time,Time Spent In OT,0,h
    Ra Table,R_a0,Cell0 R_a flag,0055,-
    Ra Table,R_a0,Cell0 R_a 0,50,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 1,54,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 2,68,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 3,110,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 4,150,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 5,114,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 6,129,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 7,134,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 8,135,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 9,151,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 10,165,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 11,392,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 12,634,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 13,1590,2^-10ohm
    Ra Table,R_a0,Cell0 R_a 14,7208,2^-10ohm
    Ra Table,R_a1,Cell1 R_a flag,0000,-
    Ra Table,R_a1,Cell1 R_a 0,52,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 1,56,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 2,71,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 3,109,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 4,146,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 5,112,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 6,128,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 7,129,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 8,127,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 9,136,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 10,147,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 11,381,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 12,621,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 13,1550,2^-10ohm
    Ra Table,R_a1,Cell1 R_a 14,7013,2^-10ohm
    Ra Table,R_a2,Cell2 R_a flag,0000,-
    Ra Table,R_a2,Cell2 R_a 0,51,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 1,55,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 2,70,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 3,108,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 4,145,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 5,111,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 6,126,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 7,128,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 8,126,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 9,135,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 10,148,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 11,341,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 12,547,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 13,1374,2^-10ohm
    Ra Table,R_a2,Cell2 R_a 14,6224,2^-10ohm
    Ra Table,R_a3,Cell3 R_a flag,0000,-
    Ra Table,R_a3,Cell3 R_a 0,50,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 1,54,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 2,68,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 3,106,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 4,144,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 5,110,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 6,124,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 7,126,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 8,124,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 9,131,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 10,144,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 11,333,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 12,551,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 13,1359,2^-10ohm
    Ra Table,R_a3,Cell3 R_a 14,6165,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a flag,0000,-
    Ra Table,R_a0x,xCell0 R_a 0,50,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 1,54,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 2,68,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 3,110,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 4,150,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 5,114,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 6,129,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 7,134,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 8,135,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 9,151,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 10,165,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 11,407,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 12,658,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 13,1651,2^-10ohm
    Ra Table,R_a0x,xCell0 R_a 14,7484,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a flag,0055,-
    Ra Table,R_a1x,xCell1 R_a 0,52,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 1,56,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 2,71,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 3,109,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 4,146,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 5,112,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 6,128,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 7,129,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 8,127,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 9,136,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 10,147,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 11,381,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 12,633,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 13,1580,2^-10ohm
    Ra Table,R_a1x,xCell1 R_a 14,7149,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a flag,0055,-
    Ra Table,R_a2x,xCell2 R_a 0,51,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 1,55,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 2,70,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 3,108,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 4,145,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 5,111,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 6,126,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 7,128,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 8,126,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 9,135,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 10,148,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 11,341,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 12,562,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 13,1412,2^-10ohm
    Ra Table,R_a2x,xCell2 R_a 14,6395,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a flag,0055,-
    Ra Table,R_a3x,xCell3 R_a 0,50,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 1,54,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 2,68,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 3,106,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 4,144,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 5,110,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 6,124,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 7,126,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 8,124,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 9,131,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 10,144,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 11,333,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 12,566,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 13,1396,2^-10ohm
    Ra Table,R_a3x,xCell3 R_a 14,6333,2^-10ohm

    Hi Bryan,

    I have the gg.cvs file attached.

    I had to save it as a .txt to attach.

    You should be able to rename it to open.

    Thank you,

    Kevin

  • 4DEJ_L.gg.csv.txtHi Bryan,

    I have the gg.cvs file attached.

    I had to save it as a .txt to attach.

    You should be able to rename it to open.

    Thank you,

    Kevin
  • Hi Bryan,

    Also of note, with an ammeter connecting in line with B- to the cells, I'm seeing a current draw of -1.8mA with no SMBus connected. When connected to bqStudio, the draw is -2.21mA. I'm not sure yet if it's something in the gas gauge file. I don't see any components other that the bq40z50 that would be drawing the excessive amount of current from the cells.

    Any feedback is much appreciated.

    Thanks and Best Regards,

    Kevin Knicker
  • Hi Kevin,
    Looking at the gg file and the schematic, I suspect the LEDs are getting turned on.
    Can you please change the Data Flash setting "Settings,Configuration,LED Configuration" from 0xD0 to 0x00 and see if the current drops in your measurement?
    Also, one other comment on the schematic, it will be better to connect the Reverse protection FET Q5 gate to PACK-, not the Device side ground, but this will not have any impact on your specific issue.
    Regards,
    Swami
  • Hi Swami,

    Thank you for the suggestion. I made the change to the LED Configuration, but I'm still seeing the excessive current draw. If there isn't anything else that can be changed in the Data Flash, I'm wondering if there isn't a component causing the current draw. Although, I don't see what component that would be.

    Any additional suggestions are much appreciated.

    Regards,
    Kevin
  • Hi Kevin,

    I don't think the current would go to zero with the "LED Configuration" change, but I wanted to check if the current reduced, since we are changing the LED current sink threshold.

    The main issue is that if the LEDs are not used, they should be left floating and not tied to VSS, otherwise you will have some current flow through the LED pins.

    Please let me know if changing "LED Config" changed the amount of current draw that you are seeing.

    Regards,

    Swami

  • Hi Swami,

    Changing the LED Config to 00 didn't have any impact on the current draw. It remained the same.
    I had read in a previous post that the bq40z50 should have the LED and DISP pins tied to ground to improve ESD and EMI performance.

    Best Regards,

    Kevin
  • Hi Swami,


    It states in the datasheet the the LEDCNTL and DISP pins can be tied to Vss.

    Also, when I click the LED_TOGGLE Command the current draw increases to -14mA.
    So I don't think the LED's are being driven.

    The excess current is coming from something else.

    Even in sleep mode the draw is -1.8mA.

    Any additional feedback is appreciated.

    Best Regards,


    Kevin

  • Hello,

    Here is a link to someone else on the forum that had just about the same issue:

    e2e.ti.com/.../621679

    It turned out being a component that was the culprit.
    Anyone have an idea as to what it may have been?

    Best Regards,

    Kevin
  • Hello,

    Just wondering if anyone has any ideas as to what the issue may be on this.
    Any feedback, thoughts, or ideas would be appreciated.

    Thank you,

    Kevin

  • A leaky capacitor is a possibility. One symptom pointing to this would be if you heat or cool your PCB and the current changes significantly.
  • Hi dMax,

    I'm seeing the issue with the PCB simply hooked up to a set of cells and with no charge or discharge currents.
    In general, the board is just drawing too much current even in sleep mode.

    It's consistent among a few of the boards I've tested so I'm not sure about it being a leaky capacitor.

    Best Regards,

    Kevin
  • Hello,

    Just wondering if anybody out there has any ideas as to what could be causing the issue?
    I did notice one other post that eluded to having the same issue and it was resolved by removing a component.
    Any further feedback would be appreciated.

    Best Regards,

    Kevin
  • Hello TI team and community,

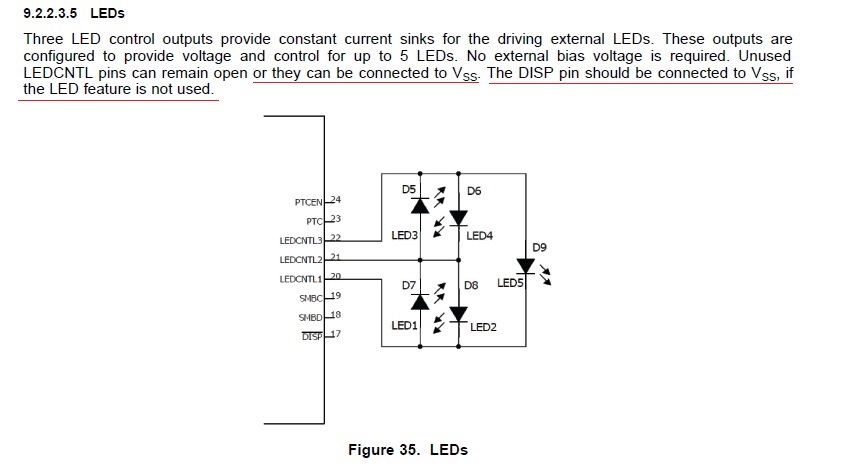

    I'm wondering if having the LEDCNTL pins pulled directly to Vss is causing the excessive current draw. The LED's aren't being used so rather than leave them floating, they were pulled low per the datasheet as ESD was a concern in the design.

    I would think the LED pins wouldn't be driven with the LED_EN bit off, but perhaps that isn't the case. I've recently read that if the pins aren't used and ESD or EMI is a concern, to pull them low with a 20kohm resistor in series to Vss.

    Does anyone think pulling them directly to Vss is causing the excessive current draw? If so, are they any suggestions to deal with it? We can't re-layout the PCB to add resistors at this point.

    It might be helpful to update the datasheet to state that if the LED pins aren't used and aren't going to be left floating, that the 20kohm resistor should be used.

    Appreciate any feedback.

    Best Regards,

    Kevin
