TPS23754: 24VDC DC-DC based on TPS23754

Leonid Gnusin

Prodigy 150 points

Part Number: TPS23754
Other Parts Discussed in Thread: TPS23753A

Hello,

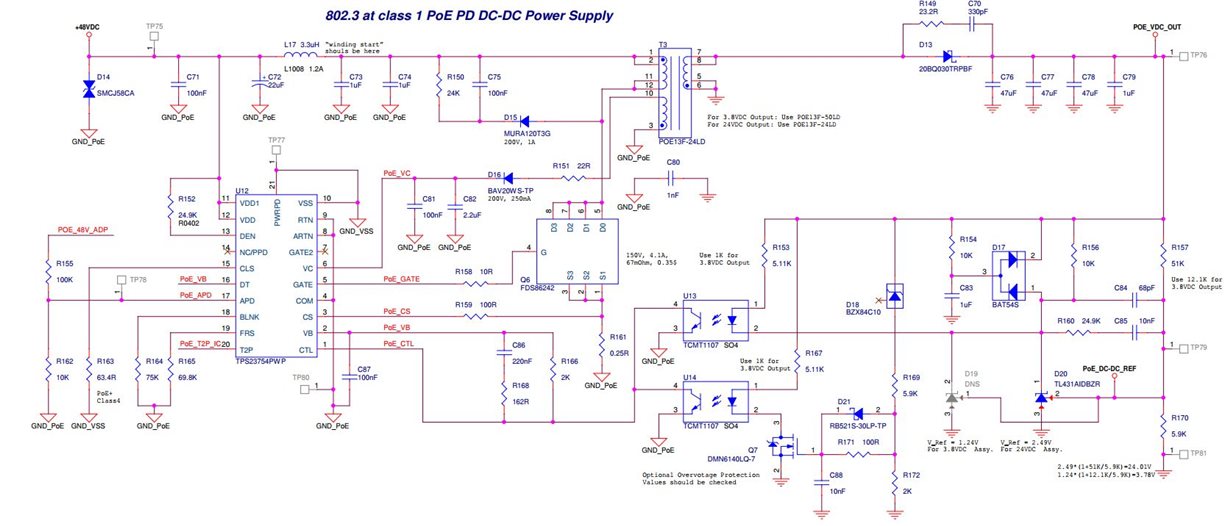

can you please review our design for 24V, 0.5A power supply based on TPS23754?

over 7 years ago

0 Darwin Fernandez over 7 years ago

TI__Mastermind 41790 points

Hi Leonid,

This is currently being reviewed and comments on the schematic will be posted when available. Thanks!

0 Darwin Fernandez over 7 years ago in reply to Darwin Fernandez

TI__Mastermind 41790 points

Hi Leonid,

A couple comment regarding the schematic that caught my eye.
D14 should be unidirectional.
C82 is too small. You may have startup issues. this should 22uF if you using ceramic caps, you may want 2x22uF in parlallel.

Regards,
Darwin

0 Leonid Gnusin over 7 years ago in reply to Darwin Fernandez

Prodigy 150 points

Hi Darwin,
Tnx for answer!
I changed C82 to 47uF 16V. I also found that Vr of D13 isn't enough - it's only 30V, and I changed it to MBRD360RLG with 60V.
But it still isn't working. Are there similar reference designs in TI with DC-DC output of 24V (can be also in range of 18 - 28V)?

0 Thomas Amlee over 7 years ago in reply to Leonid Gnusin

TI__Genius 9230 points

Hi Leonid,

Attached is the schematic & BOM for PMP10976, a PoE non-sync Flyback design with 19.5V/0.6A output using TPS23753A.

PMP10976_RevA_Sch.PDF PMP10976_RevA_BOM.xlsx
