UCC28910: Modify EVM for 12V output

Eric Wood9

Part Number: UCC28910

Hong,

Wurth has recommended the below transformer for obtaining 12v output. Can you tell me what changes are needed in the UCC28910 eval kit in order to use this transformer, and advise what the max output current would be?

750316686

https://katalog.we-online.de/ctm/datasheet/750316686.pdf

Thank you,

Eric

over 5 years ago

0 Hong Huang over 5 years ago

TI__Mastermind 47475 points

This will take a bit time and I am working on this.

0 Hong Huang over 5 years ago in reply to Hong Huang

TI__Mastermind 47475 points

The transformer is ok to work. The maximum output current is about 420 mA. Other changes are in the attached PDF file.

PWR526A_SCH_markup_12V_0A3_20180706(750316686).pdf

0 Eric Wood9 over 5 years ago in reply to Hong Huang

Prodigy 90 points

Hong,

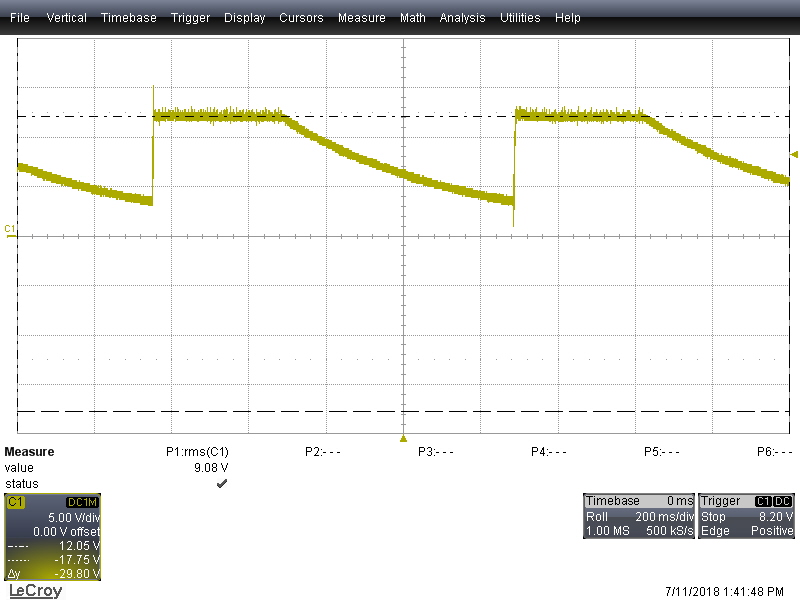

Thank you. I modified the eval kit to match these changes. I have regulation under no load, but lose it and see reset under very light loads (10mA example below) or large loads.

0 Hong Huang over 5 years ago in reply to Eric Wood9

TI__Mastermind 47475 points

Can you check and provide the waveforms at AUX, DRAIN, VDD, IFX and C2 to see any clue can be found?

Power management

Power management forum

UCC28910: Modify EVM for 12V output
