BQ4050: bq4050 evm connection

Rahul Kumar92

Intellectual 415 points

Part Number: BQ4050
Other Parts Discussed in Thread: BQSTUDIO

I'm having the same issue the cell voltage showing wrong in bqstudio and actual voltage is different.

Regards Rahul

over 6 years ago

0 Batt over 6 years ago

TI__Mastermind 42535 points

your per cell voltage can be off by 1-2mV but your stack voltage should be correct. Your voltages depend on how good your connections are to the evm.

0 Rahul Kumar92 over 6 years ago in reply to Batt

Intellectual 415 points

how can i on my per cell voltage?

0 Batt over 6 years ago in reply to Rahul Kumar92

TI__Mastermind 42535 points

doesn't your cell have tabs that you can connect to and get values off of?

0 Rahul Kumar92 over 6 years ago in reply to Batt

Intellectual 415 points

0 Batt over 6 years ago in reply to Rahul Kumar92

TI__Mastermind 42535 points

Then how have you connected the battery pack to the gauge? Is it just top of the stack and the bottom of the stack? Is your battery connection per the schematic in the DS? Attach a screenshot here.

0 Rahul Kumar92 over 6 years ago in reply to Batt

Intellectual 415 points

yes the connection is as per th DS.

0 Batt over 6 years ago in reply to Rahul Kumar92

TI__Mastermind 42535 points

How many cells in series does your stack have? Have you connected VC1, VC2, VC3 and VC4?

0 Rahul Kumar92 over 6 years ago in reply to Batt

Intellectual 415 points

4 cell

0 Batt over 6 years ago in reply to Rahul Kumar92

TI__Mastermind 42535 points

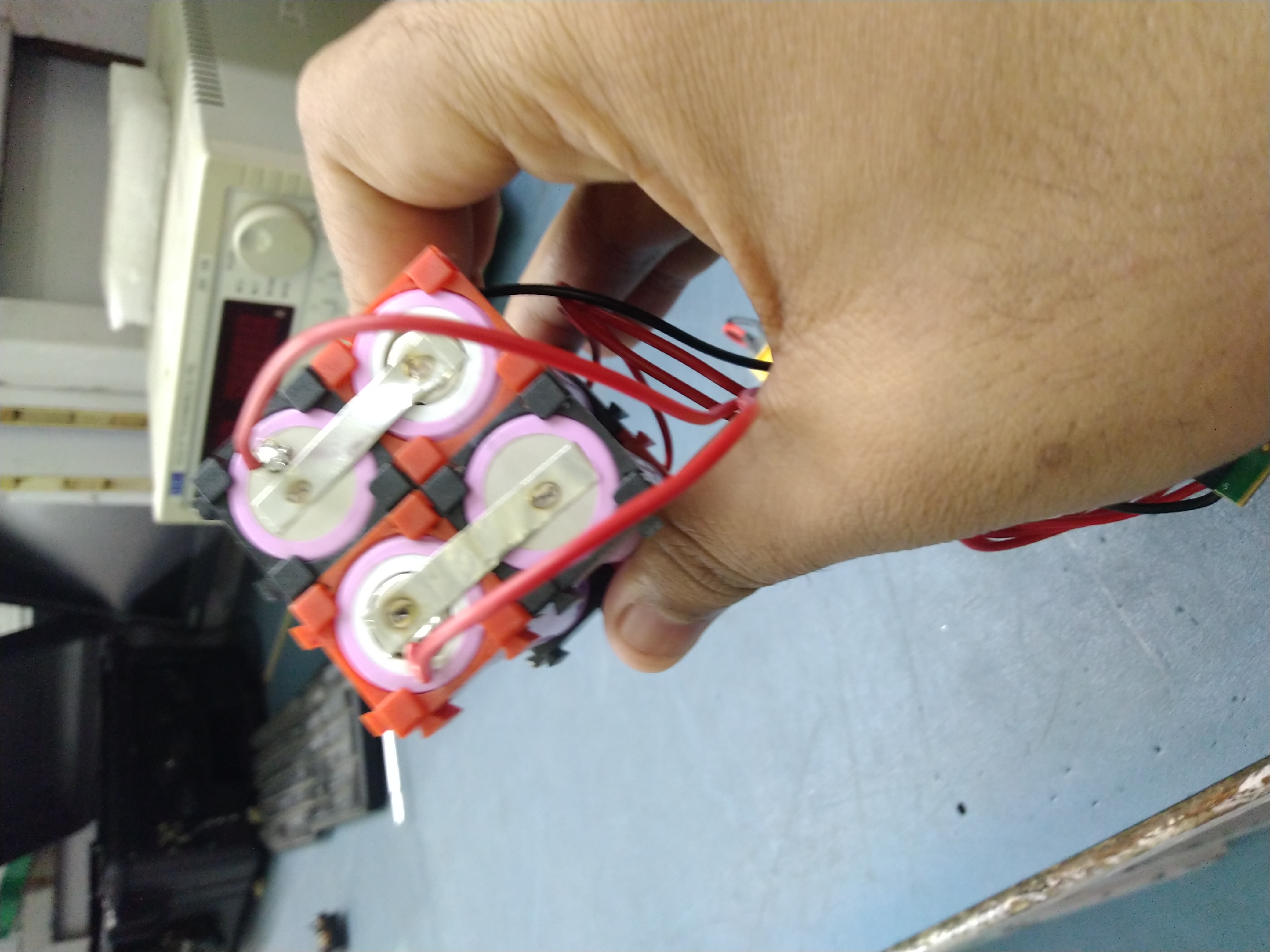

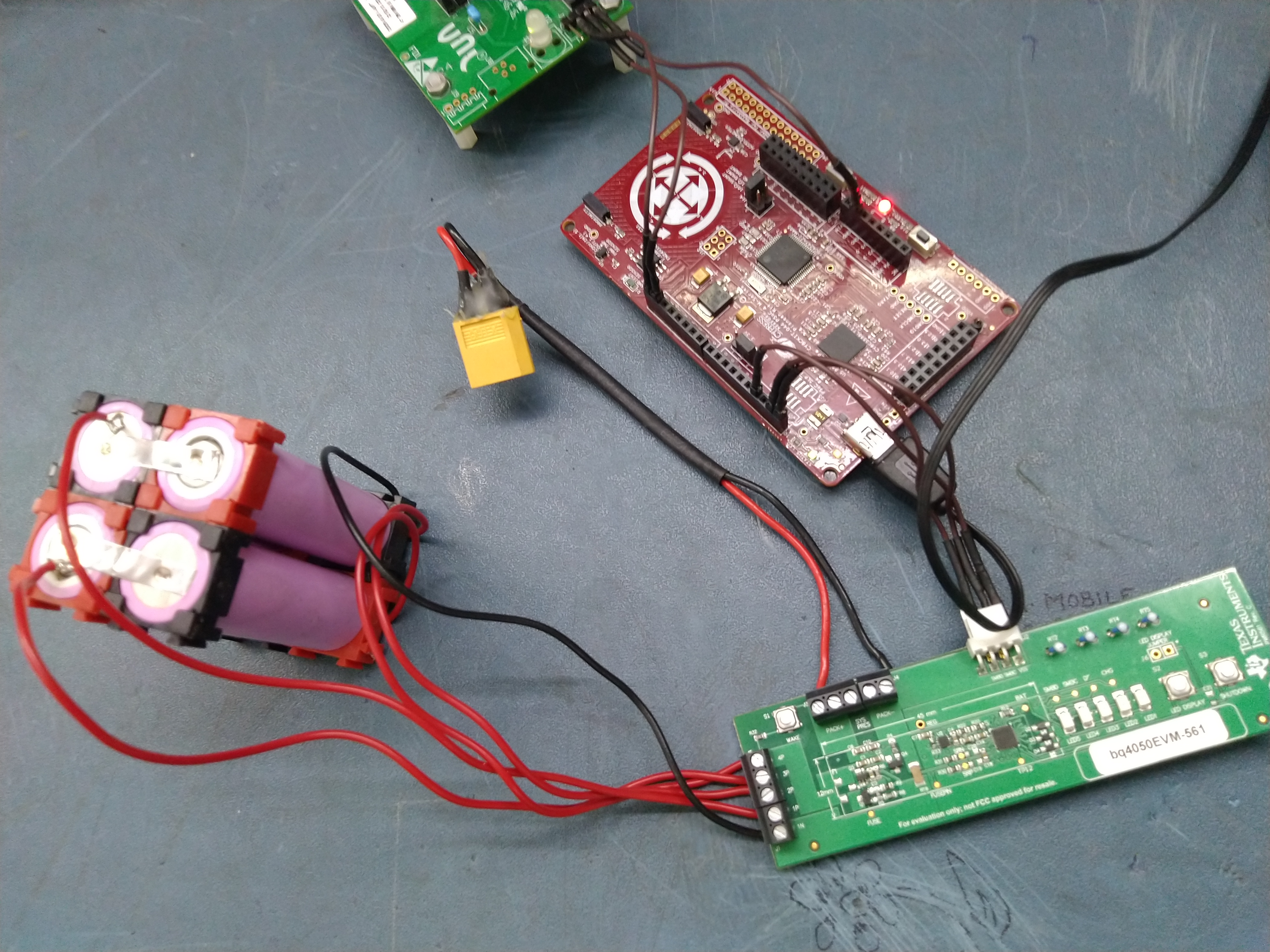

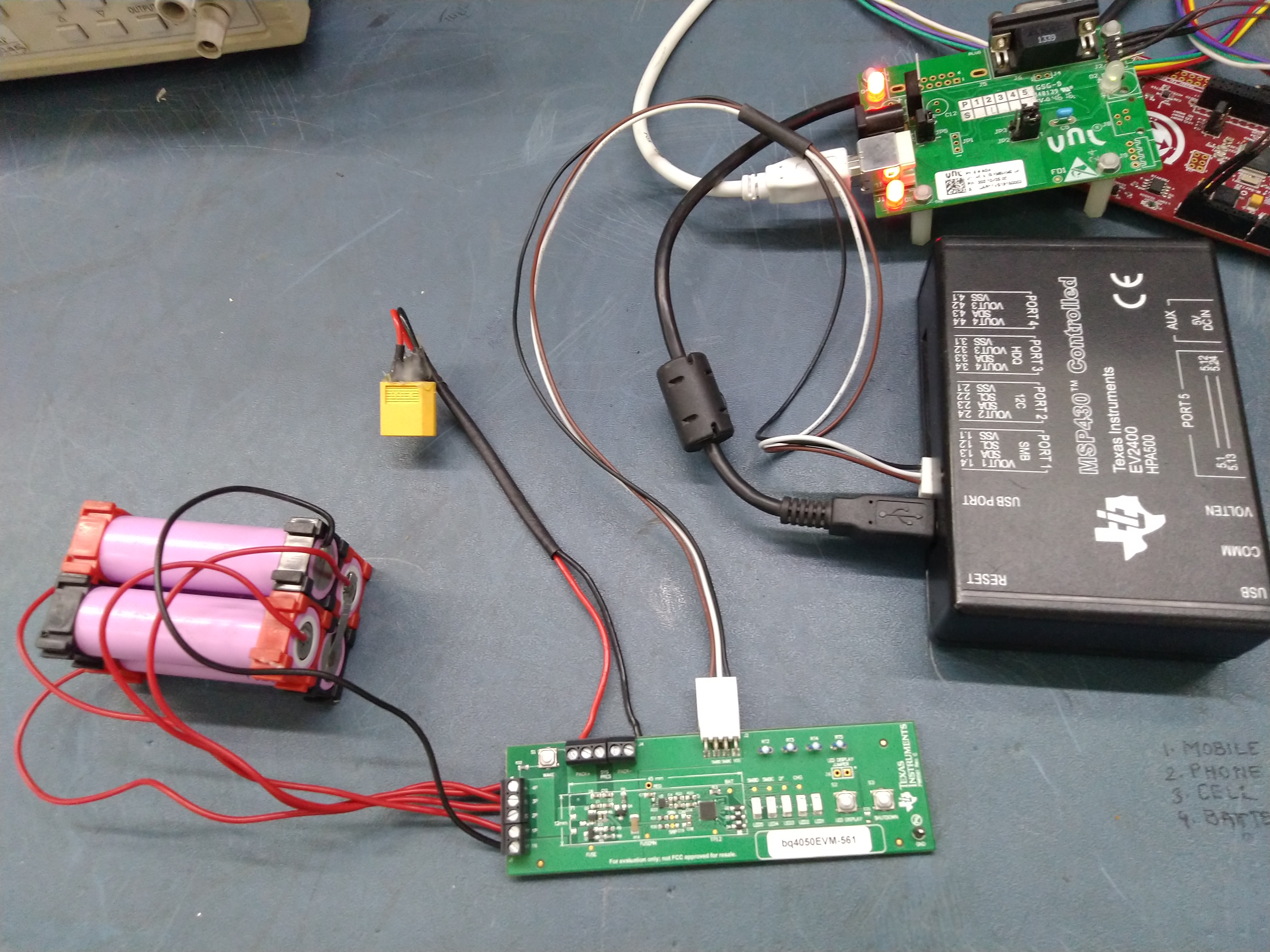

Please send me your schematic and a drawing of your battery connection. You can't just connect the top of the stack and the bottom and expect the gauge to work. It's difficult if you don't provide me the data needed. Also please send a screenshot of the voltage readings from the registers in bqstudio.

0 Rahul Kumar92 over 6 years ago in reply to Batt

Intellectual 415 points

0 Batt over 6 years ago in reply to Rahul Kumar92

TI__Mastermind 42535 points

So, what you're telling me here is that BAT voltage is correct while the individual cell voltages and the stack voltage is wrong? Am I correct? If yes, please send me your gg.csv file and upload it here as a zip file.

0 Rahul Kumar92 over 6 years ago in reply to Batt

Intellectual 415 points

Yes, you are correct but what is gg.csv file and how can i get it?

0 Batt over 6 years ago in reply to Rahul Kumar92

TI__Mastermind 42535 points

Rahul,

You need to click on the data memory button in battery management studio. Then do a read all. The click on export. The file that you export will have be your .gg.csv file. My suspicion is that your cell gain is not correct. Please change that to the default, I think it's 12101. Then you should be OK.

0 Rahul Kumar92 over 6 years ago in reply to Batt

Intellectual 415 points

Please find attachment.

.gg.csvbq4050.gg.zip

0 Batt over 6 years ago in reply to Rahul Kumar92

TI__Mastermind 42535 points

Yeah, someone fiddled with your cell gain. Change that back to 12101. That's not meant to be changed.
