Hello TI;
I have an Evaluation board for the TPS65400, and I downloaded the PI-Commander-PMU EVM GUI . I have been using it to do some testing but I have notice that there is a Scripting capability but the EVAL BRD datasheet nor the PI-Commander-PMU EVM GUI zip file have examples or guide on how to use this feature.
Can you please provide that information?
Regards;
Luis Guevara
Hello Hao,
Please check the .XML file attached, I can see some registers but not all, how can access the value of any of the registers?

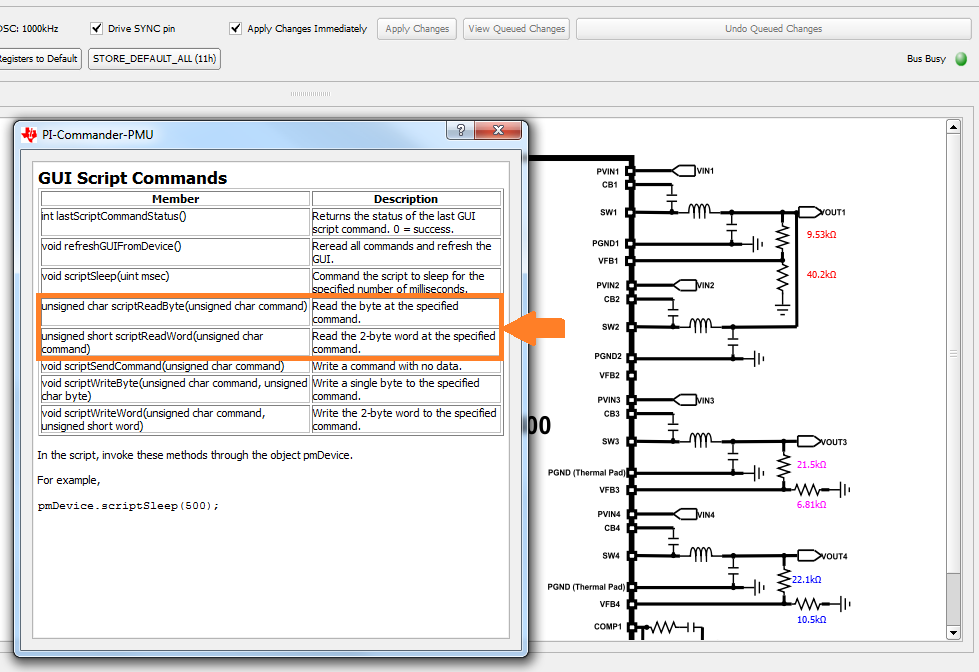

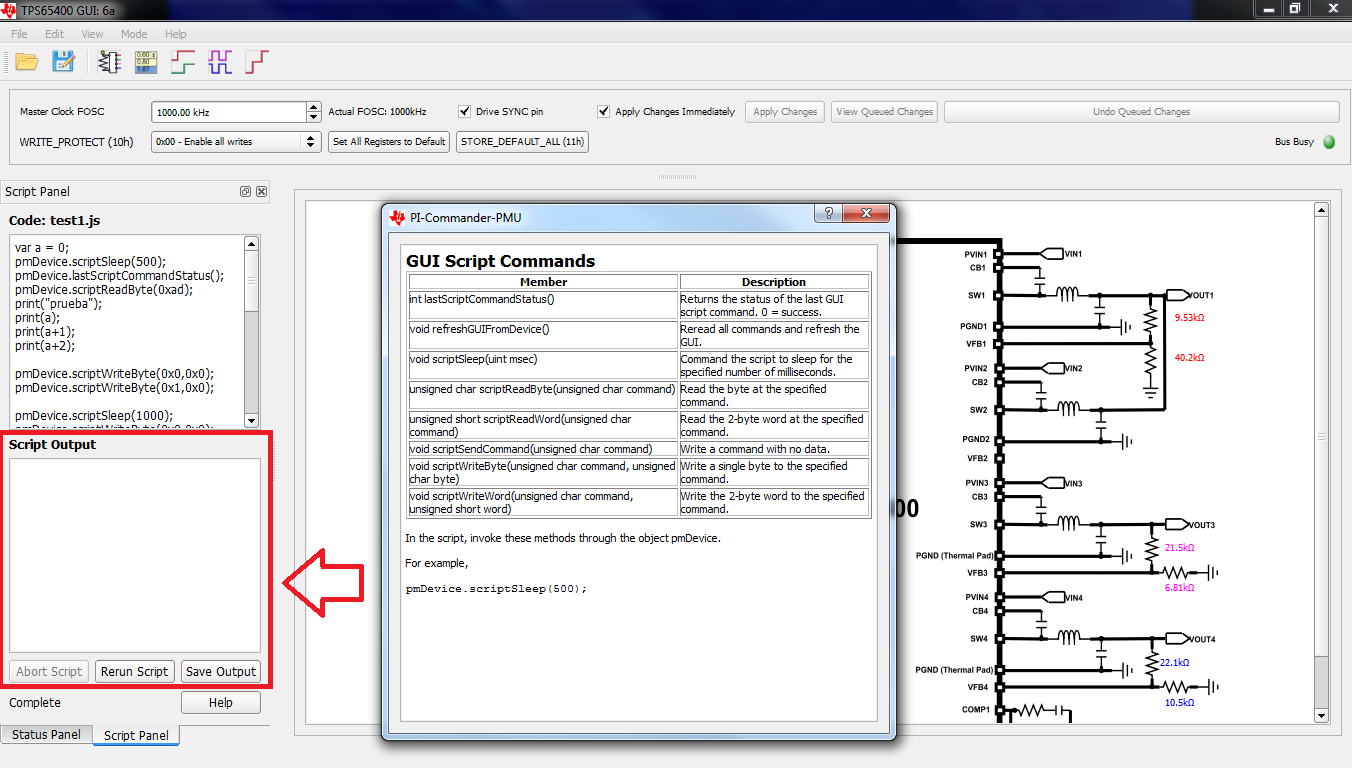

Also please check the image attached, how can I get results directly in the script output? I have tried the read commands and I get nothing.
For example, how do get the value of (ADh IC_DEVICE_ID) using the XML file and the script output?
<?xml version="1.0" encoding="UTF-8"?>
<PI-Commander_TPS65400 version="1.0">
<register code="10">0000</register>
<register code="D0">0000</register>
<register code="D1">0000</register>
<register code="D2">003C</register>
<register code="D4">0000</register>
<register code="DC">0002</register>
<registerWithPage code="D3" page="03">0000</registerWithPage>
<registerWithPage code="D3" page="02">0000</registerWithPage>
<registerWithPage code="D3" page="00">0000</registerWithPage>
<registerWithPage code="D5" page="03">0000</registerWithPage>
<registerWithPage code="D5" page="02">0000</registerWithPage>
<registerWithPage code="D5" page="00">0000</registerWithPage>
<registerWithPage code="D6" page="03">0001</registerWithPage>
<registerWithPage code="D6" page="02">0001</registerWithPage>
<registerWithPage code="D6" page="00">0001</registerWithPage>
<registerWithPage code="D7" page="03">000C</registerWithPage>
<registerWithPage code="D7" page="02">0004</registerWithPage>
<registerWithPage code="D7" page="00">0000</registerWithPage>
<registerWithPage code="D8" page="03">0014</registerWithPage>
<registerWithPage code="D8" page="02">0014</registerWithPage>
<registerWithPage code="D8" page="00">0028</registerWithPage>
<registerWithPage code="D9" page="03">0003</registerWithPage>
<registerWithPage code="D9" page="02">0003</registerWithPage>
<registerWithPage code="D9" page="00">0004</registerWithPage>
<registerWithPage code="DD" page="03">0000</registerWithPage>
<registerWithPage code="DD" page="02">0000</registerWithPage>
<registerWithPage code="DD" page="00">0000</registerWithPage>
<registerWithPage code="DE" page="03">0002</registerWithPage>
<registerWithPage code="DE" page="02">0002</registerWithPage>
<registerWithPage code="DE" page="00">0002</registerWithPage>
<registerWithPage code="DF" page="03">0098</registerWithPage>
<registerWithPage code="DF" page="02">0098</registerWithPage>
<registerWithPage code="DF" page="00">0098</registerWithPage>
<registerWithPage code="F0" page="03">0001</registerWithPage>
<registerWithPage code="F0" page="02">0001</registerWithPage>
<registerWithPage code="F0" page="00">0001</registerWithPage>
<registerWithPage code="F1" page="03">0001</registerWithPage>
<registerWithPage code="F1" page="02">0001</registerWithPage>
<registerWithPage code="F1" page="00">0001</registerWithPage>
<SchematicLabel id="CSS1">0.01uF</SchematicLabel>
<SchematicLabel id="CSS2">0.01uF</SchematicLabel>
<SchematicLabel id="CSS3">0.01uF</SchematicLabel>
<SchematicLabel id="CSS4">0.01uF</SchematicLabel>
<SchematicLabel id="RFB1SW1">9.53kΩ</SchematicLabel>
<SchematicLabel id="RFB1SW2">12.7kΩ</SchematicLabel>
<SchematicLabel id="RFB1SW3">21.5kΩ</SchematicLabel>
<SchematicLabel id="RFB1SW4">22.1kΩ</SchematicLabel>
<SchematicLabel id="RFB2SW1">40.2kΩ</SchematicLabel>
<SchematicLabel id="RFB2SW2">10.2kΩ</SchematicLabel>
<SchematicLabel id="RFB2SW3">6.81kΩ</SchematicLabel>
<SchematicLabel id="RFB2SW4">10.5kΩ</SchematicLabel>
<ENSW id="ENSW1">2</ENSW>
<ENSW id="ENSW2">2</ENSW>
<ENSW id="ENSW3">2</ENSW>
<ENSW id="ENSW4">2</ENSW>
</PI-Commander_TPS65400>
Regards;
Luis
Hi Hao;
Thanks for your response.
I have a question.
Then where/how do I get the result of the "read" commands?
Regards;
Luis
Hi Hao;

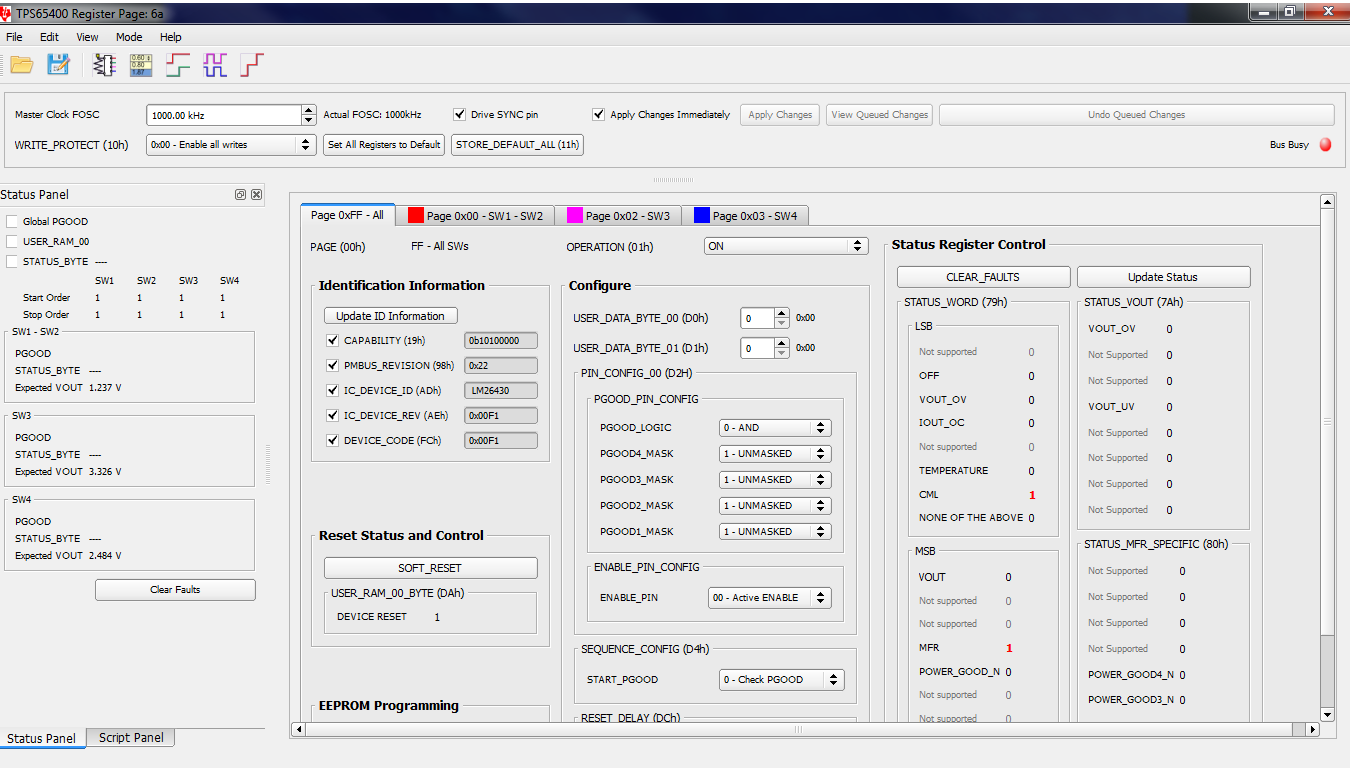

What do you mean by "PMBus register page"? Is that pages shown in the GUI in the picture below?
I would expect a reply from the command like another byte or word when I use the read command , is it possible?
My intention is to run a script and obtain on the fly readings from the TPS65400, readings from the status registers and other registers if possible, can this be done?
Regards;
