TPS61196: boost didn't work

Zbyszek Trzcinka

Part Number: TPS61196

Hello, team!

I'm a student from University of Technology in Gdansk and I have a problem with my project. I want to connect two devices: WAFER-ULT3-i3-r10 and touch screen MI2150BT-1 using TPS61196. I chose a typical application for three channels, but it doesn't work. The voltage on the output does not boost. Do any of you know what could be the reason?

I attach the connection diagram with the specifications of WAFER and Mi215.

Thank You for any help.

Zbyszek

WAFER-ULT3_ULT4_UMN_v1.01-manual-20180615 (1).pdf

over 5 years ago

0 Sean Zhou over 5 years ago

TI__Mastermind 22745 points

Hi Zbyszek,

I'm happy to received your question, can you provide the schematic and the connect block diagram about your test bench? The attachment is too long for me to find the right information, what you have down with the unused channels?

Regards

Sean

0 Zbyszek Trzcinka over 5 years ago in reply to Sean Zhou

Prodigy 50 points

Hi, Sean!

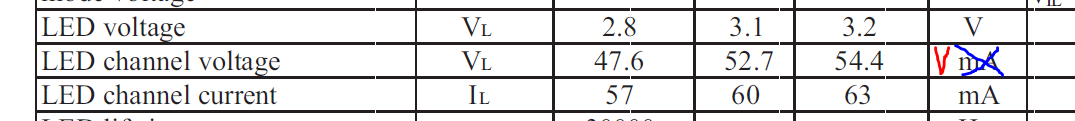

Thank You for so fast answer. Below is my test bench and characteristic of channel current and voltage. I power the TPS61196 without WAFER, because it was an additional problem and first I have connected only Power Supply and ESP-32. I am using only three channels and these channels I connected with resistor 10M, like in a typical application. The unused channels i connected with resistor 30k, like it was written in the specyfication.

I am not sure if this is the answer to your question.

Regards,

Zbyszek

0 Sean Zhou over 5 years ago in reply to Zbyszek Trzcinka

TI__Mastermind 22745 points

Hi Sir,

Here I send you a calculation tool that you can try to check your components parameters whether is ok or not.

Please check the components and parameters.

Regards

Sean

0 Sean Zhou over 5 years ago in reply to Zbyszek Trzcinka

TI__Mastermind 22745 points

Sorry for forgetting the attachment:

6765.TPS61196-Calculation-Tool_update.xlsx

0 Zbyszek Trzcinka over 5 years ago in reply to Sean Zhou

Prodigy 50 points

Hello, Sean,

I tried to calculate the items you provided, but I'm not sure I did it right. Could you check if my values are good?

In this sheet I also entered the resistances and capacities used in my inverter. Could You check it, please?

Regards

Zbyszek

0 Zbyszek Trzcinka over 5 years ago in reply to Sean Zhou

Prodigy 50 points

Hello Sir,

I checked the components and parameters, but I am not sure, that I did it correctly. Could you check it?

TPS61196-Calculation-Tool_2.xlsx

Best regards,

Zbyszek

0 Sean Zhou over 5 years ago in reply to Zbyszek Trzcinka

TI__Mastermind 22745 points

Hi Zbyszek,

Vovp should be 1.3 of Vout max, it is the overvoltage protection.

Regards

Sean

0 Zbyszek Trzcinka over 5 years ago in reply to Sean Zhou

Prodigy 50 points

Hi, Sean,

I changed the value of the resistor R3 to 215k and in theory this causes the OVP to increase to 68V. Unfortunately, this solution still does not work. Do you have any idea what could be wrong?

TPS61196-Calculation-Tool_Zbyszek_project.xlsx

Best regards,

Zbyszek

0 Sean Zhou over 5 years ago in reply to Zbyszek Trzcinka

TI__Mastermind 22745 points

Hi Zbyszek,

I don't have more commons on the calculation, it seems ok, so please refer to our TPS61196EVM schematic and that may be helpful for you.

http://www.ti.com/lit/ug/slvua25a/slvua25a.pdf

Regards

Sean
