BQ40Z80: Internal Connection from PACK to DSG

Klaus

Expert 1431 points

Part Number: BQ40Z80

Hi Ti Experts,

in relation to this thread:

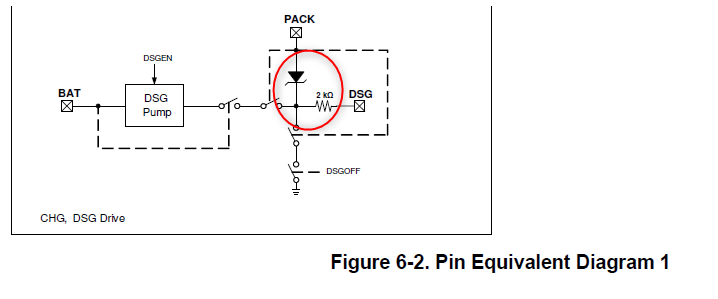

I would like to know what is the purpose of the internal diode and the internal 2kOhm Resistor:

Thanks.

Klaus

over 4 years ago

0 Nick Brylski over 4 years ago

TI__Mastermind 19195 points

Hi Klaus,

These are external components.

BR,

0 Klaus over 4 years ago in reply to Nick Brylski

Expert 1431 points

Hi Nick,

thanks for your answer.

I do not understand. I thought these diagrams are showing internal components.

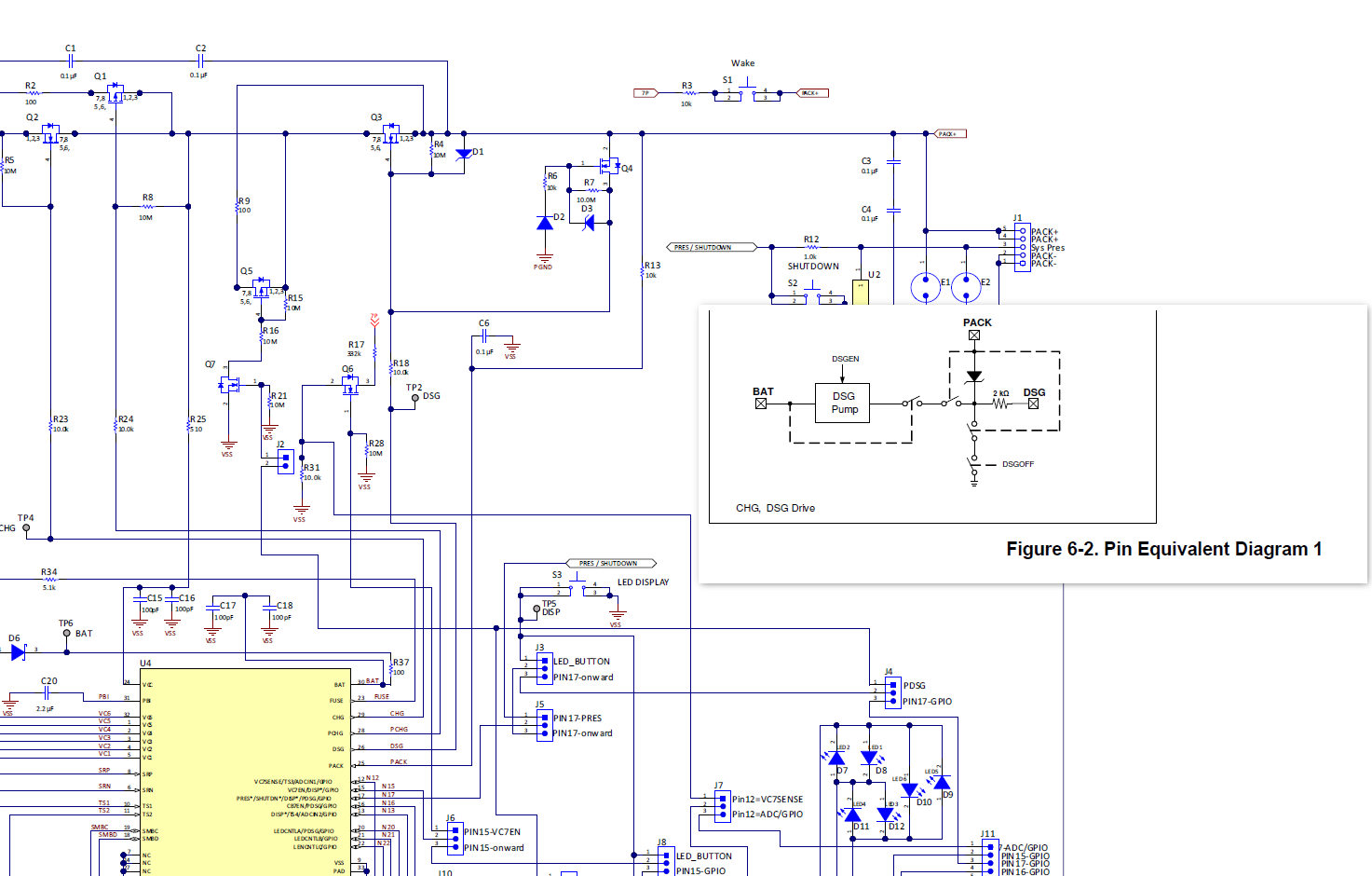

I have attachet the shematic out of the the datasheet.

Could you please mark where the diode and the 2kOhm resistor is?

Thanks a lot.

Thanks.

Klaus.

0 Nick Brylski over 4 years ago in reply to Klaus

TI__Mastermind 19195 points

Hi Klaus,

That schematic is using a 10k res instead of 2k

Hope this clears things up,

0 Klaus over 4 years ago in reply to Nick Brylski

Expert 1431 points

Hi Nick,

thanks for your answer.

sorry for asking again.

Do you mean the R18 and the D1?

Thanks.

Klaus

0 Nick Brylski over 4 years ago in reply to Klaus

TI__Mastermind 19195 points

Yes, this is what I was referring to.
