AM5728: regarding DPI interface

Krishna Vashistha

Intellectual 770 points

Part Number: AM5728
Other Parts Discussed in Thread: TMDSEVM572X

Dear Team,

We have TI evaluation board (TMDSEVM572x).

and want to interface 24 bit RGB parallel TFT lcd (chineese) having

control command interface with SPI/I2C.

The vendor suggest us to use an IC LT7381 or SSD1963

between SOC and display.

As per my study on DSS, although the SOC has dedicated video output port.

And may it supports direct interface with RGB 24 bit parallel display.

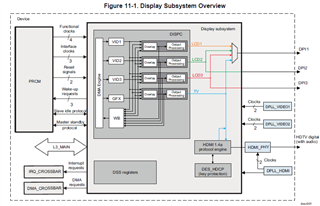

From the above diagram We are supposed to go with direct interface.

Is the right method? or to use external driver IC indeed.

Regards

Krishna Vashistha

over 4 years ago

0 ShreyasRao over 4 years ago

TI__Guru 61560 points

Krishna,

The DSS can display different pics using 3 simultaneous LCD outputs.

you can also refer to the TRM (page 2605) for more information on the DSS and DPI.

0 Krishna Vashistha over 4 years ago in reply to ShreyasRao

Intellectual 770 points

Dear Shreyas,

Thank you for the response.

As per reading TRM, I understand

DSS can give Three parallel output DPI 1,2,3 directly.

So any parallel display which have data lines like:-

fid, pixelclk, DE, vsync, hsync, d[23:0]

can be interfaced directly ?

no need any external driver IC between SOC's DPI output

and display.

Regards

Krishna Vashistha

+1 ShreyasRao over 4 years ago in reply to Krishna Vashistha

TI__Guru 61560 points

Krishna,

yes, as per the TRM page 2605 has more details on the control and data bits supported.

0 Krishna Vashistha over 4 years ago in reply to ShreyasRao

Intellectual 770 points

Dear Shreyas,

Thank you for the suggestion.

Ok, We will try directly and see if any issue occurred.

Regards

Krishna Vashistha

0 ShreyasRao over 4 years ago in reply to Krishna Vashistha

TI__Guru 61560 points

Thank you, Krishna.
