Part Number: TDA4VM
Hi,
I used 3D Surround Vision Calibration Tool according to user guide.
In step 3, I tried to use the equisolid or the stereographic model, the calibration tool can generate a .csv file.

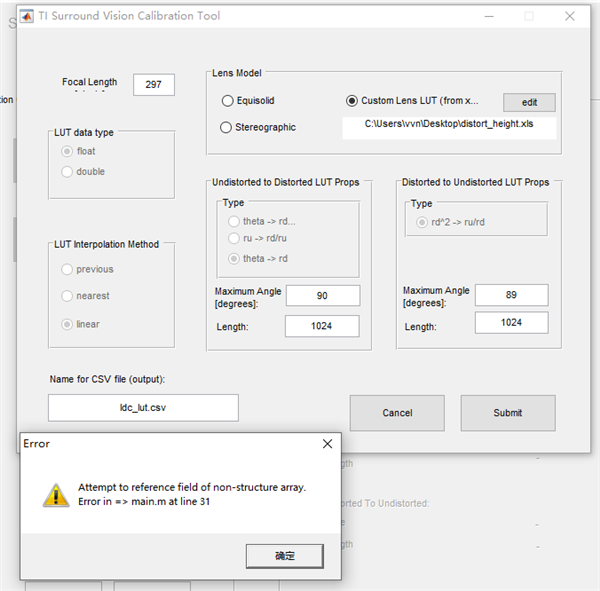

I wanted to use a distortion function from lens vendors. I pressed "Run LUT Generation Tool" button, and chose the “Custom Lens LUT” button and selected my .xls sheet. But the calibration tool got something wrong.
Appreciate your guidance here.
Here is the data in excel sheet about distortion function from lens vendors.0 0
