pin not match with EVM1808 DDR2 connection

Power Pan

Expert 1985 points

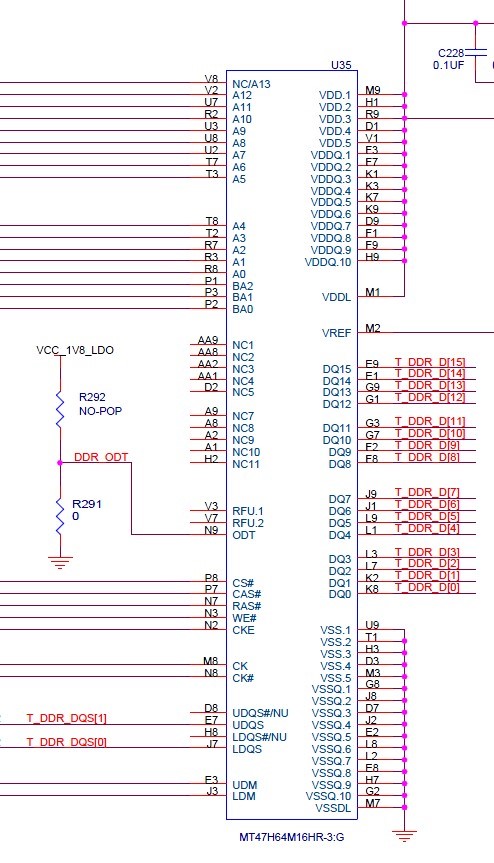

hi, anybody knows, why the pins are not matched? original doc:http://support.spectrumdigital.com/boards/evmam1808/revb/files/EVMAM1808_Schematics_RevB.pdf

Regards,

Power Pan

over 14 years ago

0 jc-ti over 14 years ago

TI__Mastermind 27585 points

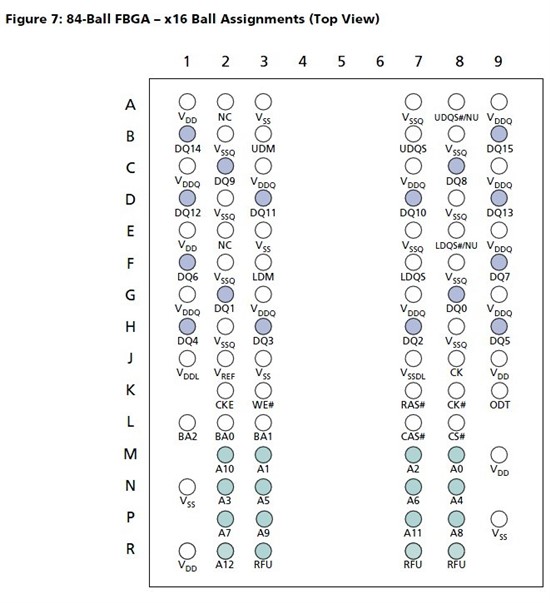

The symbol shows a 92 pin part. The EVM is populated with the 84 pin part, which fits in the footprint of the larger device. You'll notice the column numbers match but the rows are shifted by 3.

Jeff

Processors

Processors forum

pin not match with EVM1808 DDR2 connection
