TDA4VM: failed to compile keywriter_img

yan yan

Part Number: TDA4VM

hi, experts,

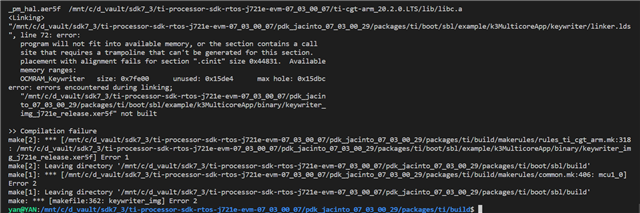

i encountered a problem as below screenshots says when i was trying to build keywriter_img on my machine,

Linux YAN 5.10.102.1-microsoft-standard-WSL2 #1 SMP Wed Mar 2 00:30:59 UTC 2022 x86_64 x86_64 x86_64 GNU/Linux

LSB Version: core-11.1.0ubuntu2-noarch:security-11.1.0ubuntu2-noarch
Distributor ID: Ubuntu
Description: Ubuntu 20.04.2 LTS
Release: 20.04
Codename: focal

i build this based on ti-processor-sdk-rtos-j721e-evm-07_03_00_07 sdk and PDK_OTP_KEYWRITER_ADD_ON_07_01_00-linux-installer.run installer

building steps :

cd ti-processor-sdk-rtos-j721e-evm-07_03_00_07\psdk_rtos\scripts\
sudo chmod +x setup_psdk_rtos.sh
sudo source .\setup_psdk_rtos.sh
cd pdk/packages/ti/boot/sbl/example/k3MulticoreApp/keywriter/scripts/
sudo chmod +x ./gen_keywr_cert.sh
./gen_keywr_cert.sh -g
./gen_keywr_cert.sh -s keys/smpk.pem --smek keys/smek.key -t ti_fek_public.pem -a keys/aes256.key
cd ti/build
make keywriter_img

please give some helps!

regards!

yan

over 3 years ago

0 yan yan over 3 years ago

Prodigy 215 points

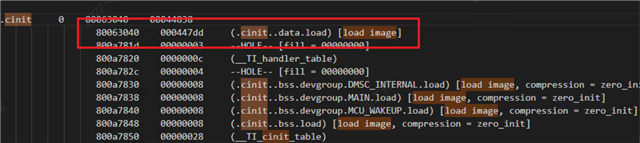

i try to modify linker.lds to make enough memory range , than i got the map files, in the map files the size of .cinit section is very big, maybe this is why the error in last post,

but i have no idea why this section size is big like this.

please give some advice for solving this errors.

any helps would be grateful!

Regards!

yan

0 Keerthy J over 3 years ago in reply to yan yan

TI__Guru**** 163300 points

Hi Yan,

We are able to reproduce the issue on 8.2 SDK. & are working on it for the fix. I will reach out to you as soon as I have an update.

Best Regards,
Keerthy

0 Keerthy J over 3 years ago in reply to Keerthy J

TI__Guru**** 163300 points

Hi Yan,

This seems to be a different issue. Can you try do below commands:

cd $PSDKRA/vision_apps
make sdk
cd $PSDKRA/pdk/packages/ti/build
make keywriter_img_clean
make keywriter_img

Best Regards,
Keerthy

0 yan yan over 3 years ago in reply to Keerthy J

Prodigy 215 points

Hi Keerthy,

I tried those commands, but it makes no difference from the previous results.

I also found there are a difference between normal bootloader(tiboot3.bin) and keywriter for loading the sys_fw(tifs.bin or tifs-hs-enc.bin),

1) normal bootloader

From POR, the loading sequence is like below:

RBL will load sbl(tiboot3.bin) from storage(ie. sd card), and then sbl will load sysfw from sd card(like the following function call sequence)

void SBL_SciClientInit(void)

-> SBL_ReadSysfwImage(&sysfw_ptr, SBL_SYSFW_MAX_SIZE);

-> Sciclient_loadFirmware((const uint32_t *) sysfw_ptr);

2) keywriter

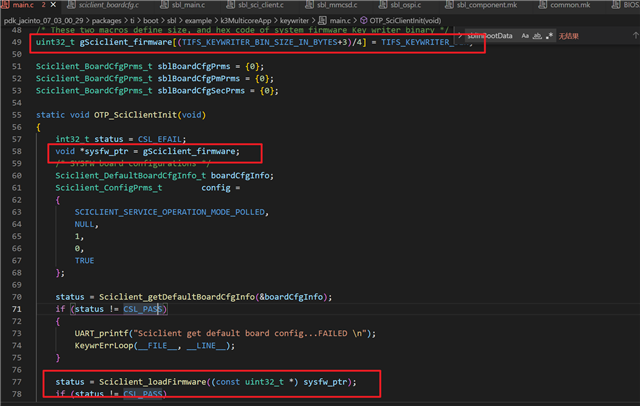

I read keywriter boot process from keywriter source code, the sequence is like below:

At first, RBL load keywriter image from sd card, and then the difference emerges, keywriter will load sysfw through an array(variables)

I guess this array was been declared for storage sysfw binary(maybe it's size is about 0x447dd),

so if the version of linker.lds script is not matched with the keywriter installer(PDK_OTP_KEYWRITER_ADD_ON_07_01_00-linux-installer.run)

please help to confirm if this mismatch issues exists.

Best regards,

Yan

0 Keerthy J over 3 years ago in reply to yan yan

TI__Guru**** 163300 points

Hi Yan,

I believe zhang fan has helped with the fix to compile. Are you able to proceed further?

- Keerthy

0 Keerthy J over 3 years ago in reply to Keerthy J

TI__Guru**** 163300 points

Hi Yan,

I believe this was due to VPP not enabled correctly. I learned that the issue is fixed & hence closing the issue.

- Keerthy

+1 yan yan over 3 years ago in reply to Keerthy J

Prodigy 215 points

Hi Keerthy,

sorry for response so late,

yes, zhang fan has helped us for solving the problems.

thanks again.

Best Regards.

yan

0 Alisha Kumar over 3 years ago in reply to Keerthy J

Prodigy 50 points

Hi, I have the same issue. Could you please let me know how to fix it?

Thanks

0 Keerthy J over 3 years ago in reply to Alisha Kumar

TI__Guru**** 163300 points

Hi Alisha,

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1106641/faq-tda4vm-otp-keywriter-build-failure

I have shared the fix there. Closing the ticket.

- Keerthy
