TMDS243GPEVM: Unable to connect to UART in Out-of-Box experience

AlexWalton42

Part Number: TMDS243GPEVM

Hi Team,

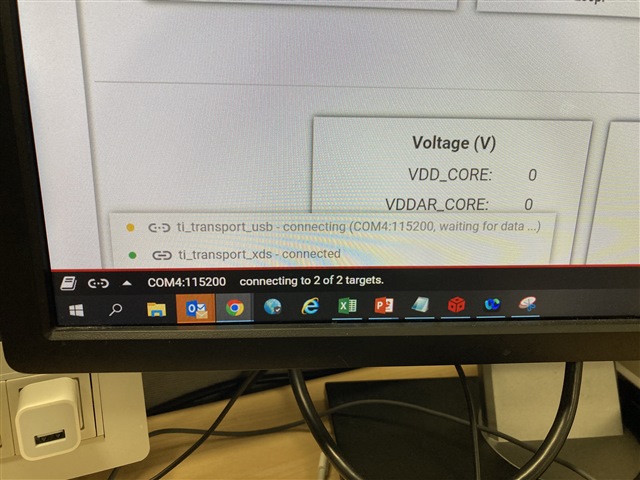

I purchased 2x TMDS243GPEVM. I'm running into a roadblock in the Out-of-Box experience. For both EVMs, I've followed the step-by-step instructions provided here (https://dev.ti.com/gallery/view/SitaraMCU/AM243x_EVM_OOB_Experience/ver/1.0.0/), but I'm not able to connect to the UART port. It does successfully connect to JTAG, but buffers or "connecting" for the UART as seen in the snips below:

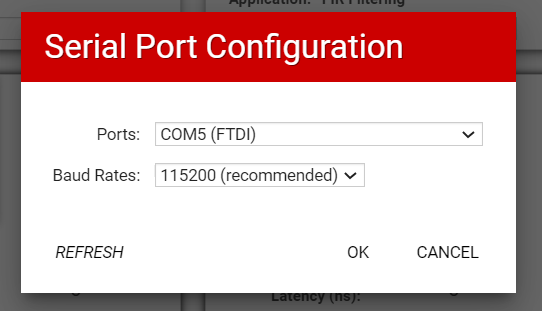

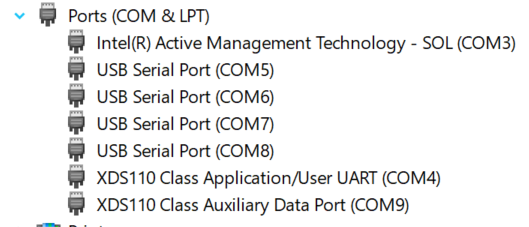

I've checked to make sure I'm configuring the correct serial port per the snips below:

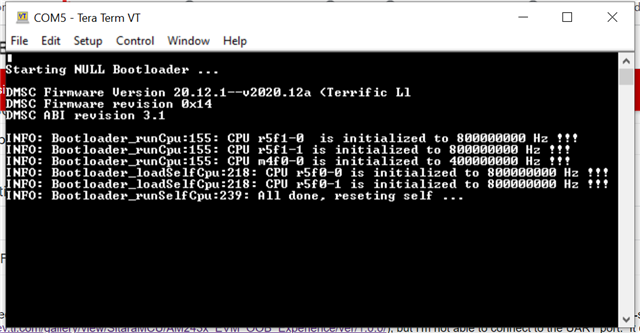

And I've read the UART data via TeraTerm to confirm that it is initializing properly:

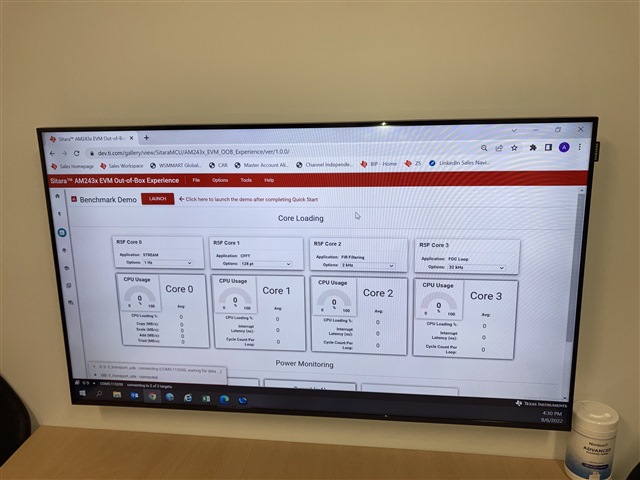

Please note that I've tried with both EVMs that I've ordered. In addition, here is my physical setup:

Please let me know how I may fix this issue. Thanks!

-Alex

over 2 years ago

0 Prasad Jondhale over 2 years ago

TI__Mastermind 27743 points

Hi Alex,

From the UART log (Teraterm) snapshot you shared, looks like you are flashing SBL NULL and not SBL QSPI. You need to flash SBL QSPI if you need to run an application like out of box demo.

Some additional references to understand the flow -

SBL NULL - AM243x MCU+ SDK: EVM Setup (ti.com)

Flashing tool to flash SBL QSPI and application - AM243x MCU+ SDK: Flashing Tools (ti.com)

Regards,

Prasad

0 AlexWalton42 over 2 years ago in reply to Prasad Jondhale

TI__Expert 8335 points

Hi Prasad Jondhale, the Teraterm was just used to show that the UART can connect.

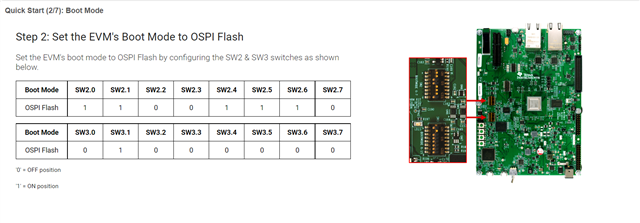

For the Out-of-Box experience, I set the switches to the following positions as asked in the step-by-step guide:

Do I need to complete steps prior to the Out-of-Box experience guide in order for it to connect?

Best regards,

Alex

0 Prasad Jondhale over 2 years ago in reply to AlexWalton42

TI__Mastermind 27743 points

Hi Alex,

Sorry for confusion. Let me try this on my set up and come back tomorrow.

Regards,

Prasad

0 Aakash Kedia over 2 years ago in reply to AlexWalton42

TI__Mastermind 26145 points

Hi Alexander,

I tried the following debug steps to fix a similar problem.

1. Reset the board.
2. Refresh the site.
3. Click on Options first and change the COM port to COM5 (FTDI Port)
4. Click on OK and let the program download on the device.

You will find the demo working.

** Make sure to not start any download of program over incorrect COM port or repeat all the steps from the start.

Hope that helps.

Best Regards,
Aakash
