DRA821U and XDS110

kazuhiro kitamura

Prodigy 10 points

Other Parts Discussed in Thread: DRA821U, DRA821

Hi,Mr.

I'm going to design DRA821U and use XDS110 for JTAG Debugger.

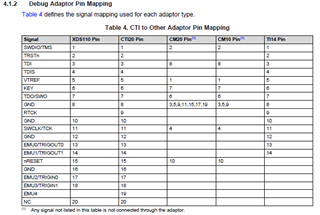

I will use following Pin for XDS110

TMS,TRSTn,TDI,VTREF(3.3V?),TDO,GND,TCK,EMU0,EMU1,nRESET

and i don't use KEY,EMU2,EMU3,EMU4.

In this case, I think that no use Pins(KEY,EMU2,EMU3,EMU4) are NO.

Is my understanding correct?

Thank you and best regards.

over 3 years ago

0 Robert Eschler over 3 years ago

TI__Guru 52465 points

Yes, EMU2, EMU3, EMU4 are not required. KEY is optional - just helps ensure an external emulator cable is oriented correctly.

0 kazuhiro kitamura over 3 years ago

Prodigy 10 points

Should I use 3.3V or 1.8V?

0 kazuhiro kitamura over 3 years ago in reply to kazuhiro kitamura

Prodigy 10 points

>Should I use 3.3V or 1.8V?

=>Should I use 3.3V or 1.8V for VTREF?

+1 Robert Eschler over 3 years ago in reply to kazuhiro kitamura

TI__Guru 52465 points

VTREF is to set the voltage of the emulators internal buffers. It should match your designs IO levels for the JTAG signals. What voltage is your IO operating at for the DR821 JTAG (see DRA821 data manual to see what VDDSHVx power rails the JTAG signals are assigned). Most customers use 3.3V, but DRA821 supports either. Just note all IO assigned to a specific VDDSHVx power rails operate at that IO voltage.

0 kazuhiro kitamura over 3 years ago in reply to Robert Eschler

Prodigy 10 points

When i use XDS110 i will use HDR 2X10 2.54MM PITCH CONNECTOR.

Is my understanding correct?

0 Robert Eschler over 3 years ago in reply to kazuhiro kitamura

TI__Guru 52465 points

The XDS110 webpage describes the default connector it supports, as well as the adapters it comes with.

https://www.ti.com/tool/TMDSEMU110-U
