DRA725: SPL: failed to boot from all boot devices (actually from SD card)

BTW, I also check this post, https://e2e.ti.com/support/processors-group/processors/f/processors-forum/799637/linux-am5718-spl-failed-to-boot-from-all-boot-devices and it doesn't works for me. The "SPL / TPL  ---> [ ]   Only use malloc_simple functions" was disabled in our .config.

Kevin,

My opinion, please check these items first

1. Does EVB has the same issue on class10 SDCARD?

2. Class 10 SD Card (Ultra High Speed )may works in high speed mode, please check 1.8V UHS voltage system.

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1167723/tda4vm-q1-can-we-skip-gpio_usd_pwr_en-and-always-feed-3-3v-to-sd-card

Gibbs

Gibbs, this issue may be crystal changing from 19.2MHz to 20MHz related. We could boot from class10 SDCARD with crystal 19.2MHz, but it failed after changing to 20.0MHz crystal.

1. We don't have EVM.

2. I do the following changes, it is still not bootable.

diff --git a/board-support/u-boot/arch/arm/dts/dra72-evm-common.dtsi b/board-support/u-boot/arch/arm/dts/dra72-evm-common.dtsi
index c59edf9..ab1baa1 100644
--- a/board-support/u-boot/arch/arm/dts/dra72-evm-common.dtsi
+++ b/board-support/u-boot/arch/arm/dts/dra72-evm-common.dtsi
@@ -37,6 +37,15 @@
                enable-active-high;
                gpio = <&pcf_gpio_21 5 GPIO_ACTIVE_HIGH>;
        };
+       evm_1v8: fixedregulator-1v8 {
+               compatible = "regulator-fixed";
+               regulator-name = "evm_1v8";
+               //vin-supply = <&evm_3v3_sd>;
+               regulator-min-microvolt = <1800000>;
+               regulator-max-microvolt = <1800000>;
+               regulator-always-on;
+               regulator-boot-on;
+       };

        extcon_usb1: extcon_usb1 {
                compatible = "linux,extcon-usb-gpio";
@@ -565,23 +574,18 @@
        status = "okay";
        pinctrl-names = "default";
        pinctrl-0 = <&mmc1_pins_default>;
-       vmmc-supply = <&evm_3v3_sd>;
-       vmmc_aux-supply = <&ldo1_reg>;
+       vmmc-supply = <&evm_1v8>;
+       //vmmc_aux-supply = <&ldo1_reg>;
        bus-width = <4>;
        /*
         * SDCD signal is not being used here - using the fact that GPIO mode
         * is a viable alternative
         */
        cd-gpios = <&gpio6 27 GPIO_ACTIVE_LOW>;
-       max-frequency = <192000000>;
-       pinctrl-names = "default", "hs", "sdr12", "sdr25", "sdr50", "ddr50", "sdr104";
+       max-frequency = <200000000>;
+       pinctrl-names = "default", "hs";
        pinctrl-0 = <&mmc1_pins_default>;
        pinctrl-1 = <&mmc1_pins_hs>;
-       pinctrl-2 = <&mmc1_pins_sdr12>;
-       pinctrl-3 = <&mmc1_pins_sdr25>;
-       pinctrl-4 = <&mmc1_pins_sdr50>;
-       pinctrl-5 = <&mmc1_pins_ddr50>;
-       pinctrl-6 = <&mmc1_pins_sdr104 &mmc1_iodelay_sdr104_conf>;
 };

diff --git a/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig b/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig
index 9c13366..f4161fc 100644
--- a/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig
+++ b/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig
@@ -46,3 +46,6 @@ CONFIG_OF_BOARD_SETUP=y
 CONFIG_DRA7_DSPEVE_OPP_HIGH=y
 CONFIG_DRA7_IVA_OPP_HIGH=y
 CONFIG_DRA7_GPU_OPP_HIGH=y
+CONFIG_OF_CONTROL=y
+CONFIG_OF_EMBED=y
+CONFIG_DEFAULT_DEVICE_TREE="dra72-evm"

Do you have any idea, thanks!

Hi Gibbs Gibbs Shih , could you help on this, thanks!

Hi, Kevin

I'm a little bit confuse your question, follow this thread which you post before, I try to clarify your issue to check relationship again

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1168532/dra725-how-to-change-crystal-clock-frequency-from-19-2-mhz-to-20-0mhz/4403261#4403261

The story should be like this.

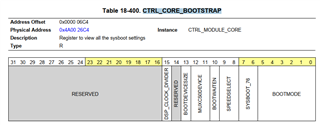

Step1. If crystal (OSC0 crystal) = 19.2Mhz, SD Class 10 & Class 4 BOOT well? (y/n)

Step2. And then, You modify crystal (OSC0 crystal) from 19.2MHz to 20MHz on you "customized board"

Step3. After rework crystal (OSC0 crystal) = 20.0Mhz,  you found SD class 10 boot fail, how about class 4 SD?

Step4 if you copy the boot file to on board eMMC, and then switch to eMMC boot, boot is fine even (OSC0 crystal) = 20.0Mhz)? (y/n)

My opinion, SD boot fail just appearance, How to modify software code to match (OSC0 crystal) = 20.0Mhz is root cause problem.(y/n)

max-frequency = <192000000>, "max-frequency" should be max "fop(clk)", not OSC0 crystal frequency, please check sheet p.306, SDR1041,

UHS SD should be work fine. but for MMC1, The max frequency should be keep 192MHz

pinctrl-names should be keep :

pinctrl-names = "default", "hs", "sdr12", "sdr25", "sdr50", "ddr50", "sdr104";

Hi, Suman Anna

May you also join this discussion to help me solve this problem.

Many Thanks

Gibbs

Hi Gibbs,

Sorry for making you confused.

Step1. If crystal (OSC0 crystal) = 19.2Mhz, SD Class 10 & Class 4 BOOT well?

[Kevin] yes.

Step3. After rework crystal (OSC0 crystal) = 20.0Mhz,  you found SD class 10 boot fail, how about class 4 SD?

[Kevin] class 4 SD boot fine.

Step4 if you copy the boot file to on board eMMC, and then switch to eMMC boot, boot is fine even (OSC0 crystal) = 20.0Mhz)?

[Kevin] yes, the SOC with OSC0 crystal(20MHz) boot fine from eMMC.

My opinion, SD boot fail just appearance, How to modify software code to match (OSC0 crystal) = 20.0Mhz is root cause problem.

[Kevin] I'm not pretty sure, because let's compare test1 with test2 and it seems like OSC(19.2MHz -> 20MHz) doesn't matter. But let's compare test3 with test4 and it seems like OSC does matter.I make a test matrix with the same uboot(w/o compiled with dts).

Gibbs, I have questions for you

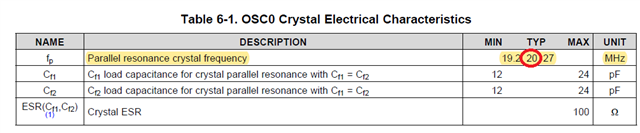

1. what version of dra72x datasheet are you watching, I'm watching the version https://www.ti.com/lit/ug/spruic2d/spruic2d.pdf ?

2. our original uboot compiled is without "CONFIG_OF_CONTROL=y" in .config, is it meaning the compiled uboot without dts? I'm not familiar with uboot, could you tell me what the difference is between compiling uboot with dts and w/o dts?

3. even I build uboot with original dts, the mmc speed is still HS(MMC_TIMING_SD_HS), is it correct?

I add debug log in mmc_startup and enable CONFIG_OF_CONTROL as follows:

diff --git a/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig b/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig
index 9c13366..f4161fc 100644
--- a/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig
+++ b/board-support/u-boot/configs/dra7xx_evm_nodt_defconfig
@@ -46,3 +46,6 @@ CONFIG_OF_BOARD_SETUP=y
 CONFIG_DRA7_DSPEVE_OPP_HIGH=y
 CONFIG_DRA7_IVA_OPP_HIGH=y
 CONFIG_DRA7_GPU_OPP_HIGH=y
+CONFIG_OF_CONTROL=y
+CONFIG_OF_EMBED=y
+CONFIG_DEFAULT_DEVICE_TREE="dra72-evm"
diff --git a/board-support/u-boot/drivers/mmc/mmc.c b/board-support/u-boot/drivers/mmc/mmc.c
index 0670b16..b8c60f8 100644
--- a/board-support/u-boot/drivers/mmc/mmc.c
+++ b/board-support/u-boot/drivers/mmc/mmc.c
@@ -1934,6 +1934,7 @@ static int mmc_startup(struct mmc *mmc)
 #if !defined(CONFIG_SPL_BUILD) || defined(CONFIG_SPL_LIBDISK_SUPPORT)
        part_init(&mmc->block_dev);
 #endif
+       printf("%s %d, kevin timing %u\n",__func__,__LINE__,mmc->timing);

        return 0;
 }

U-Boot SPL 2016.05 (Nov 15 2022 - 23:47:28)
DRA722-GP ES2.1
** First descriptor is NOT a primary desc on 0:1 **
mmc_startup 1937, kevin timing 2
MMC Device 1 not found
*** Warning - No MMC card found, using default environment

Trying to boot from MMC1
MMC Device 1 not found
*** Warning - No MMC card found, using default environment

** Partition 1 not valid on device 0 **
spl_register_fat_device: fat register err - -1
spl_load_image_fat: error reading image u-boot.img, err - -1
MMC Device 1 not found
*** Warning - No MMC card found, using default environment

spl: no partition table found
SPL: failed to boot from all boot devices
### ERROR ### Please RESET the board ###
