AM6442: BSDL file issue

Ethan,

Thanks for the query , I am routing your query to experts from concerned team, please expect delays in Answer as many members in US Team are on spring break.

Regards

Anshu

Hello Anshu

Any update?

Hello Ethan,

Thank you.

The BSDL file on TI.com should be the updated one.

Can you please help us understand the tool and the version that you are using.

Regards,

Sreenivasa

Hello Ethan,

Please note that i am waiting for your inputs to check internally.

Regards,

Sreenivasa

Hi Sreenivasa

Customer use this tools and software provided by Teradyne.

Hello Ethan,

Thank you for the information.

Let me check internally and update you.

Regards,

Sreenivasa

Hi Sreenivasa

Any update？

Hello Ethan,

Thank you for the follow-up.

I am checking with the expert and will update you when i hear back from them.

Regards,

Sreenivasa

I

Hello Sreenivasa

Wish you good day!

This issue is pending for a week, please help me to confirm it as soon as possible.

BR

Ethan

Hello Ethan,

Noted.

This has to go through multiple teams and takes time.

Will follow-up and update.

Regards,

Sreenivasa

Hello Ethan,

Below are the inputs from the expert and this issue seems tool specific.

I searched in our EDA database at TI but am not able to find the tool used internally.

One suggestion for the customer is to check with Teradyne on what is the latest version available and download it to check if it reads in our BSDL model correctly.

I tried searching online but am unable to find the latest version of the tool that Teradyne has available for download.

Regards,

Sreenivasa

Hello Ethan,

Based on you request i have unlocked the thread.

Please add the queries or updates you have for me to follow-up.

Regards,

Sreenivasa

Thanks Sreenivasa!

I want to know do we have any validation results for BSDL feature of AM64x?

Hello Ethan,

Thank you.

I assume you are asking if the BSDL file provided on TI.com has been tested.

Regards,

Sreenivasa

Hi Sreenivasa

You're right

Hello Ethan,

Thank you.

I will follow-up and update you.

Regards,

Sreenivasa

Hello Sreenivasa

Any update?

Hello Ethan,

Thank you for following.

I have not heard from the simulation team.

I will follow-up and update.

Regards,

Sreenivasa

Hello Sreenivasa

Sorry for bother again.

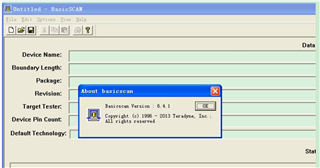

In past week, for this issue, customer checked the Teradyne tool which their ICT vendor is using is as below screenshot, and they think it is the latest version.

And, the most important thing is that,  they try to find another Teradyne development environment used by a customer's experienced develop engineer( the tool version is 4.0, not the latest version as above), and this guy got the same problem as ICT vendor saw, which once communicated with you.

And this senior engineer also suggests to check if BSDL files have some problem. But it is very difficult for end user to identify where the problem is.

So again, can you help to double check if original BSDL files is correct?

Hello Ethan,

Thank you.

I believe the BSDL model was verified but ill check.

Can you please request customer to open the AM625 or any other Sitara processor model for a quick check.

Regards,

Sreenivasa

sprm811.zip

Hello Ethan,

Could you please request customer to do a quick check of the attached BSDL model.

Regards,

Sreenivasa

Hello Sreenivasa

Due to customer's tight production arrangement in their factory, they just have time to test with your new file this morning.

After generating new test codes, they try the BSCN test, and the good news is that they can enter BSCN mode, and can read device ID as attached BSDL describes.

  attribute IDCODE_REGISTER     of AM64 : entity is

      "0001" &                            -- Version Number

      "1011101100111000" &                -- Part Number

      "00000010111" &                     -- Manufacturer ID

      "1";                                -- Required by IEEE

But for other tests, they still get fails as in attached picture.

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/AM64_5F00_AM243.bsm

Customer can’t take any debug actions now, could you please give me more comments？

Hello Ethan,

Thank you.

Other customers were able to use the attached BSDL file.

Errors seems to be mentioning that the TAP pin is open.

Can you please confirm with customer if the JTAG interface has the required terminations as recommended in the data sheet pin connectivity table.

Regards,

Sreenivasa

Hello Ethan,

Could you please check with customer if they are following the below recommendations.

Data Sheet reference

Table 6-80. Connectivity Requirements

Regards,

Sreenivasa
