AM6442: questions of linker.cmd file

Part Number: AM6442

Hi, I'm using GPEVM-AM64 and porting to examples of Hello World, hsr_mii and enet_lwip_cpsw on A53/R5_0_0/R5_1_1 respectively.

below are linker.cmd files

By using .rprc files, I made .appimage file and download to evm board.

linker.cmd of [A53 Core]


ENTRY(_c_int00)

__TI_STACK_SIZE = 65536;
__TI_HEAP_SIZE = 131072;

MEMORY
{
    DDR : ORIGIN =  0x80000000, LENGTH = 0x2000000

    /* shared memory segments */
    /* On A53,
     * - make sure there is a MMU entry which maps below regions as non-cache
     */
    USER_SHM_MEM            : ORIGIN = 0x701D0000, LENGTH = 0x80
    LOG_SHM_MEM             : ORIGIN = 0x701D0000 + 0x80, LENGTH = 0x00004000 - 0x80
    RTOS_NORTOS_IPC_SHM_MEM : ORIGIN = 0x701D4000, LENGTH = 0x0000C000
}

SECTIONS {

    .vecs : {} > DDR
    .text : {} > DDR
    .rodata : {} > DDR

    .data : ALIGN (8) {
        __data_load__ = LOADADDR (.data);
        __data_start__ = .;
        *(.data)
        *(.data*)
        . = ALIGN (8);
        __data_end__ = .;
    } > DDR

    /* General purpose user shared memory, used in some examples */
    .bss.user_shared_mem (NOLOAD) : { KEEP(*(.bss.user_shared_mem)) } > USER_SHM_MEM
    /* this is used when Debug log's to shared memory are enabled, else this is not used */
    .bss.log_shared_mem  (NOLOAD) : { KEEP(*(.bss.log_shared_mem)) } > LOG_SHM_MEM
    /* this is used only when IPC RPMessage is enabled, else this is not used */
    .bss.ipc_vring_mem   (NOLOAD) : { KEEP(*(.bss.ipc_vring_mem)) } > RTOS_NORTOS_IPC_SHM_MEM

    .bss : {
        __bss_start__ = .;
        *(.bss)
        *(.bss.*)
        . = ALIGN (8);
        *(COMMON)
        __bss_end__ = .;
        . = ALIGN (8);
    } > DDR

    .heap (NOLOAD) : {
        __heap_start__ = .;
        KEEP(*(.heap))
        . = . + __TI_HEAP_SIZE;
        __heap_end__ = .;
    } > DDR

    .stack (NOLOAD) : ALIGN(16) {
        __TI_STACK_BASE = .;
        KEEP(*(.stack))
        . = . + __TI_STACK_SIZE;
    } > DDR

}

linker.cmd of [R5_0_0]


/* This is the stack that is used by code running within main()
 * In case of NORTOS,
 * - This means all the code outside of ISR uses this stack
 * In case of FreeRTOS
 * - This means all the code until vTaskStartScheduler() is called in main()
 *   uses this stack.
 * - After vTaskStartScheduler() each task created in FreeRTOS has its own stack
 */
--stack_size=32768
/* This is the heap size for malloc() API in NORTOS and FreeRTOS
 * This is also the heap used by pvPortMalloc in FreeRTOS
 */
--heap_size=65536
-e_vectors  /* This is the entry of the application, _vector MUST be plabed starting address 0x0 */

/* This is the size of stack when R5 is in IRQ mode
 * In NORTOS,
 * - Here interrupt nesting is enabled
 * - This is the stack used by ISRs registered as type IRQ
 * In FreeRTOS,
 * - Here interrupt nesting is disabled
 * - This is stack that is used initally when a IRQ is received
 * - But then the mode is switched to SVC mode and SVC stack is used for all user ISR callbacks
 * - Hence in FreeRTOS, IRQ stack size is less and SVC stack size is more
 */
__IRQ_STACK_SIZE = 256;
/* This is the size of stack when R5 is in IRQ mode
 * - In both NORTOS and FreeRTOS nesting is disabled for FIQ
 */
__FIQ_STACK_SIZE = 256;
__SVC_STACK_SIZE = 4096; /* This is the size of stack when R5 is in SVC mode */
__ABORT_STACK_SIZE = 256;  /* This is the size of stack when R5 is in ABORT mode */
__UNDEFINED_STACK_SIZE = 256;  /* This is the size of stack when R5 is in UNDEF mode */

SECTIONS
{
    /* This has the R5F entry point and vector table, this MUST be at 0x0 */
    .vectors:{} palign(8) > R5F_VECS

    /* This has the R5F boot code until MPU is enabled,  this MUST be at a address < 0x80000000
     * i.e this cannot be placed in DDR
     */
    GROUP {
        .text.hwi: palign(8)
        .text.cache: palign(8)
        .text.mpu: palign(8)
        .text.boot: palign(8)
        .text:abort: palign(8) /* this helps in loading symbols when using XIP mode */
    } > MSRAM

    /* This is rest of code. This can be placed in DDR if DDR is available and needed */
    GROUP {
        .text:   {} palign(8)   /* This is where code resides */
        .rodata: {} palign(8)   /* This is where const's go */
    } > MSRAM

    /* This is rest of initialized data. This can be placed in DDR if DDR is available and needed */
    GROUP {
        .data:   {} palign(8)   /* This is where initialized globals and static go */
    } > MSRAM

    /* This is rest of uninitialized data. This can be placed in DDR if DDR is available and needed */
    GROUP {
        .bss:    {} palign(8)   /* This is where uninitialized globals go */
        RUN_START(__BSS_START)
        RUN_END(__BSS_END)
        .sysmem: {} palign(8)   /* This is where the malloc heap goes */
        .stack:  {} palign(8)   /* This is where the main() stack goes */
    } > MSRAM

    /* This is where the stacks for different R5F modes go */
    GROUP {
        .irqstack: {. = . + __IRQ_STACK_SIZE;} align(8)
        RUN_START(__IRQ_STACK_START)
        RUN_END(__IRQ_STACK_END)
        .fiqstack: {. = . + __FIQ_STACK_SIZE;} align(8)
        RUN_START(__FIQ_STACK_START)
        RUN_END(__FIQ_STACK_END)
        .svcstack: {. = . + __SVC_STACK_SIZE;} align(8)
        RUN_START(__SVC_STACK_START)
        RUN_END(__SVC_STACK_END)
        .abortstack: {. = . + __ABORT_STACK_SIZE;} align(8)
        RUN_START(__ABORT_STACK_START)
        RUN_END(__ABORT_STACK_END)
        .undefinedstack: {. = . + __UNDEFINED_STACK_SIZE;} align(8)
        RUN_START(__UNDEFINED_STACK_START)
        RUN_END(__UNDEFINED_STACK_END)
    } > MSRAM

    /* Sections needed for C++ projects */
    GROUP {
        .ARM.exidx:  {} palign(8)   /* Needed for C++ exception handling */
        .init_array: {} palign(8)   /* Contains function pointers called before main */
        .fini_array: {} palign(8)   /* Contains function pointers called after main */
    } > MSRAM

    /* Packet buffer memory used by ICCS */
    .bss.icss_emac_pktbuf_mem (NOLOAD): {} > ICSS_PKT_BUF_MEM
    /* General purpose user shared memory, used in some examples */
    .bss.user_shared_mem (NOLOAD) : {} > USER_SHM_MEM
    /* this is used when Debug log's to shared memory are enabled, else this is not used */
    .bss.log_shared_mem  (NOLOAD) : {} > LOG_SHM_MEM
    /* this is used only when IPC RPMessage is enabled, else this is not used */
    .bss.ipc_vring_mem   (NOLOAD) : {} > RTOS_NORTOS_IPC_SHM_MEM
    /* General purpose non cacheable memory, used in some examples */
    .bss.nocache (NOLOAD) : {} > NON_CACHE_MEM
}

/*
NOTE: Below memory is reserved for DMSC usage
 - During Boot till security handoff is complete
   0x701E0000 - 0x701FFFFF (128KB)
 - After "Security Handoff" is complete (i.e at run time)
   0x701F4000 - 0x701FFFFF (48KB)

 Security handoff is complete when this message is sent to the DMSC,
   TISCI_MSG_SEC_HANDOVER

 This should be sent once all cores are loaded and all application
 specific firewall calls are setup.
*/

MEMORY
{
    R5F_VECS  : ORIGIN = 0x00000000 , LENGTH = 0x00000040
    R5F_TCMA  : ORIGIN = 0x00000040 , LENGTH = 0x00007FC0
    R5F_TCMB0 : ORIGIN = 0x41010000 , LENGTH = 0x00008000

    /* shared memories that is used between ICCS and this core. MARK as non-cache or cache+sharable */
    ICSS_PKT_BUF_MEM        : ORIGIN = 0x70000000, LENGTH = 0x00010000

    /* memory segment used to hold CPU specific non-cached data, MAKE to add a MPU entry to mark this as non-cached */
    NON_CACHE_MEM : ORIGIN = 0x70060000 , LENGTH = 0x8000

    /* when using multi-core application's i.e more than one R5F/M4F active, make sure
     * this memory does not overlap with other R5F's
     */
    MSRAM     : ORIGIN = 0x70080000 , LENGTH = 0x00120000

    /* This section can be used to put XIP section of the application in flash, make sure this does not overlap with
     * other CPUs. Also make sure to add a MPU entry for this section and mark it as cached and code executable
     */
    FLASH     : ORIGIN = 0x60100000 , LENGTH = 0x80000

    /* shared memory segments */
    /* On R5F,
     * - make sure there is a MPU entry which maps below regions as non-cache
     */
    USER_SHM_MEM            : ORIGIN = 0x701D0000, LENGTH = 0x80
    LOG_SHM_MEM             : ORIGIN = 0x701D0000 + 0x80, LENGTH = 0x00004000 - 0x80
    RTOS_NORTOS_IPC_SHM_MEM : ORIGIN = 0x701D4000, LENGTH = 0x0000C000
}

linker cmd of [R5_1_1]

#include "ti_enet_config.h"

/* This is the stack that is used by code running within main()
 * In case of NORTOS,
 * - This means all the code outside of ISR uses this stack
 * In case of FreeRTOS
 * - This means all the code until vTaskStartScheduler() is called in main()
 *   uses this stack.
 * - After vTaskStartScheduler() each task created in FreeRTOS has its own stack
 */
--stack_size=8192
/* This is the heap size for malloc() API in NORTOS and FreeRTOS
 * This is also the heap used by pvPortMalloc in FreeRTOS
 */
--heap_size=34000
-e_vectors  /* This is the entry of the application, _vector MUST be plabed starting address 0x0 */

/* This is the size of stack when R5 is in IRQ mode
 * In NORTOS,
 * - Here interrupt nesting is disabled as of now
 * - This is the stack used by ISRs registered as type IRQ
 * In FreeRTOS,
 * - Here interrupt nesting is enabled
 * - This is stack that is used initally when a IRQ is received
 * - But then the mode is switched to SVC mode and SVC stack is used for all user ISR callbacks
 * - Hence in FreeRTOS, IRQ stack size is less and SVC stack size is more
 */
__IRQ_STACK_SIZE = 256;
/* This is the size of stack when R5 is in IRQ mode
 * - In both NORTOS and FreeRTOS nesting is disabled for FIQ
 */
__FIQ_STACK_SIZE = 256;
__SVC_STACK_SIZE = 4096; /* This is the size of stack when R5 is in SVC mode */
__ABORT_STACK_SIZE = 256;  /* This is the size of stack when R5 is in ABORT mode */
__UNDEFINED_STACK_SIZE = 256;  /* This is the size of stack when R5 is in UNDEF mode */

SECTIONS
{
    /* This has the R5F entry point and vector table, this MUST be at 0x0 */
    .vectors:{} palign(8) > R5F_VECS

    /* This has the R5F boot code until MPU is enabled,  this MUST be at a address < 0x80000000
     * i.e this cannot be placed in DDR
     */
    GROUP {
        .text.hwi: palign(8)
        .text.cache: palign(8)
        .text.mpu: palign(8)
        .text.boot: palign(8)
        .text:abort: palign(8) /* this helps in loading symbols when using XIP mode */
    } > MSRAM

    /* This is rest of code. This can be placed in DDR if DDR is available and needed */
    GROUP {
        .text:   {} palign(8)   /* This is where code resides */
        .rodata: {} palign(8)   /* This is where const's go */
    } > DDR

    /* This is rest of initialized data. This can be placed in DDR if DDR is available and needed */
    GROUP {
        .data:   {} palign(8)   /* This is where initialized globals and static go */
    } > DDR

    /* This is rest of uninitialized data. This can be placed in DDR if DDR is available and needed */
    GROUP {
        .sysmem: {} palign(8)   /* This is where the malloc heap goes */
        .stack:  {} palign(8)   /* This is where the main() stack goes */
    } > DDR

    GROUP {
        .bss:    {} palign(8)   /* This is where uninitialized globals go */
        RUN_START(__BSS_START)
        RUN_END(__BSS_END)
    } > DDR

    /* This is where the stacks for different R5F modes go */
    GROUP {
        .irqstack: {. = . + __IRQ_STACK_SIZE;} align(8)
        RUN_START(__IRQ_STACK_START)
        RUN_END(__IRQ_STACK_END)
        .fiqstack: {. = . + __FIQ_STACK_SIZE;} align(8)
        RUN_START(__FIQ_STACK_START)
        RUN_END(__FIQ_STACK_END)
        .svcstack: {. = . + __SVC_STACK_SIZE;} align(8)
        RUN_START(__SVC_STACK_START)
        RUN_END(__SVC_STACK_END)
        .abortstack: {. = . + __ABORT_STACK_SIZE;} align(8)
        RUN_START(__ABORT_STACK_START)
        RUN_END(__ABORT_STACK_END)
        .undefinedstack: {. = . + __UNDEFINED_STACK_SIZE;} align(8)
        RUN_START(__UNDEFINED_STACK_START)
        RUN_END(__UNDEFINED_STACK_END)
    } > DDR

    /* General purpose user shared memory, used in some examples */
    .bss.user_shared_mem (NOLOAD) : {} > USER_SHM_MEM
    /* this is used when Debug log's to shared memory are enabled, else this is not used */
    .bss.log_shared_mem  (NOLOAD) : {} > LOG_SHM_MEM
    /* this is used only when IPC RPMessage is enabled, else this is not used */
    .bss.ipc_vring_mem   (NOLOAD) : {} > RTOS_NORTOS_IPC_SHM_MEM

    .enet_dma_mem {
        *(*ENET_DMA_DESC_MEMPOOL)
        *(*ENET_DMA_RING_MEMPOOL)
#if (ENET_SYSCFG_PKT_POOL_ENABLE == 1)
        *(*ENET_DMA_PKT_MEMPOOL)
#endif
    } (NOLOAD) {} ALIGN (128) > DDR

    .bss:ENET_DMA_OBJ_MEM (NOLOAD) {} ALIGN (128) > MSRAM
    .bss:ENET_DMA_PKT_INFO_MEMPOOL (NOLOAD) {} ALIGN (128) > MSRAM
    .bss:ENET_ICSSG_OCMC_MEM (NOLOAD) {} ALIGN (128) > MSRAM
}

/*
NOTE: Below memory is reserved for DMSC usage
 - During Boot till security handoff is complete
   0x701E0000 - 0x701FFFFF (128KB)
 - After "Security Handoff" is complete (i.e at run time)
   0x701FC000 - 0x701FFFFF (16KB)

 Security handoff is complete when this message is sent to the DMSC,
   TISCI_MSG_SEC_HANDOVER

 This should be sent once all cores are loaded and all application
 specific firewall calls are setup.
*/

MEMORY
{
    R5F_VECS  : ORIGIN = 0x00000000 , LENGTH = 0x00000040
    R5F_TCMA  : ORIGIN = 0x00000040 , LENGTH = 0x00007FC0
    R5F_TCMB0 : ORIGIN = 0x41010000 , LENGTH = 0x00008000

    /* when using multi-core application's i.e more than one R5F/M4F active, make sure
     * this memory does not overlap with other R5F's
     */
    MSRAM     : ORIGIN = 0x70140000 , LENGTH = 0x40000

    /* This section can be used to put XIP section of the application in flash, make sure this does not overlap with
     * other CPUs. Also make sure to add a MPU entry for this section and mark it as cached and code executable
     */
    FLASH     : ORIGIN = 0x60180000 , LENGTH = 0x80000
    /* when using multi-core application's i.e more than one R5F/M4F active, make sure
     * this memory does not overlap with other R5F's
     */
    DDR       : ORIGIN = 0x82000000 , LENGTH = 0x20000000
    /* shared memory segments */
    /* On R5F,
     * - make sure there is a MPU entry which maps below regions as non-cache
     */
    USER_SHM_MEM            : ORIGIN = 0x701D0000, LENGTH = 0x80
    LOG_SHM_MEM             : ORIGIN = 0x701D0000 + 0x80, LENGTH = 0x00004000 - 0x80
    RTOS_NORTOS_IPC_SHM_MEM : ORIGIN = 0x701D4000, LENGTH = 0x0000C000
}

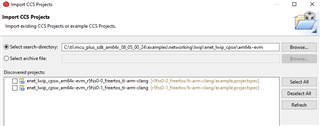

As a result, Hello world(A53) and cpsw example is working as I expected. But hsr_mii example is not work well.

on terminal console, it displayed from "Initialized PRP module" to "Mode: MII"

How to solve this problem.
