AM625: Solder mask opening

Premalatha Royappan

Intellectual 910 points

Part Number: AM625

HI

We are maintaining solder mask opening same as that of pad size to maintain minimum clearance between BGA pads. However in datasheet its recommended to have extra 2 mils of solder mask opening w.r.t bga pad size. similar is also followed in evaluation board.

Please let us know if its ok to have solder mask opening same as that of pad size.

over 2 years ago

0 Kallikuppa Sreenivasa over 2 years ago

TI__Guru**** 188529 points

Hello Premalatha Royappan

Thank you for the query.

Have you had a chance to review the EVM gerber or layout.

Can you share a picture to review.

This is an assembly related query that your assembly house could answer.

Regards,

Sreenivasa

0 Premalatha Royappan over 2 years ago in reply to Kallikuppa Sreenivasa

Intellectual 910 points

Hi Sreenivasa

EVM has an implementation of extra 2mils for solder mask opening for BGA pad as recommended in datasheet.

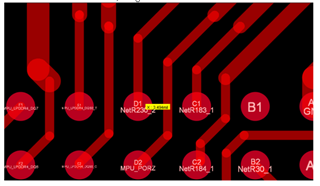

following is our implementation

We have done this to reduce risks during assembly.

0 Kallikuppa Sreenivasa over 2 years ago in reply to Premalatha Royappan

TI__Guru**** 188529 points

Hello Premalatha Royappan

Thank you for the input.

There is an SMD type or NSMD type. Not sure which one matches your design. SMD type may not be feasible given the device pitch.

The recommended approach is to check with the assembly house. The 2 mil takes care of the assembly variations.

From my side, the suggestion is to follow the datasheet recommendation.

I am checking internally if there is an alternative suggestion.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa over 2 years ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 188529 points

Hello Premalatha Royappan

Please note below.

Kallikuppa Sreenivasa said:
The recommended approach is to check with the assembly house. The 2 mil takes care of the assembly variations.

I additional to checking with the board assembly house, please be sure to check with the board fabrication house.

Regards,

Sreenivasa
